SAWMILL ASSEMBLY
Saw Head Installation
3
3-24 15doc110819 SAWMILL ASSEMBLY

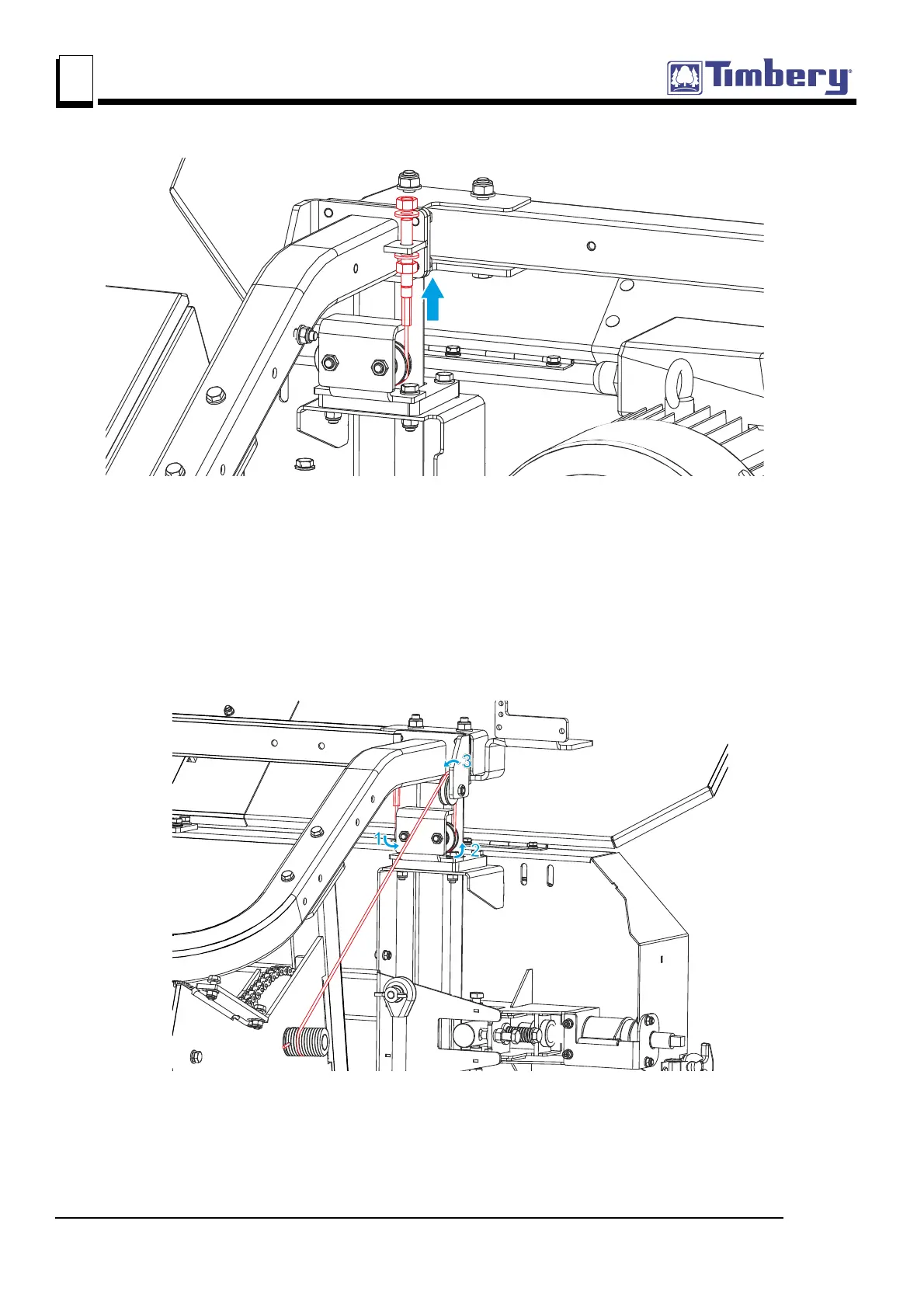

15. Remove the head-locking stop pins and use the up/down crank to lower the saw head to the
sawmill bed. With the saw head all the way down, loop the cable around the rollers in the sequence
shown in the figure below. Insert the cable end through the hole in the bushing as shown below and
secure with the set screw located in the bushing. It is important that the lift cable installed on the
rollers be tight.
Repeat for the other lift cable.
