Model: CD-36D 3.1 Filling of Beads
- 10 -

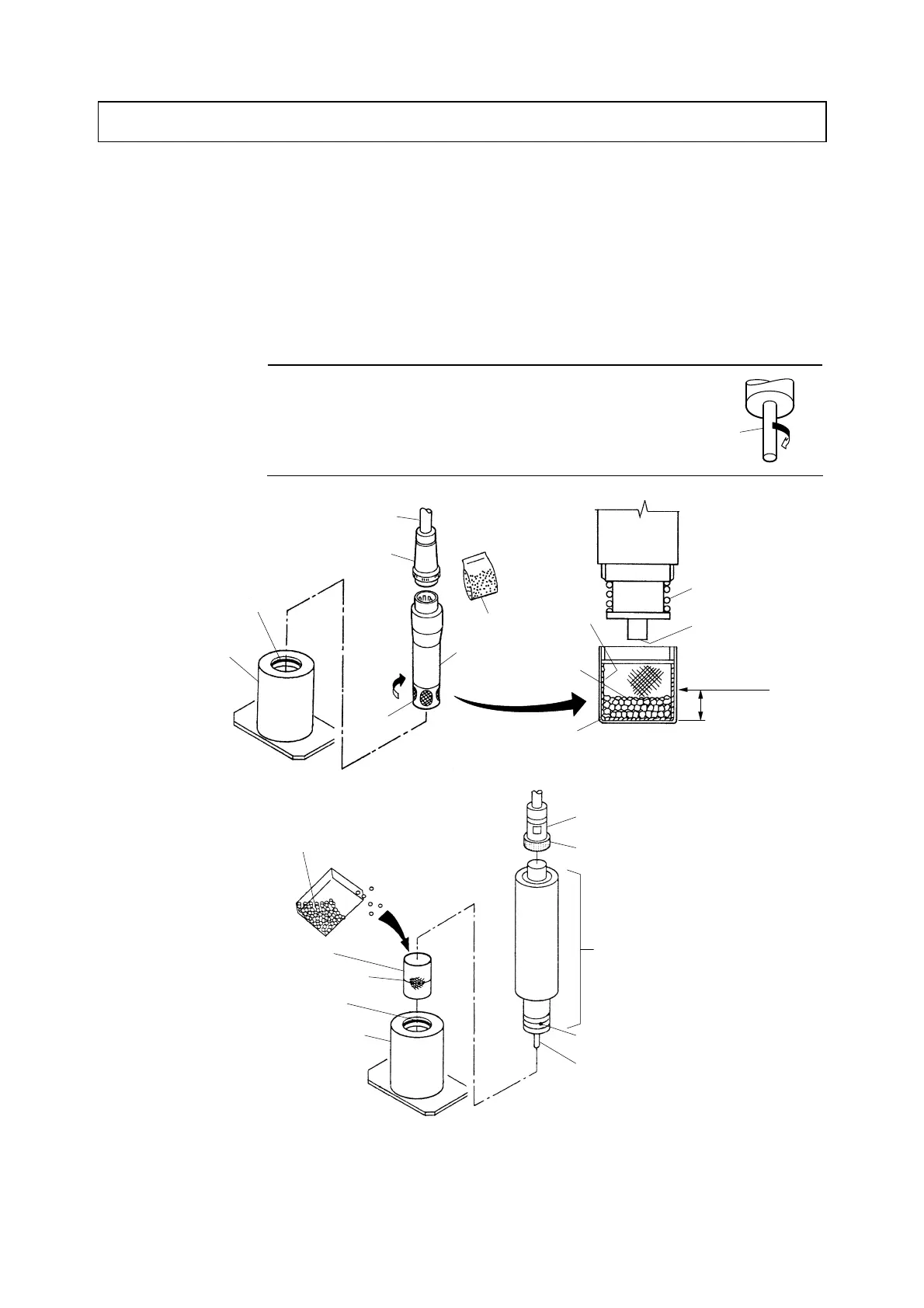

3. Preparation for Operation
3.1 Filling of Beads
① Remove the detector. ⋅⋅⋅⋅⋅⋅ Prepare the beads supplied with the detector, and withdraw the
detector vertically from the flow cell.
② Fill beads. ⋅⋅⋅⋅⋅⋅ Loosen the detector cap and remove it. Then, fill the cap with beads to the level
notch as shown in the following figure.
• For CLV series ⋅⋅⋅⋅⋅⋅ Ceramic or glass beads
• For Model: CLR-21-A ⋅⋅⋅⋅⋅⋅ Ceramic beads
【IMPORTANT】 • Turn the sensing electrode clockwise and make sure
the electrode is fixed firmly. Loosening of the
electrode may cause a failure of the product.
Sensing
electrode
Fix
Beads
Wire Mesh.
Ceramic
Beads
Cap
Counter
electrode
Sensing
Electrode
Beads Level
Notch
Beads to
be filled
Lead Wires
Connector
Detector
Rotate to
remove.
Cap
O-ring
Flow Cell
<In case of CLV series>
<In case of Model: CLR-21-A>
Beads
Cap
Level Line
O-ring
Flow Cell
Connector
Closing Ring
Detector
Counter Electrode
Sensing Electrode
Filling of Beads
