Model: CD-36D 6.1 Setting of Measuring Range
-
20
-
6. Setting of Measuring Range and Output Signal

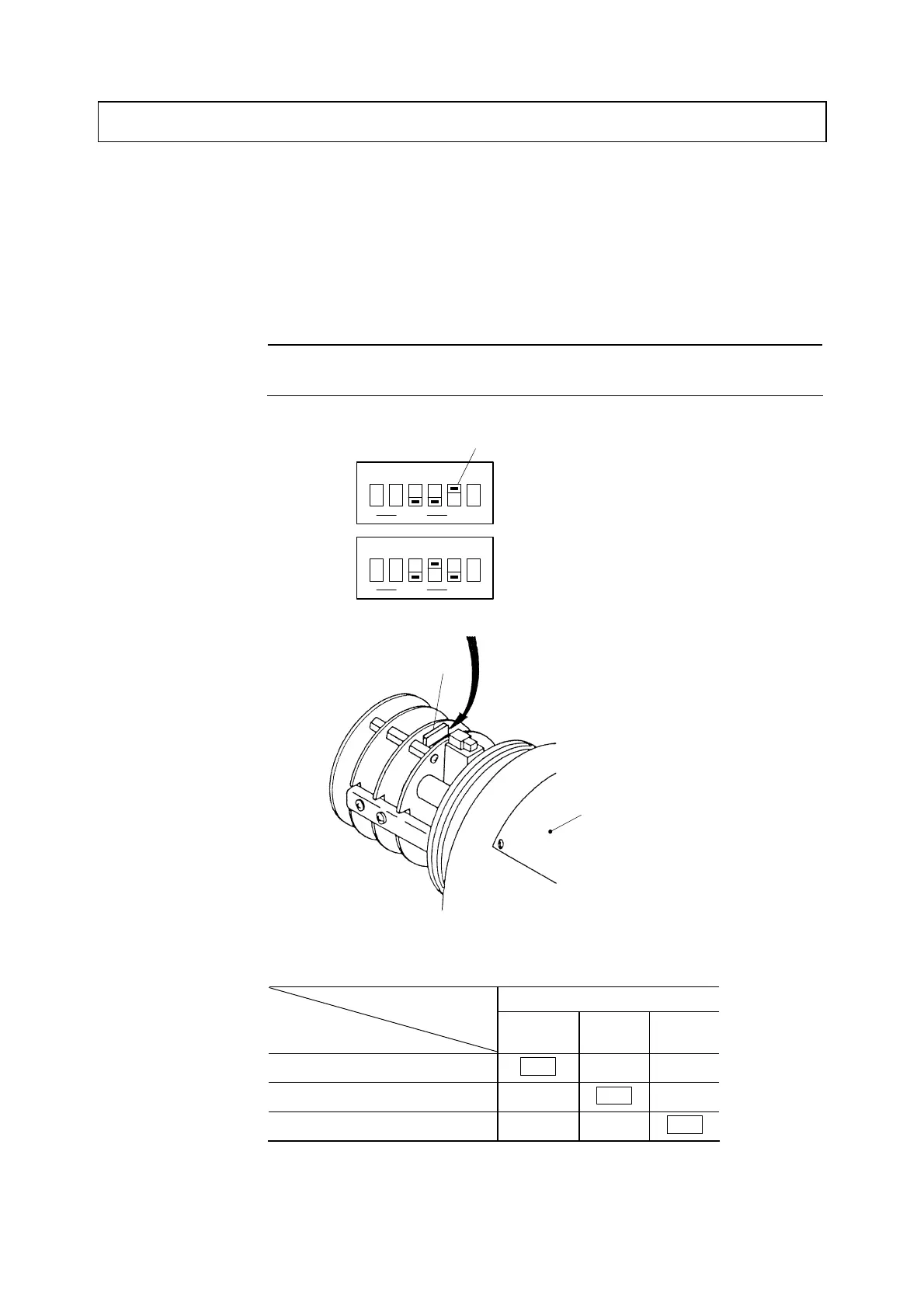

6.1 Setting of Measuring Range
Take the following procedure to change the measuring range if necessary.
① Turn off the power. ⋅⋅⋅⋅⋅⋅ Open the rear cap and turn off the power switch. (Power: OFF)
② Change the setting of the dip-switch. ⋅⋅⋅⋅⋅⋅ Open the front cap. Then, referring to the table,
“Measuring Range and Setting of Dip-switch”, shown below, set strikers “3, 4, 5” of the dip-switch
to the desired position respectively for the intended measuring range.
【IMPORTANT】 • When opening the front cap, make sure not to allow any water or rain
water to get into the Transmitter.
Dip-switch
Name Plate
Enlarged View of Dip-switch
Example of Setting
when the measuring
range is 0 to 2mg/L
Example of Setting
when the measuring
range is 0 to 3mg/L
345
OFF
345
OFF
Striker
Setting of Measuring Range
Measuring Range and Setting of Dip-switch
Dip-switch No.
Measuring Range (mg/L)
3 4 5
0 to 1
ON
OFF OFF
0 to 2 OFF
ON
OFF
0 to 3 OFF OFF
ON
To Next Page
