TOA-DKK CD-36D - (2) Flow Cell, Model: CLZ-4 (option)

Model: CD-36D 9. Option
- 41 -
3
2
1
0
0 5 10 15 20
0mg/L Cl
2
1mg/L Cl
2
2mg/L Cl
2
3mg/L Cl
2
(mg/L)
Indication of Transmitter
Electrical Conductivity of Sample (mS/m)
Electrical Conductivity Characteristic of Vibration-Type Residual Chlorine Detector

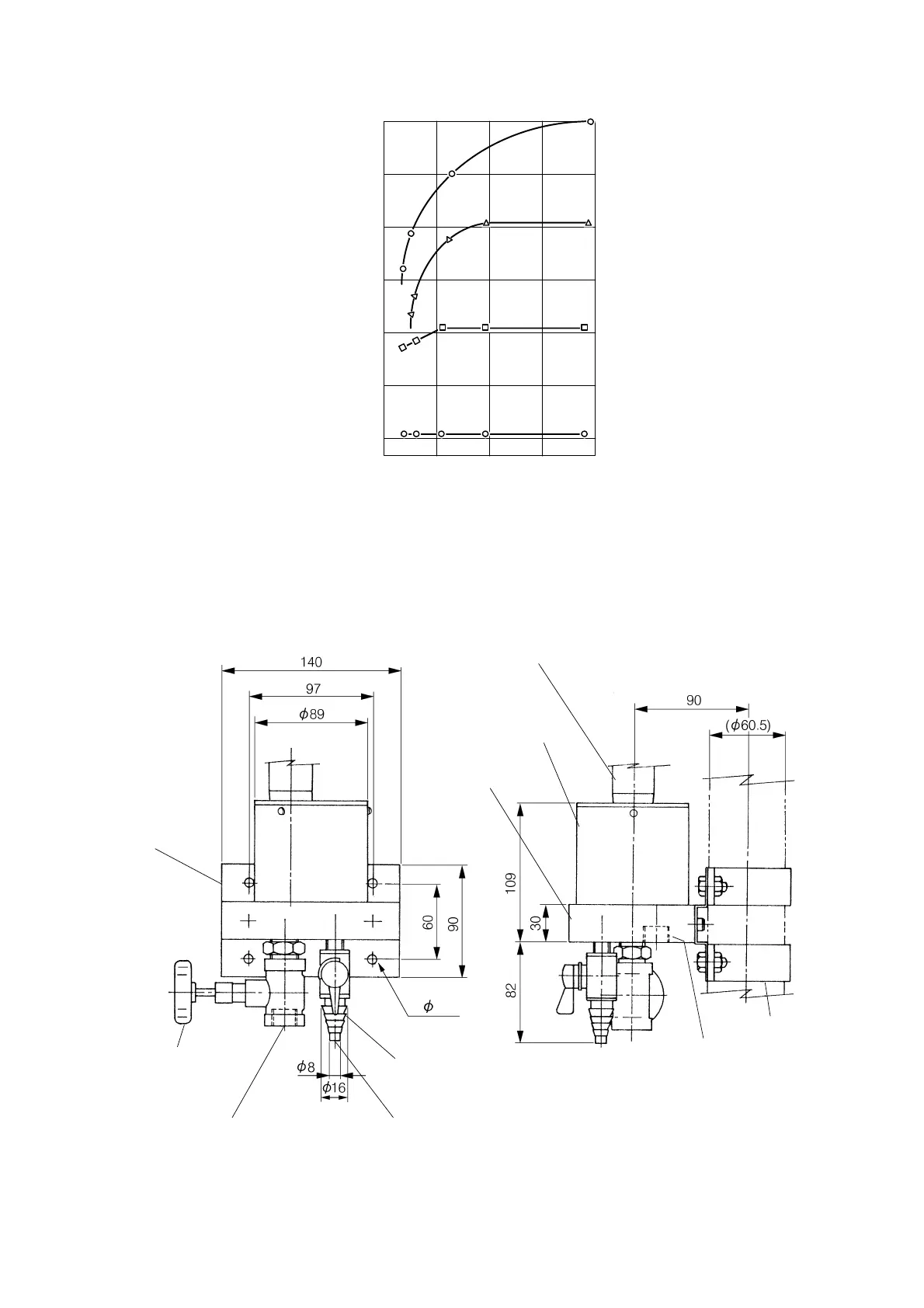

(2) Flow Cell, Model: CLZ-4
(option)
Fittings for Wall
Mounting
Flow Regulating
Valve
Sample Inlet (Rc 1/2) Sample Outlet
Sampling Valve
(for Manual Analysis)
Detector
(CLV Series or Model: CLR-21-A)
Measuring Cell
Fittings for
Measuring Cell
Drain
(Rc 1/2)
Saddle
4- 8.5
Flow Cell, Model: CLZ-4
