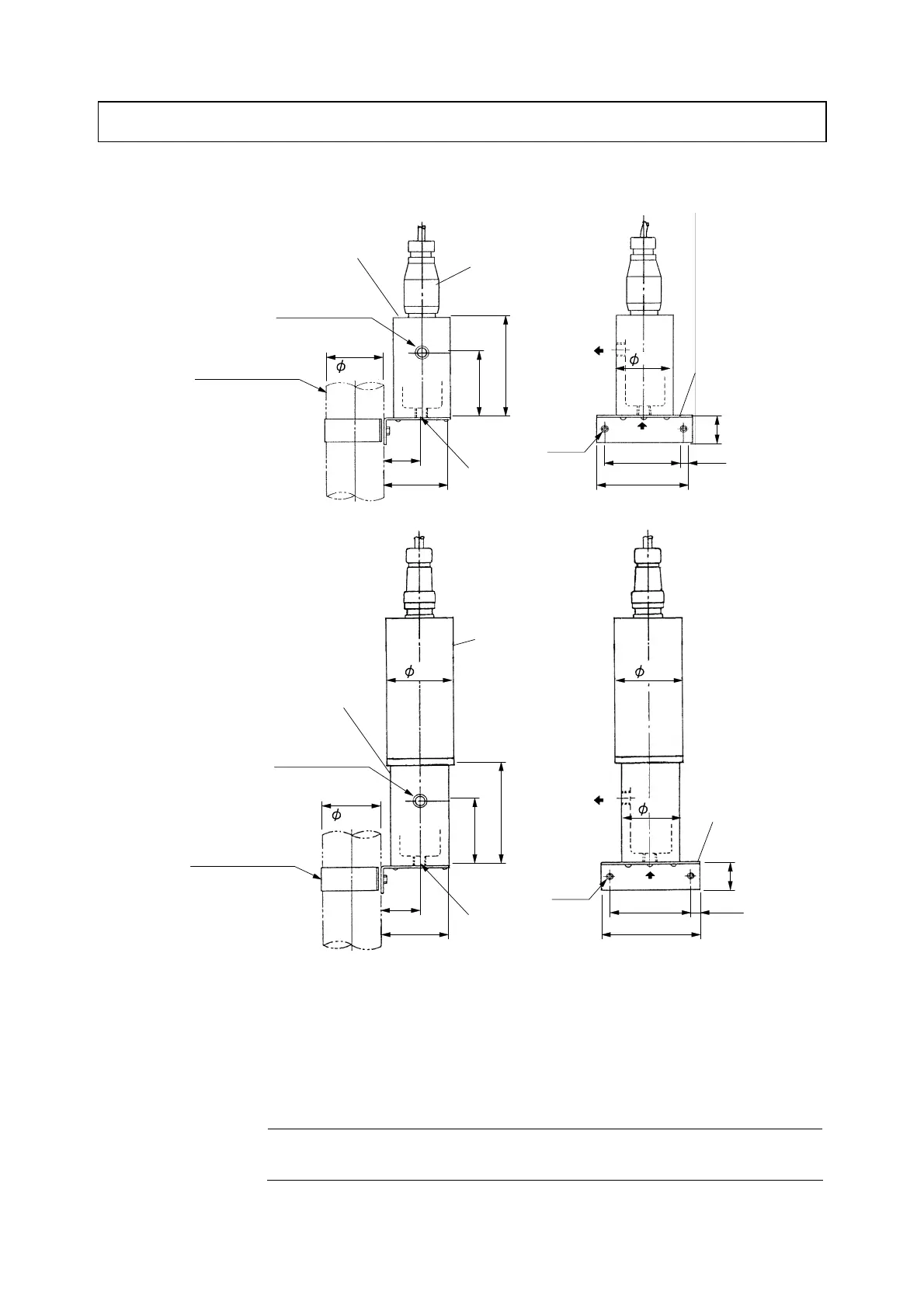

8. Installation
8.1 Installation of Flow Cell and Detector
60
85
45
75
IN
97
120
OUT
40
55
50A Pipe
( 60.5)
Detector
(CLV Series)
Fittings for
installation
2-M8
11.5
Sample Outlet
(Rc 1/4)
Saddle (for 50A)
PVC
Flow Cell
Sample Inlet
<In case of CLV Series>
11.5
60
85
45
75
IN
97
120
OUT
55
50A Pipe
( 60.5)
Detector
(Model: CLR-21-A)
Fittings for
installation
2-M8
11.5
Sample Outlet
(Rc 1/4)
Saddle (for 50A)
PVC
Flow Cell
40
63
63
<In case of Model: CLR-21-A>
11.5
Sample Inlet
Installation of Flow Cell and Detector
(a) Since the length of the lead wires is 1.5m (Standard), install the Transmitter in a position within
the reach of the lead wires.
(b) As shown in the figure above, install the Transmitter on a pole stand of 50A pipe (OD φ60.5).
(c) Insert the detector deep into the flow cell until the tip of the detector touches the bottom of the
flow cell.
【IMPORTANT】 • Protect the sensor from rain water with a cover or equal when it is
installed outdoor.
