20
7.7. Pattern Memory Recall
The setting of the unit's parameter requires a PC with dedicated software installed. However, after storing the
setting status in 16 memories, the pattern memory can be recalled from the unit even if the PC is not
connected.
When multiple units are connected, the unit set for ID No. 1 functions as the master unit. Recalling the pattern
memory from the master unit causes all other connected units to recall the same pattern memory as that of
the master unit.
Follow the procedures below to recall pattern memories:

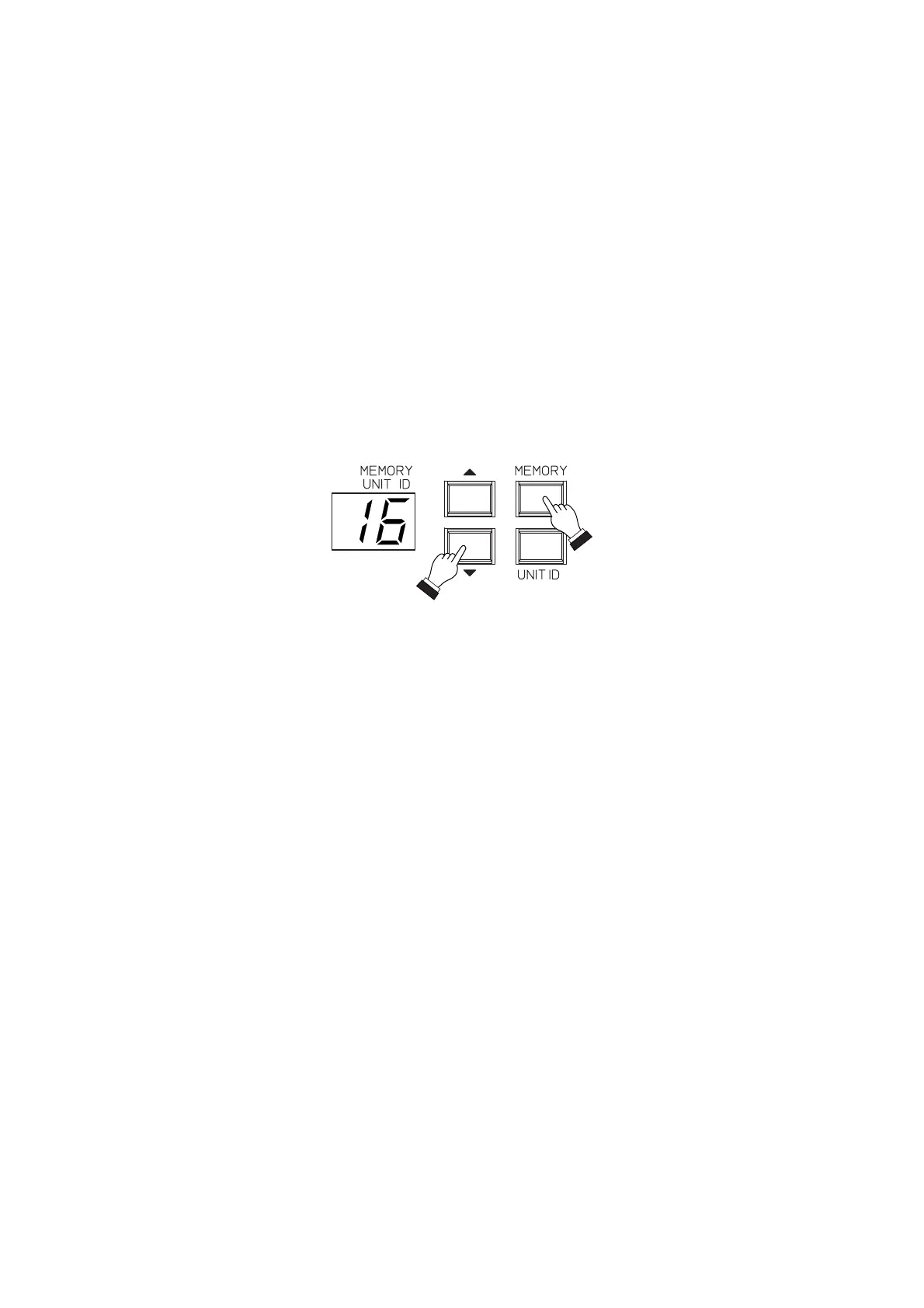

Step 1. Press the Memory Recall key.
Step 2. Press the front panel-mounted Memory/Unit ID Number selector key to select the desired memory
number shown on the display. (The display flashes slowly.)
Step 3. Press the Memory Recall key again. The display stops flashing and the pattern memory of the
displayed number is recalled.
Caution
When the unit other than the master unit is also connected to a PC using the RS-232C port, that unit's pattern
memory does not change if the memory pattern is switched at the master unit.
Tip
Besides the method mentioned above, pattern memories can be recalled from a PC or from external
equipment using the optional DQ-C01 Remote Control Module. Refer to the software instruction manual for
details.
