Toa DP-0206 Operating Instructions

14
7.3. Connections between Units
Using the unit's rear panel-mounted RS-485 port, up to 30 units can be connected. It is possible to control
such connected units with a single PC or simultaneously switch their pattern memories from the master unit.

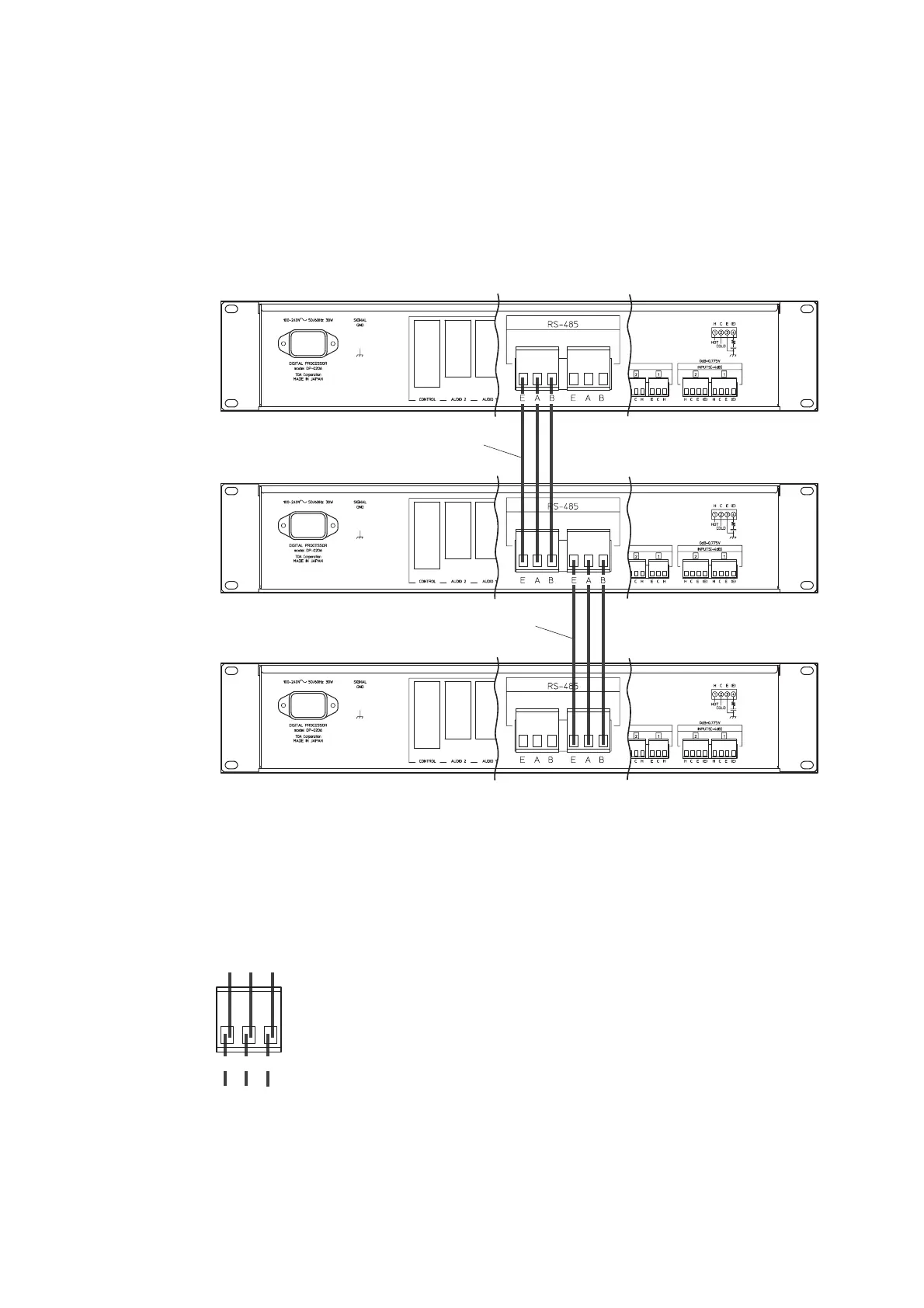

Connection method
Using 2-core shielded cables, connect the unit's RS-485 port connector to that of other unit as shown below.
(Refer to p. 22 "RS-485 Transmission Cable.")
Unit ID No. 3
Unit ID No. 2
Unit ID No. 1
(Master unit)
Shield
Shield
Tips
• Connection order has no relationship to the ID number. Connect units which are installed closest to each
other for the shortest cable routing.
• Either the left or right connector can be used.
• Connectors can also be wired as follows:
EAB
