8

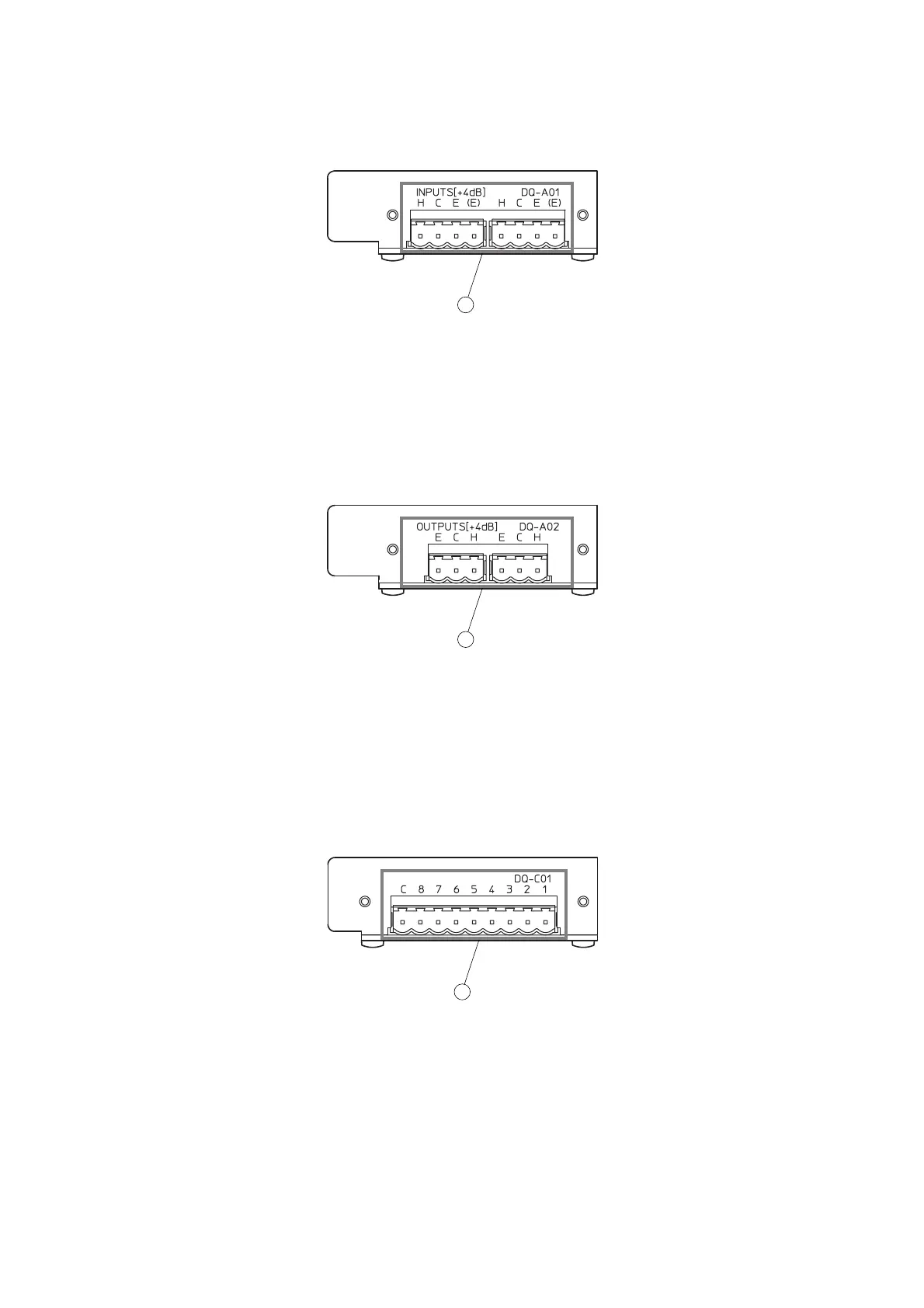

• Analog Input Module DQ-A01 (Optional product)
Expands the inputs by 2 channels.
21. Input Connector [INPUTS (+4 dB) 3 – 4 or 5 – 6]
Electronically-balanced input with a terminal block type 4-pole connector.
21
• Analog Output Module DQ-A02 (Optional product)
Expands the outputs by 2 channels.
22. Output Connector [OUTPUT (+4 dB) 7 – 8 or 9 – 10]
Electronically-balanced output with a terminal block type 3-pole connector.
22
• Remote Control Module DQ-C01 (Optional product)
Permits pattern memory recall, output volume adjustment, and output signal muting to be controlled from
external equipment.
23. Control Connector
Shorting the C (common) terminal with one of terminals No. 1 No. 8 permits remote control. Function
settings are performed by means of dedicated software.
For details, refer to the separate software instruction manual.
23
