8.12. Controlling the Remote Control Module's Terminals
This section describes how to control the DQ-C01 Remote Control Module's terminals when recalling the
pattern memory, adjusting output sound volume, or controlling output signal muting by way of connected
external equipment. (For the settings of each function, please refer to the accompanying Software Instruction
Manual.)
8.12.1. Pattern memory recall
There are two different modes for recalling the pattern memory: Direct mode and Binary mode. In Direct
mode, one of terminals 1 – 8 is shorted to the C terminal and up to 8 pattern memories can be controlled.
In Binary mode, two or more terminals can be shorted or opened to the C terminal, and up to 16 pattern
memories can be controlled.
[Direct mode]

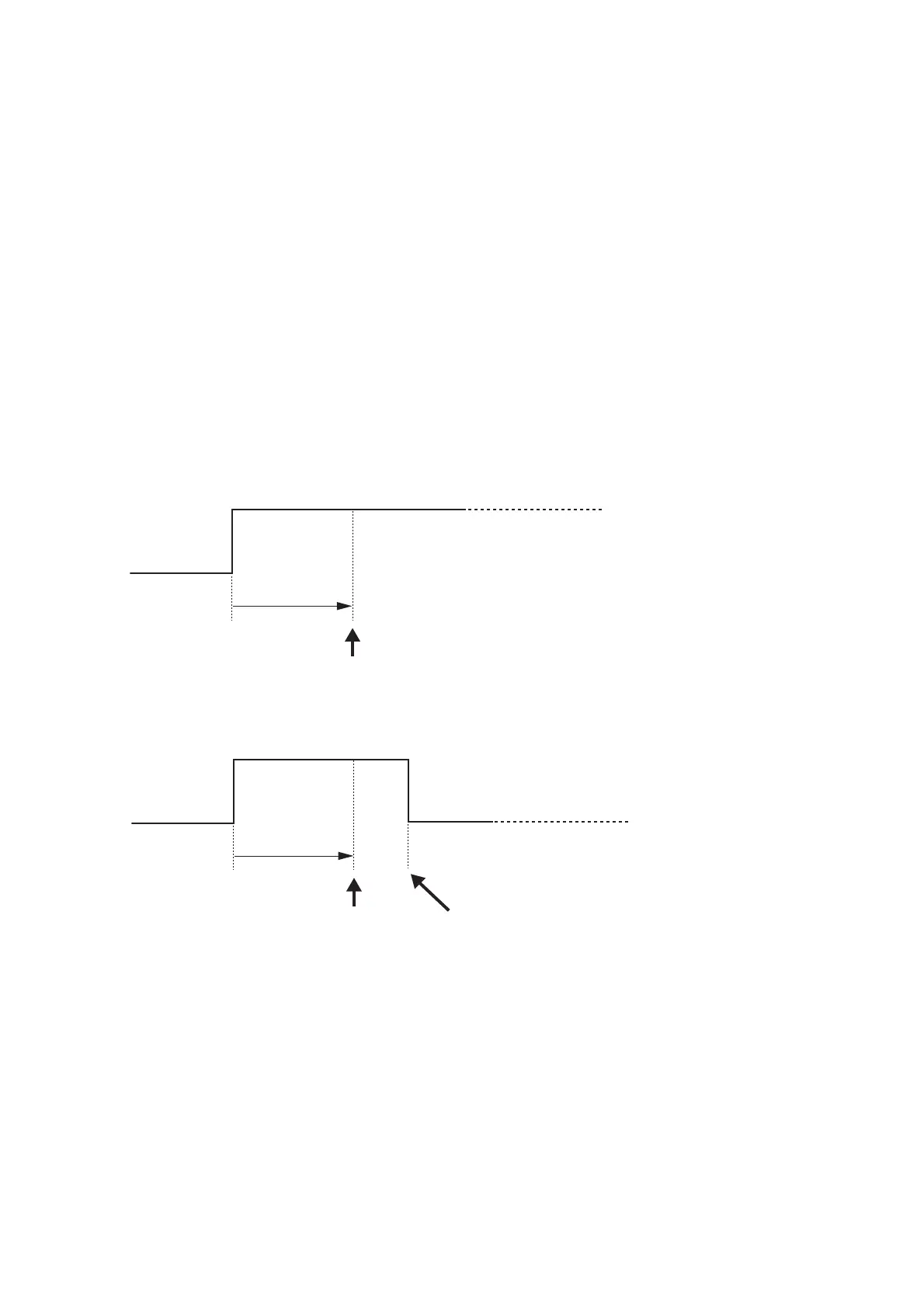

The following (A) and (B) control methods are available. In both cases, the pattern memory is switched when
more than 500 milliseconds pass after each terminal has been shorted to the C terminal.
(A) Terminals remain shorted even after the pattern memory has been switched.
Open Short
500 ms
Memory switched.
(B) Terminals are opened after the pattern memory has been switched.
Open OpenShort
500 ms
Memory switched.
Memory number does not change
when the terminals are opened.
Tip
Terminals 1 – 8 are assigned to each pattern memory using the setting software. For details, refer to the
accompanying Software Instruction Manual.
