5-5-2. Angle Rotor
Before loading the rotor, ensure that no water drop or foreign material is inside the tube hole.
Place sample tubes symmetrically about the rotor axis while balancing the volume of the tubes
opposite one another.
For the TMA-25BH and TMA-26 rotors, place the lid onto the rotor and ensure that it is surely
secured.
<
To load samples
>
①
②
③

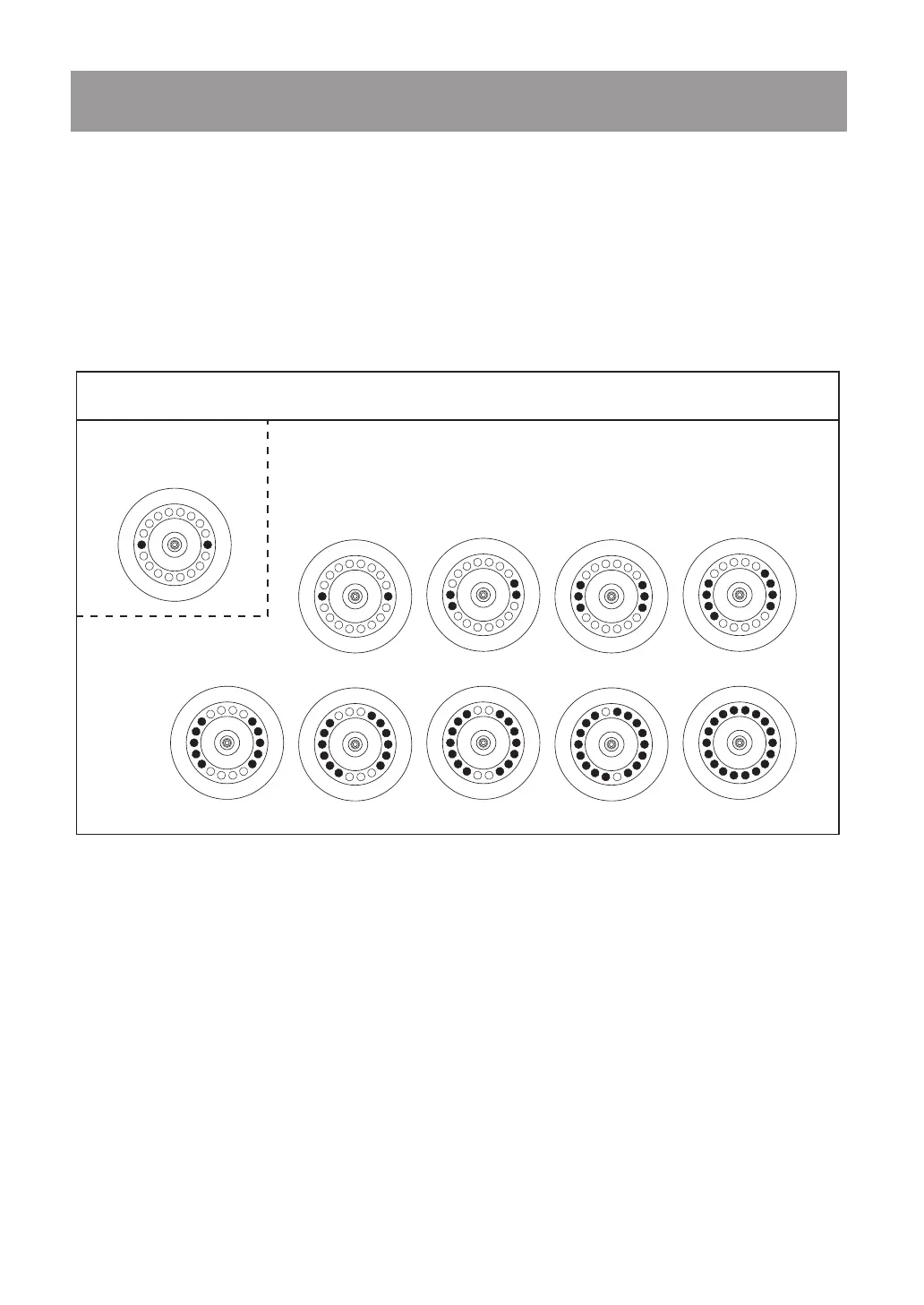

Proper Tube Placement
☆The blackened circles indicate proper tube placement for angle rotors.
＜Example : TMP-21＞
The blackened circles indicate
proper tube placement.
