TH2523 Series Operation Manual Ver1.2
10
Chapter 3 Basic Operations
3.1 <MEAS DISP>
Press down [DISP], the <MEAS DISP> page will be displayed in the screen, as is shown in
figure 3-1.

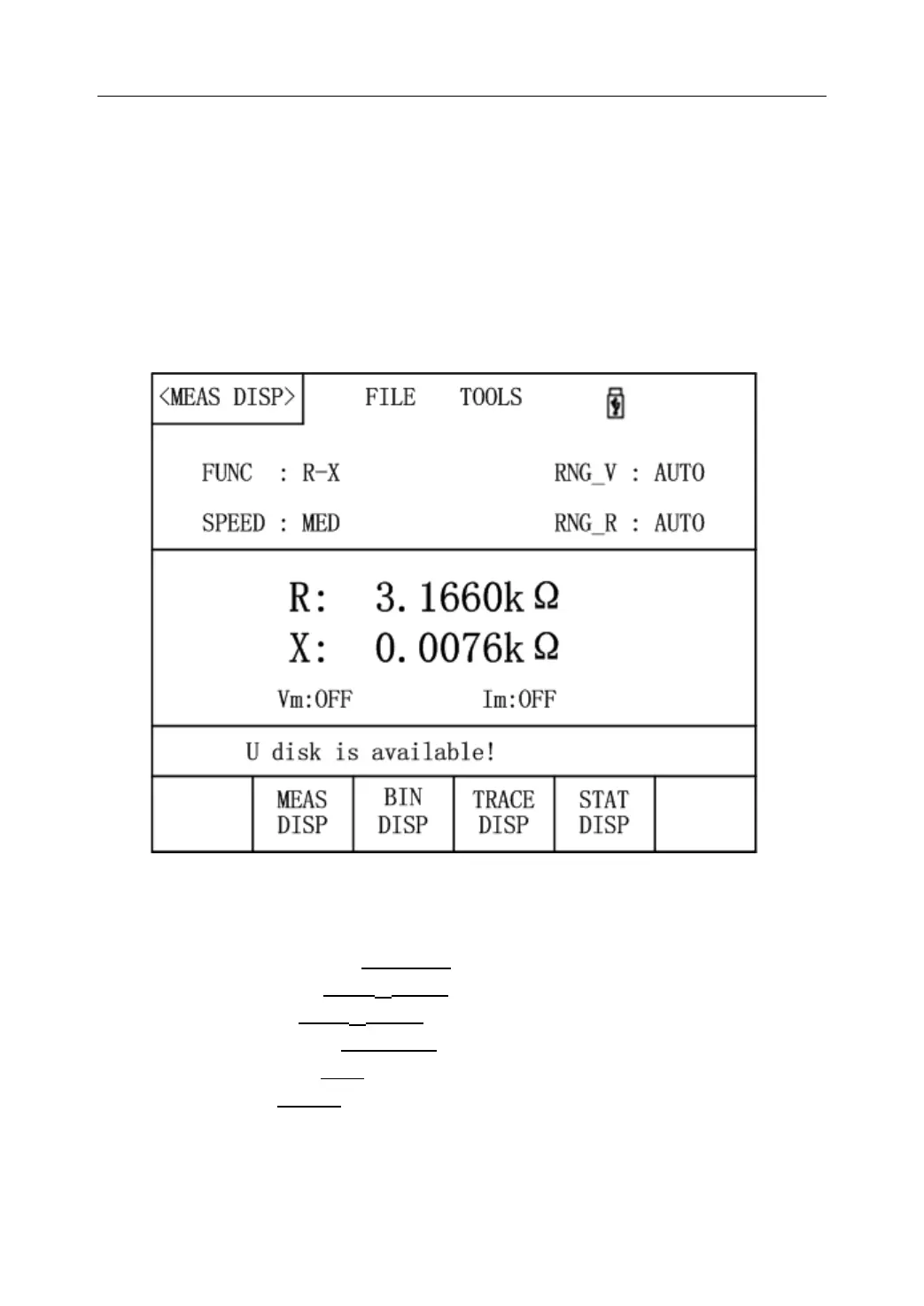

Figure 3-1 Measurement Display
The following measurement parameters can be set in this page.
 Measurement Function（FUNC R-X）
 Impedance Range（Range
(R)
AUTO）
 Voltage Range（Range
(V)
AUTO）
 Measurement Speed（Speed MED）
 File Management（FILE）
 Other Tools（TOOLS）
 Soft Keys（used to enter into operation pages）
