TH2523 Series Operation Manual Ver1.2
15
Figure 3-2 Bin Display Page

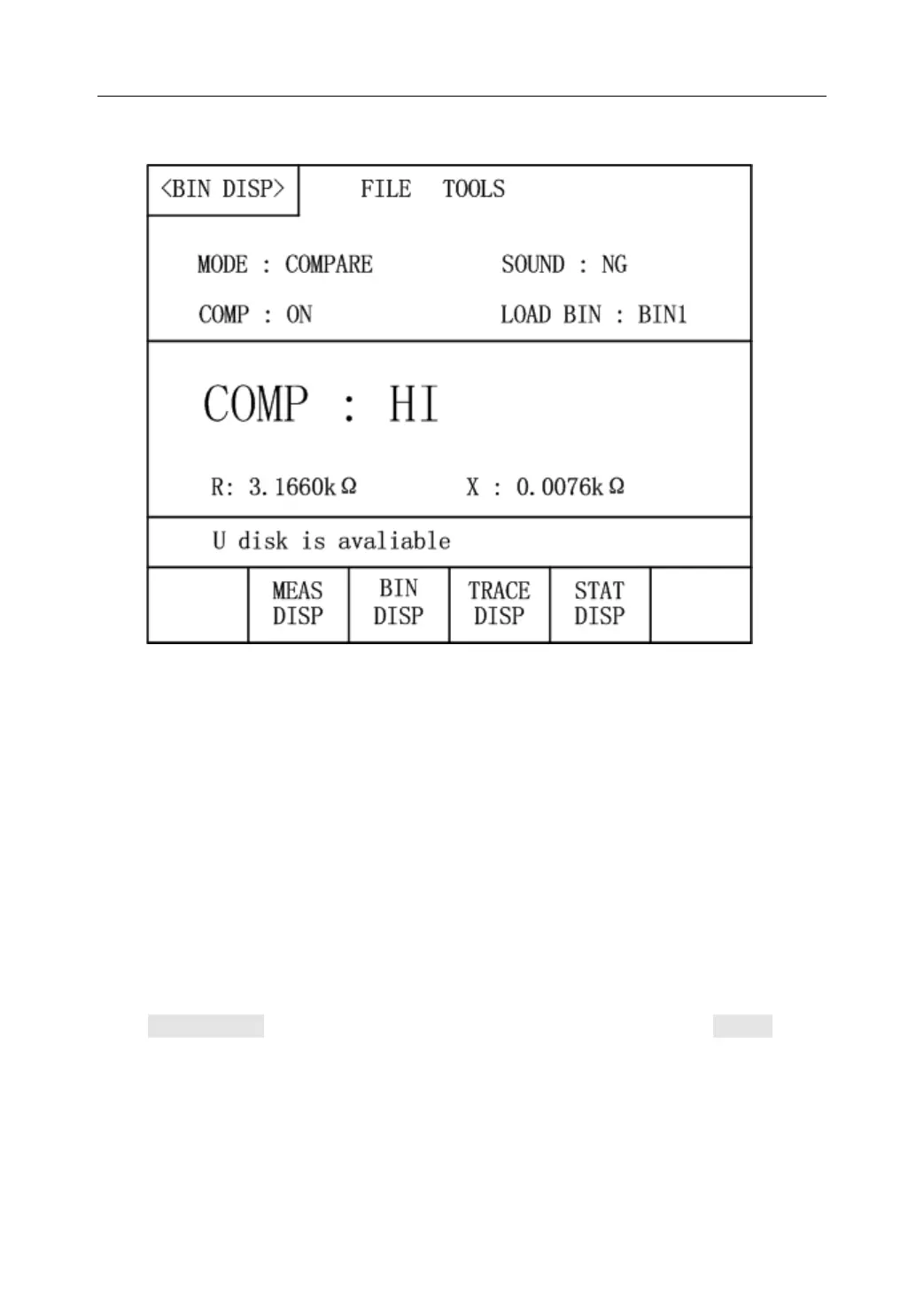

Figure 3-3 Compare Display Page
MODE: Compare and BIN. Compare: compare function of DUT; BIN: judgment of
good or bad products.
SOUND: NG, GD and OFF. NG: not good product sound; GD: good product sound;
OFF: sound is off.
COMP: ON means the compare function is open; OFF means the compare function
is not open.
LOAD BIN: BIN1~9. The measurement result will be compared with high and low
limits of the current loaded bin, and then comparing result will be displayed.
3.3 <TRACE DISP>
Press TRACE DISP in soft key area to enter into <TRACE DISP>. Touch TOOLS, the
following page will be displayed.
