TH2523 Series Operation Manual Ver1.2
14

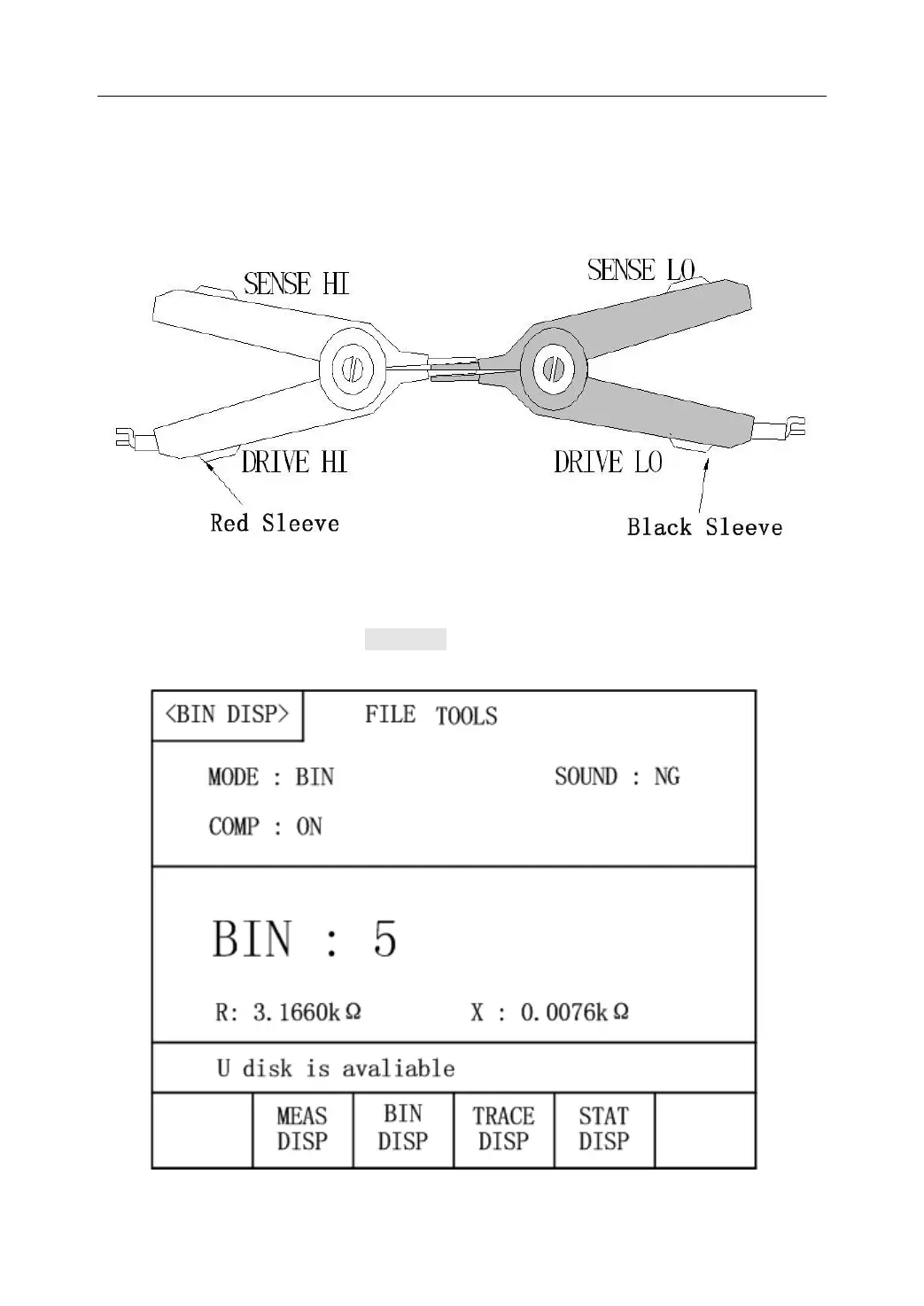

SHORT operation: When this key is used for short clear, the test fixture must be
shorted correctly, or it will result in relative data error and finally it will deviate from
the accurate measurement result. The correct short connection is shown as follows.
3.2 <BIN DISP>
Press the [DISP] button and press BIN DISP in soft key area to enter into the <BIN DISP>
page, as is shown in figure 3-2 and 3-3.
