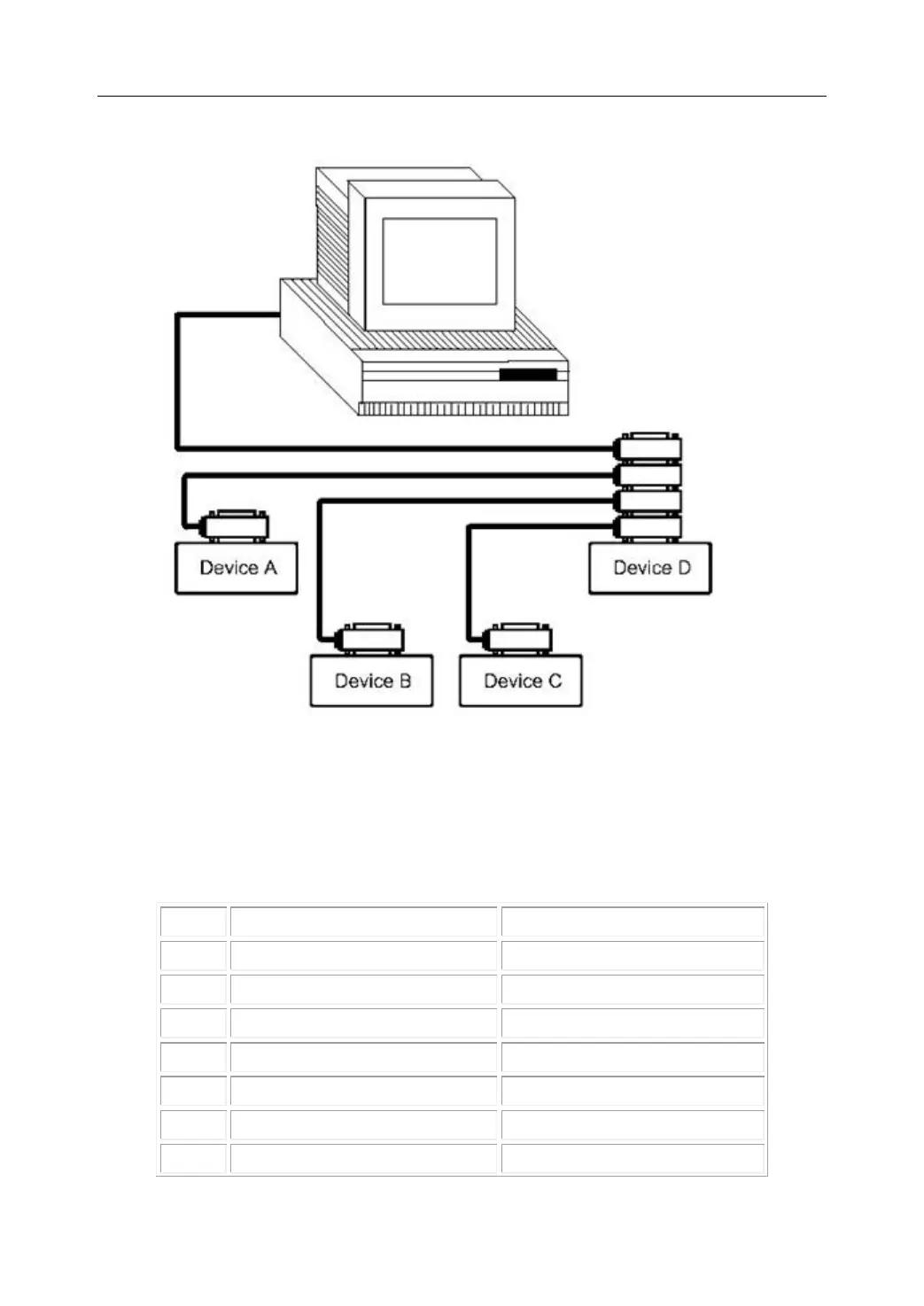

Figure 6-4 Typical GPIB System Interconnection for 4-piggyback Connector
6.2.1 GPIB Interface Functions
The following cable shows the TH2523 GPIB interface functions:
Code
Capability
Function
SH1
Data Source Handshake
Three-wire Shake
AH1
Acceptor Handshake
Three-wire Shake
T5
Basic Talker
Transmit instrument data.
L4
Basic Listener
Receive instrument data.
SR1
Service Request
Request service.
RL1
Remote/Local Conversion
Remote/Local Conversion
DC1
Device Reset
Transmit clear signal.
