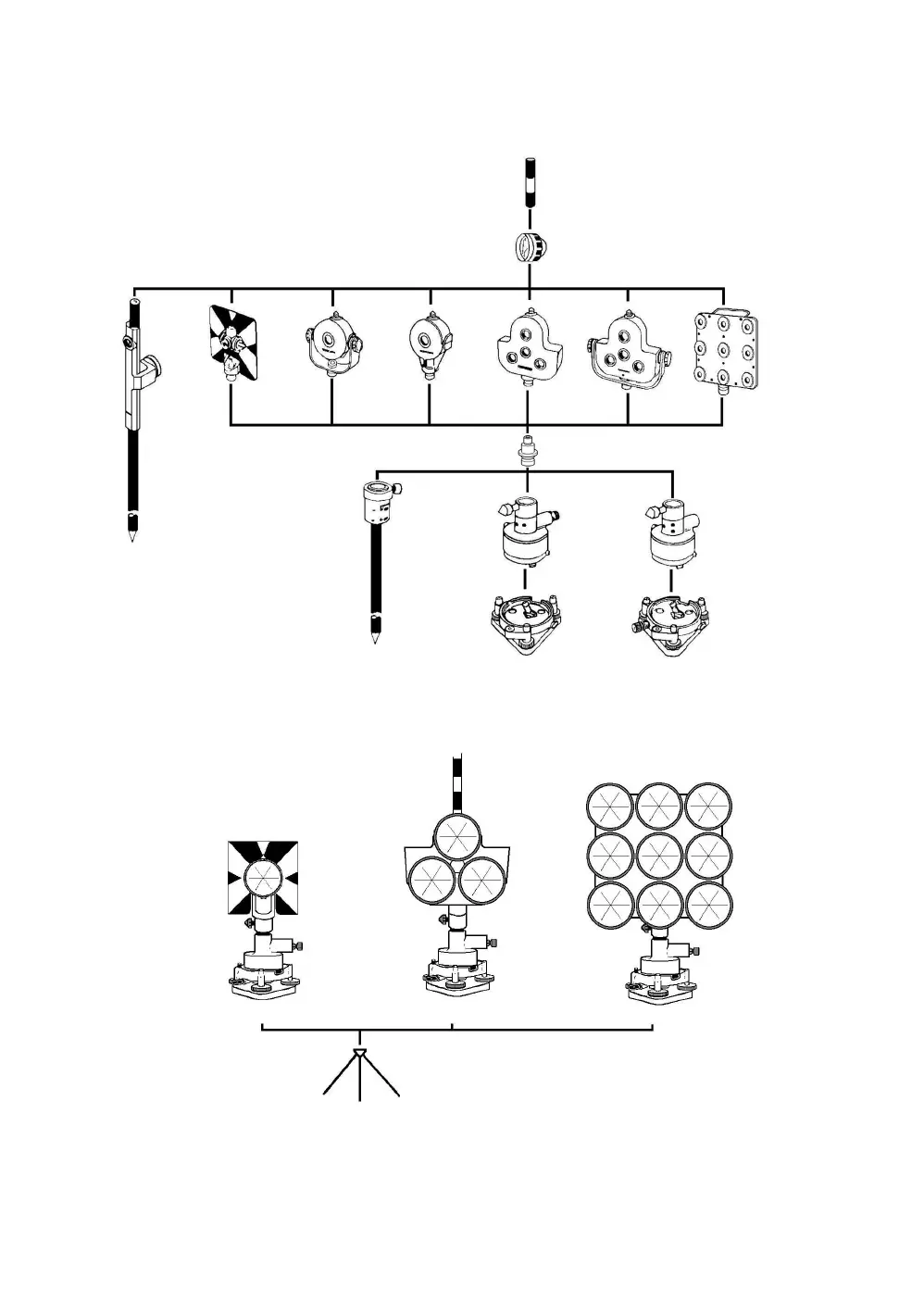

Arrangement according to your needs is possible.
• Use the above prisms after setting them at the same height as the instruments. To adjust the height
of prism set, change the position of fixing screws.
Plug 3 is necessary for the tribrach adaptor-3WP, tribrach adaptor-S2 and pole adaptor-F2 to
coincide with the height of GTS-750/GPT-7500 series.
Target pole-2
(not used with 9 prisms)
Prism-2
Tilting prism
holder-2
with target
plate-2
Pole adaptor- A
Pole adaptor- F2
Tr i b rach- 2
Optical plummet tribrach-2
Tilting prism
holder-3
Single prism
holder-2
Tr i p l e p r i sm
holder-2
Tilting triple
prism holder-1
9 prism
holder-2
Tr i b rach
adaptor-3WP
Tr ibrach
adaptor-S2
Plug-3
Tilt single prism unit
Fixed 3 prisms unit
Fixed 9 prisms unit
Tripod
