1 NOMENCLATURE AND FUNCTIONS
1.2.2 Measurement Menu
1.2.3 Display Marks
Display Contents Display Contents
V V-angle m Meter unit
V% Percent grade ft Feet unit
HR H-angle right F Fine mode
HL H-angle left C Coarse mode
HD Horizontal distance c Coarse 10mm mode
VD Relative elevation R Repeat measurement
SD Slope distance S Single measurement
N N coordinate N N-times measurement
E E coordinate PPM Atmospheric correction value
Z Z coordinate PSM Prism constant correction value
*
EDM working NPM Non-Prism constant correction value
Battery Level Indicator
Refer to see Chapter 2.4 “Battery Power
Remaining Display” . for further
information.
NP Non-prism mode
Laser emitting mark LNP Non-prism long mode
Setting Non-prism long range

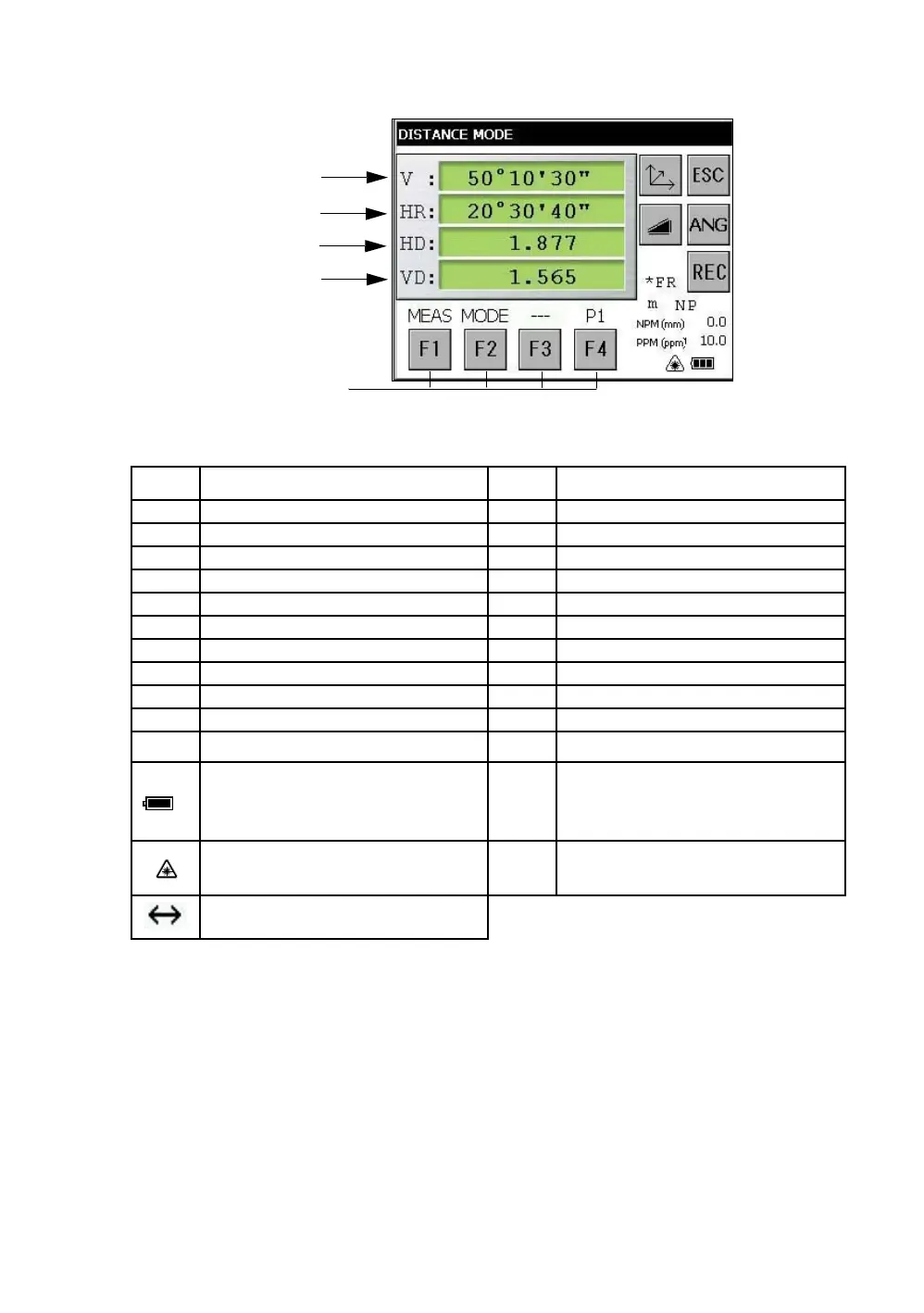

Example:Distance Mode
V-angle: 50°10’30”
H-angle: 20°30’40”
Horizontal distance: 1.877m
Relative elevation : 1.565m
Soft keys
