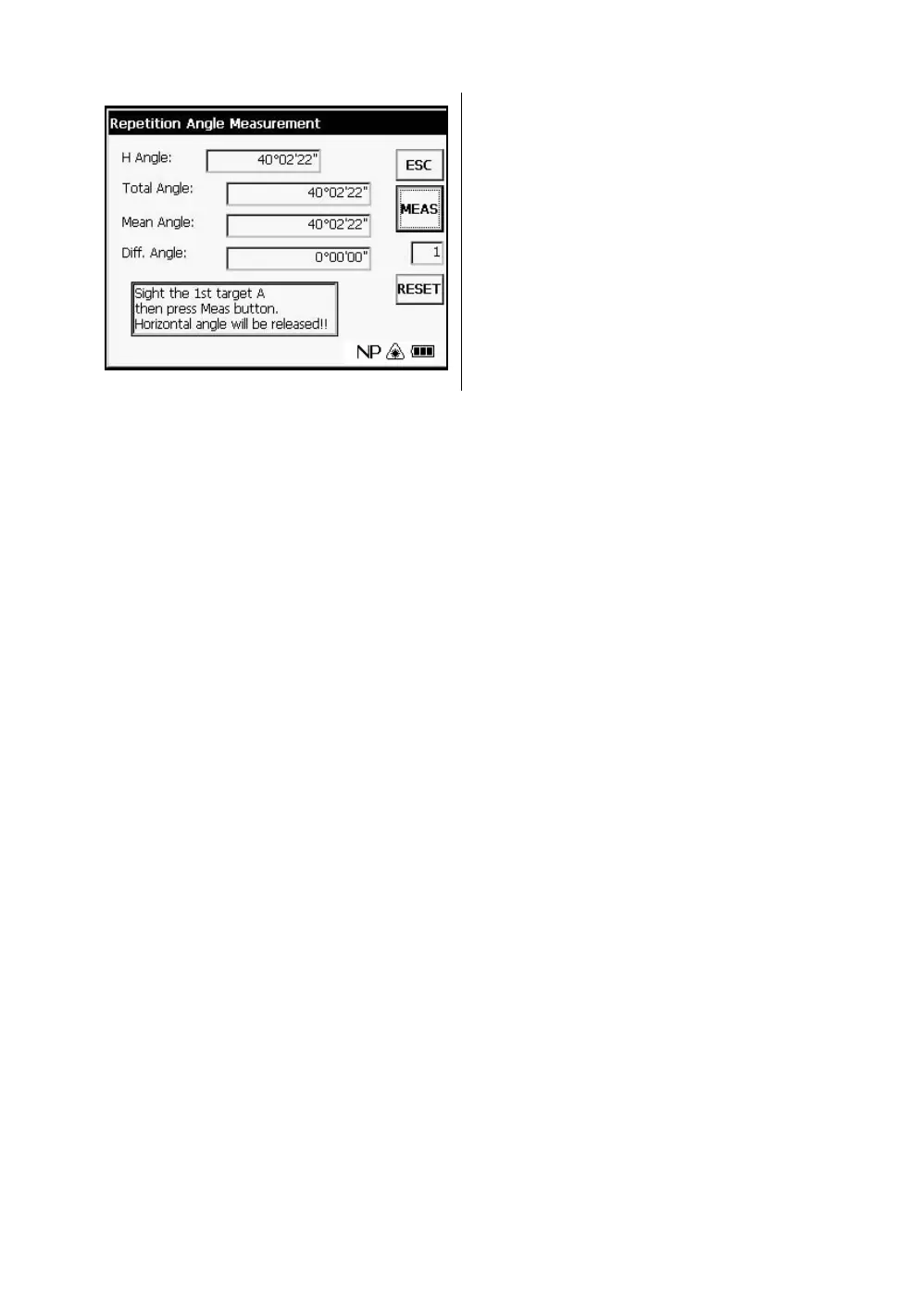

4 PROGRAM MODE

The total of angle and the mean of angle are

shown.

6 Repeat procedure 2 ~ 5 to measure the

desired number of repetitions.

• Horizontal angle can be accumulated up to 99 times.

• To clear all data, press the [RESET] key.
