Getting Acquainted
4
P/N: 1004636-01
• • • • • •
Getting Acquainted
The Net-G5 receiver enclosure is fully sealed and incorporates the GNSS receiver board, antenna, internal
batteries, memory storage, and wireless communication devices. A flexible user interface enables you to connect
the receiver with various external devices, such as computers, network devices, sensors, frequency sources, etc.
Receiver Housing Overview
The receiver’s standard hardware configuration includes:
Although this is the standard configuration, the OAF must enable some of these features for proper operation.
See
“About the OAF” on page 24 for details.
Front Panel View

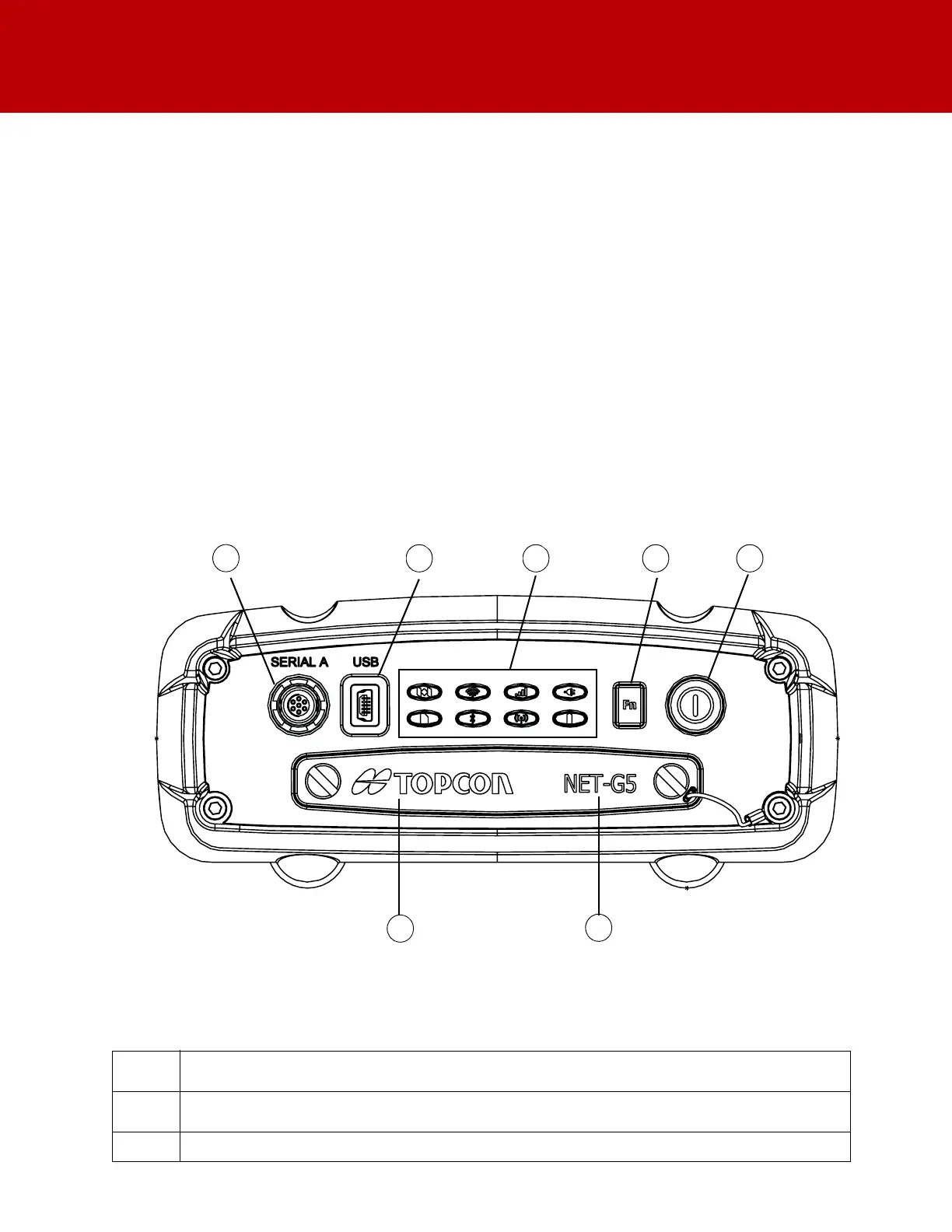

Figure 3: Receiver – Front Panel View
• three serial data ports
• a USB device and USB host ports
• an Ethernet port
• an interface for controlling and viewing data
logging, link, and power status
• an SD card slot
• a SIM card slot
• an external GNSS antenna port
• a frequency input/output port
• a 1PPS port
• Event Marker port
• two internal batteries
• two power ports
1
2
3
4
5
6
7
Table 1. Font Panel Ports
1
• Serial Port A (7-Pin ODU-MINI-SNAP) – Used for communication between the receiver and an external
device.
2
• Mini USB – Used for high-speed data transfer and communication between the receiver and an external
device.
3
• LED Display Panel – For LED descriptions, see “Display Panel” on page 9.
