Display Panel
9
P/N: 1004636-01
Display Panel
The Net-G5 receiver has a highly-visible display panel with single-button operation. The LED display panel enables
you to control receiver power and data recording. The LEDs display the status of the satellite tracking,
recording/memory capacity, wireless connections, and power. This chapter describes the different LED blink
patterns and what they mean.

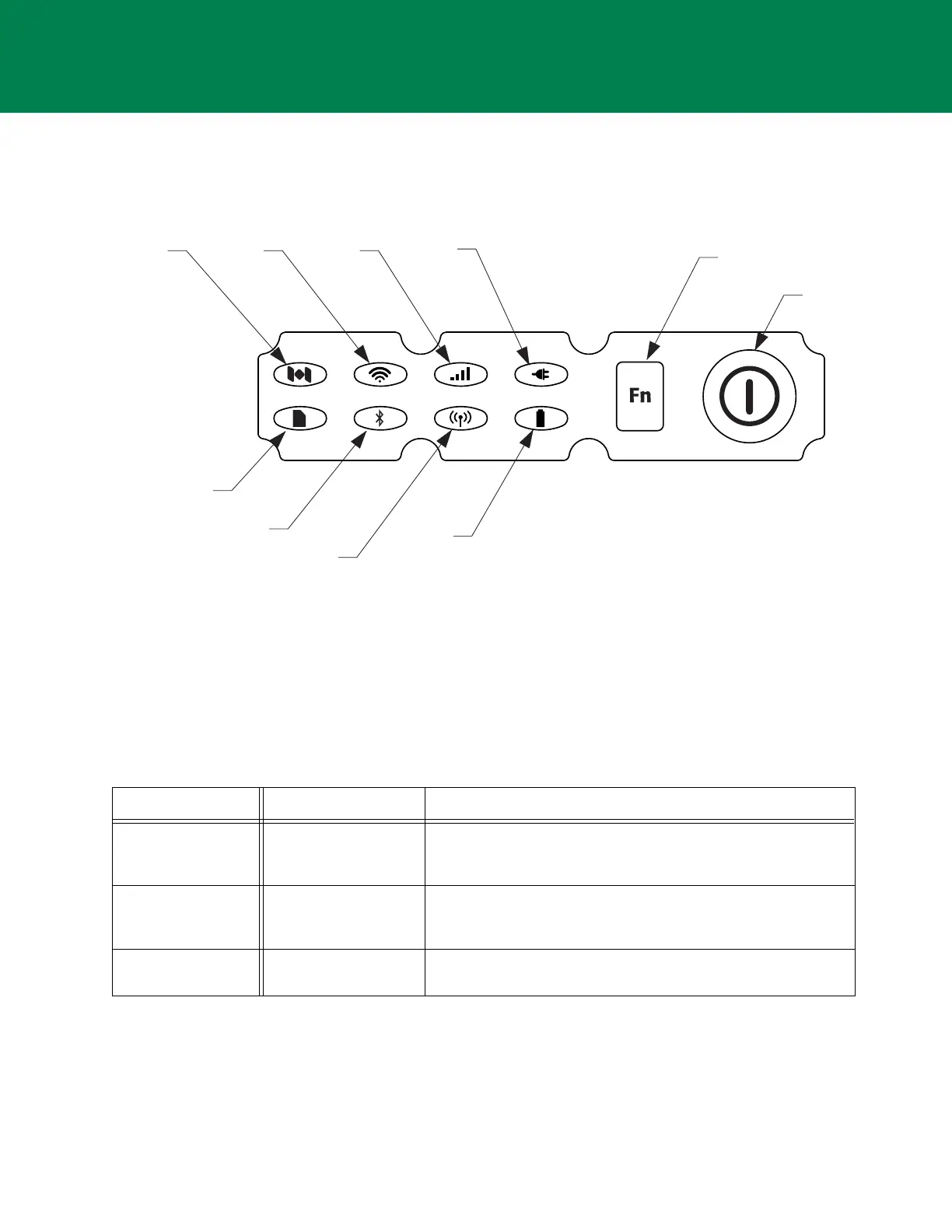

Figure 6: LED Display Panel
Power Button
The power button performs multiple functions. The duration in which the button is pressed and held determines
how the receiver will perform. While pressing the button, the LED panel indicates the selected operation using
particular LEDs.
Table 4 describes how to use the power button.
Status
(STAT)
Wi-Fi Cellular
(CELL)
Function
(FN)
Button
Power
Button
Power
(PWR)
Recording
(REC)
Bluetooth
(BT)
Communication
(RxTx)
Battery
(BATT)
Table 4. Power Button Features
FUNCTION PRESS BUTTON LED DESCRIPTION
Power On 1+ seconds LEDs blink green until the startup is complete. LEDs return to
normal and the Power LED is solid green, indicating that the
receiver is on.
Power Off 3-10 seconds All LEDs are off. Release the Power button when the Power LED is
solid red. When no external power is present, the Power LED is
dark.
Clear NVRAM See “Resetting the Receiver (Clearing the NVRAM)” on page 30 for
more information.
