Updating Firmware
23
P/N: 1004636-01
Configuring the Receiver
9. Enter
%%set,update,yes
in the command prompt, and click Send (Figure 18).

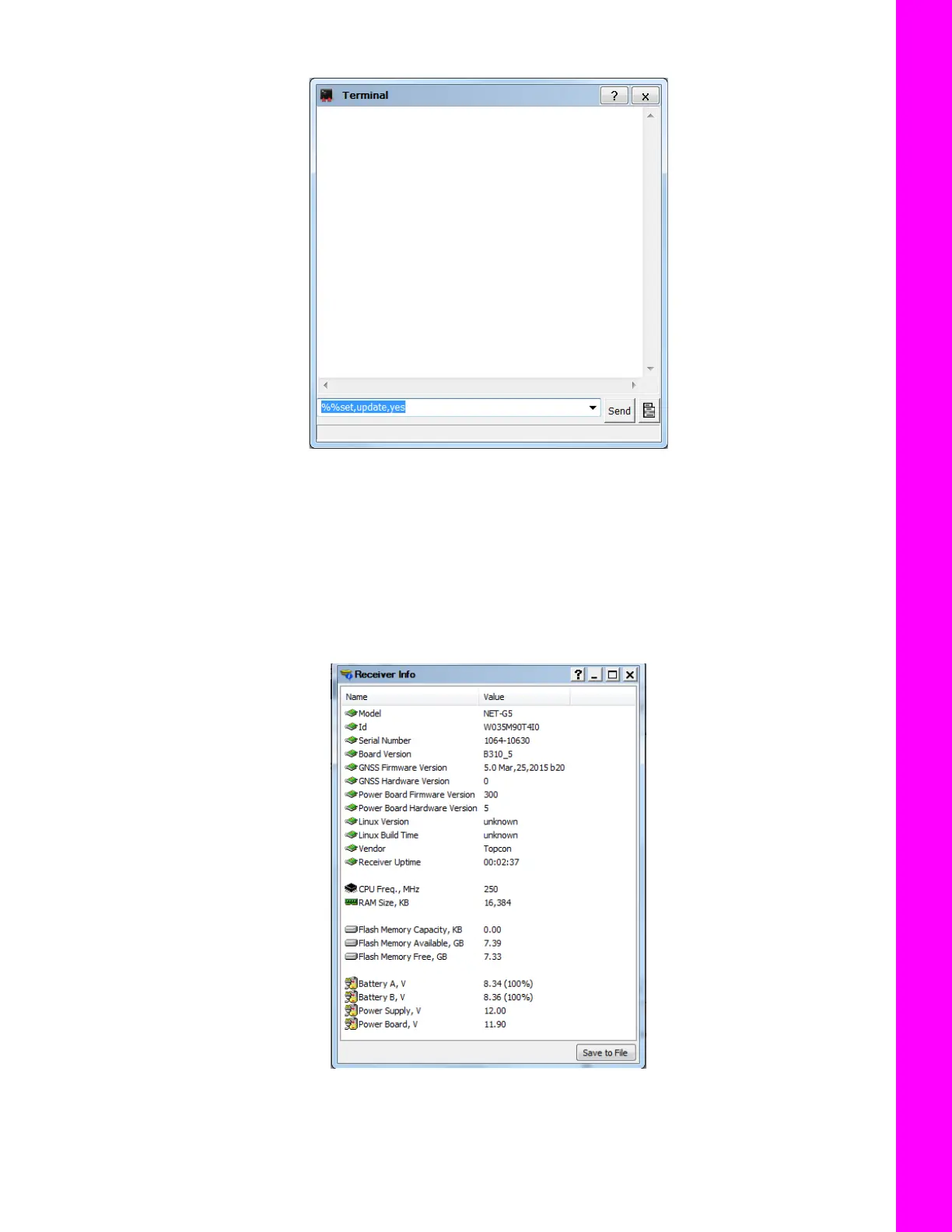

Figure 18: Send the Update Command
During installation, the Power LED will blink yellow-green. After installation, the Power LED will be solid green.
Once the Power LED is solid green, close the Terminal screen and click Device
Disconnect in TRU.
Verify Firmware Upload
1. In TRU, click DeviceConnect. The Connection Parameters screen appears.
2. Click Connect. The TRU main screen appears.
3. Click Information. The Receiver Info screen appears showing the current firmware loaded to the
device (
Figure 19).
Figure 19: Receiver Info Displays the Current Firmware
