19.
SURF
ACE AREA CALCULATION
102

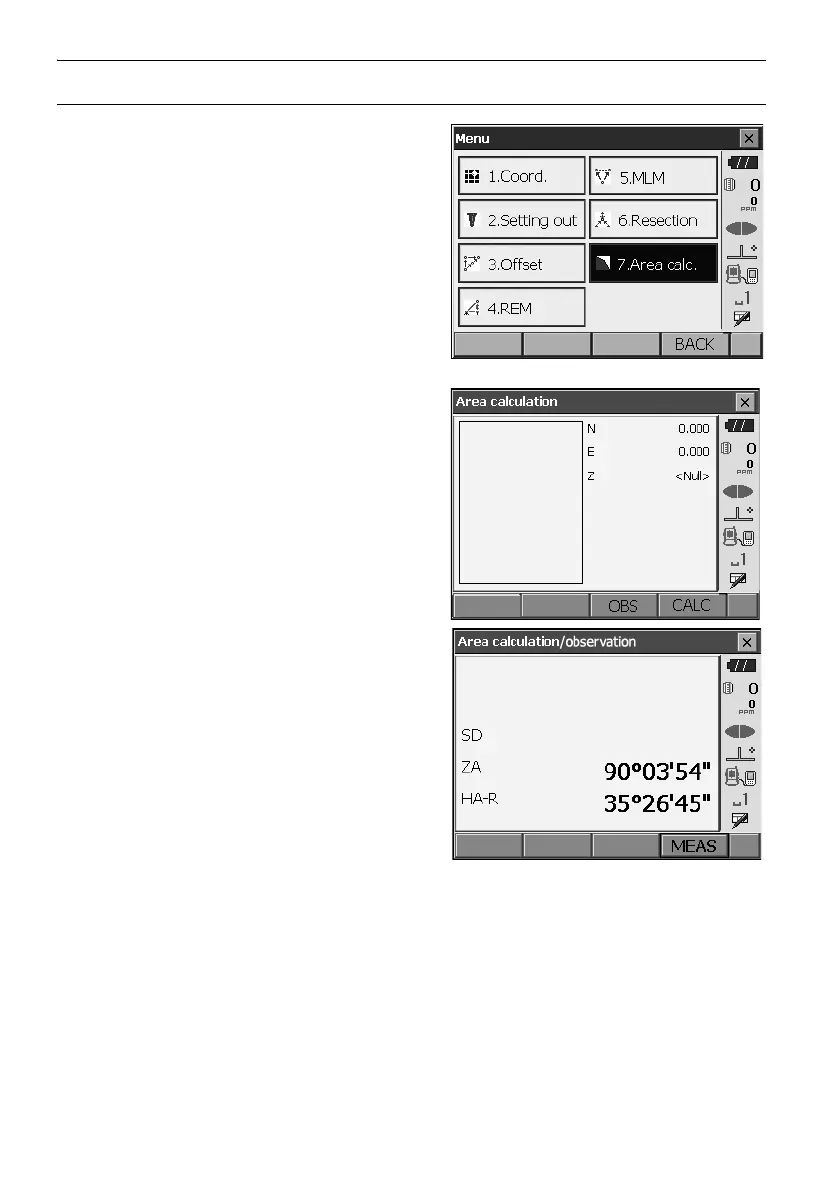

PROCEDURE Surface area calcula
tion by measuring points
1.
Select "Area calc." in <Menu>
2.
Press
[OBS]
to display <Area calculat
ion/
measurement>.
Sight the first point on the line
enclosing the area, and press
[MEAS]
.
Measurement begins and the measured values
are displayed. Press
[STOP]
to stop measuring.
107
109
Table of Contents
Default Chapter
4
Table of Contents
4
1 Precautions for Safe Operation
7
2 Precautions
10
3 Laser Safety Information
14
4 Product Outline
16
Parts of the Instrument
16
Mode Structure
20
Bluetooth Wireless Technology
21
5 Basic Operation
23
Basic Key Operation
23
Display Functions
27
Starkey Mode
31
Inputting Characters Using the Input Panel
31
6 Inserting Usb Memory
36
7 Using the Battery
37
Battery Charging
37
Installing/Removing the Battery
38
8 Setting up the Instrument
40
Centering
40
Levelling
42
9 Power On/Off
44
Resolving Software Issues
45
Configuring the Touch Panel
45
10 Connecting to External Devices
47
Wireless Communication Using Bluetooth Technology
47
Communication between the os and Companion Device
52
Connecting to USB Devices
54
Connection Via RS232C Cable
57
11 Focussing and Target Sighting
58
12 Angle Measurement
59
Measuring the Horizontal Angle between Two Points (Horizontal Angle 0°)
59
Setting the Horizontal Angle to a Required Value (Horizontal Angle Hold)
60
Angle Measurement and Outputting the Data
61
13 Distance Measurement
62
Returned Signal Checking
62
Distance and Angle Measurement
64
Distance Measurement and Outputting the Data
65
REM Measurement
66
14 Coordinate Measurement
68
Entering Instrument Station Data
68
Azimuth Angle Setting
69
3-D Coordinate Measurement
72
15 Resection Measurement
74
Coordinate Resection Measurement
75
Height Resection Measurement
79
16 Setting-Out Measurement
84
Using the Guide Light
84
Distance Setting-Out Measurement
85
Coordinates Setting-Out Measurement
90
REM Setting-Out Measurement
93
17 Offset Measurement
96
Single-Distance Offset Measurement
96
Angle Offset Measurement
98
Two-Distance Offset Measurement
100
18 Missing Line Measurement
103
Measuring the Distance between 2 or more Points
103
Changing the Starting Point
105
19 Surface Area Calculation
107
20 Changing the Settings
111
Observation Conditions
111
Instrument Configuration
114
EDM Settings
116
Allocating User-Defined Tabs
120
Customizing Screen Controls
122
Allocating Key Functions
124
Changing Starkey Mode Icons
127
Units
129
Changing Password
130
Date and Time
131
Restoring Default Settings
131
21 Warning and Error Messages
132
22 Checks and Adjustments
135
Circular Level
135
Tilt Sensor
136
Collimation
139
Reticle
140
Optical Plummet
142
Additive Distance Constant
143
Laser Plummet (Option)
145
23 Power Supply System
148
24 Prism System
149
25 Optional Accessories
150
26 Specifications
152
27 Explanations
157
Manually Indexing the Vertical Circle by Face 1/2 Measurement
157
Correction for Refraction and Earth Curvature
158
28 Regulations
159
29 Index
164
