20. CHANGING THE SETTINGS
110
EDM ALC
Set the light receiving status of the EDM. While carrying out continuous measurement, set this
item according to the measurement conditions.
When EDM ALC is set to "Free," the instrument’s ALC will be automatically adjusted if an error
occurs as a result of the amount of light received. Set to "Free" when the target is moved during
measurement or different targets are used.
When "Hold" is set, the amount of light received will not be adjusted until continuous
measurement is completed.
If an obstacle intermittently obstructs the light beam during continuous measurement and the
"Signal off" error occurs, each time the obstruction occurs it takes some time for the amount of
light received to be adjusted and the measurement value displayed. Set to "Hold" when the light
beam used for measurement is stable but is frequently obstructed by obstacles such as people,
cars, or tree branches etc. preventing measurement from being performed.
When the distance measurement mode is set to "Tracking" (target is moved during distance
measurement) the EDM ALC will be adjusted regardless of the EDM ALC setting.
Laser-pointer off
To save power, the laser-pointer is automatically turned off after the set time has elapsed.
Key backlight
The key backlight can be set to "ON" or "OFF". When "key backlight" is set to "ON", the key
backlight is lit /OFF in conjunction with pressing {}.

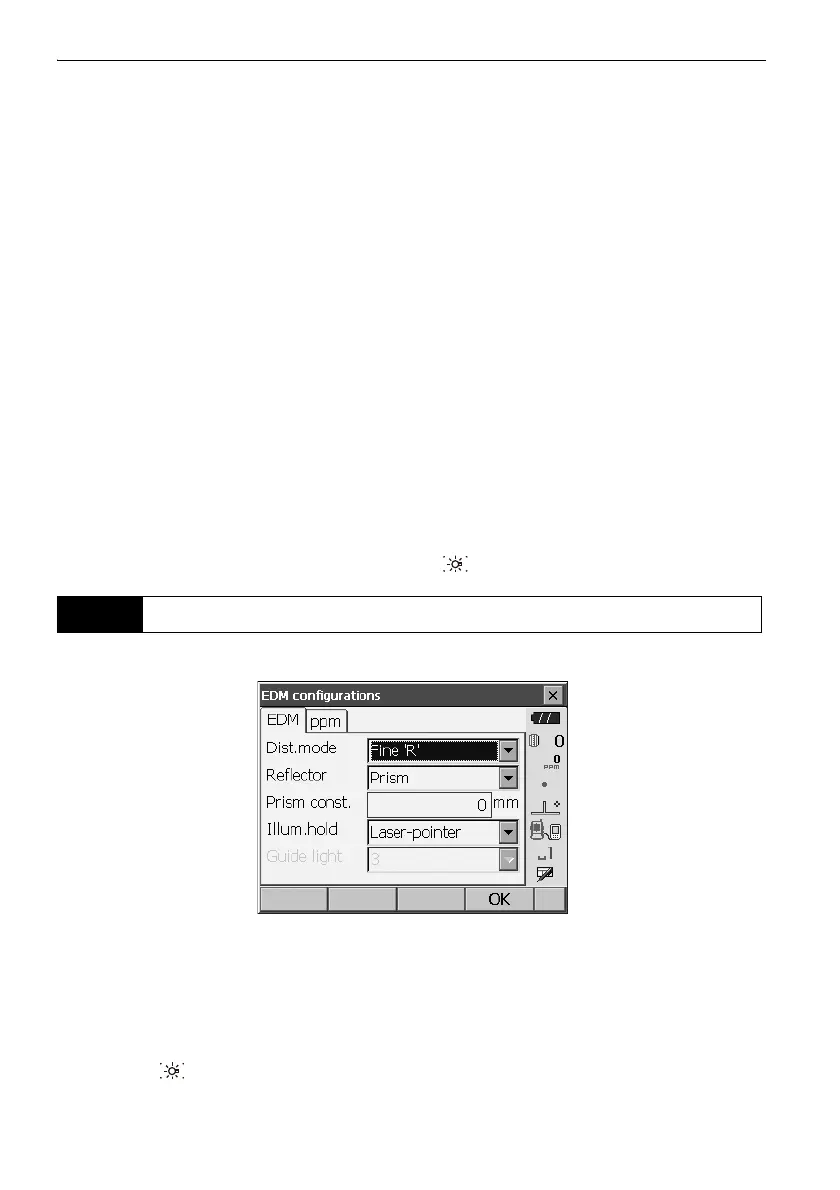

• "EDM" tab
Items set, options, and input range (*: Factory setting)
Dist. mode (Distance measurement mode): Fine ’R’*/Fine AVG n= 1(Setting: 1 to 9 times)/Fine ’S’/
Rapid ’R’/Rapid ’S’/Tracking
Reflector: Prism*/Sheet/N-Prism
Prism constant: -99 to 99 mm ("Prism" is selected: 0*, "Sheet" is
selected: 0)
Illum. hold ({} function): Laser-pointer*/Guide light
Guide light (Brightness): 1 to 3 (3*)
20.3 EDM Settings
