10. CONNECTING TO EXTERNAL DEVICES
PROCEDURE Basic cable settings
1. Connect the cable.
Cables: "25. OPTIONAL ACCESSORIES"
2. Select "Comms" in Config mode.

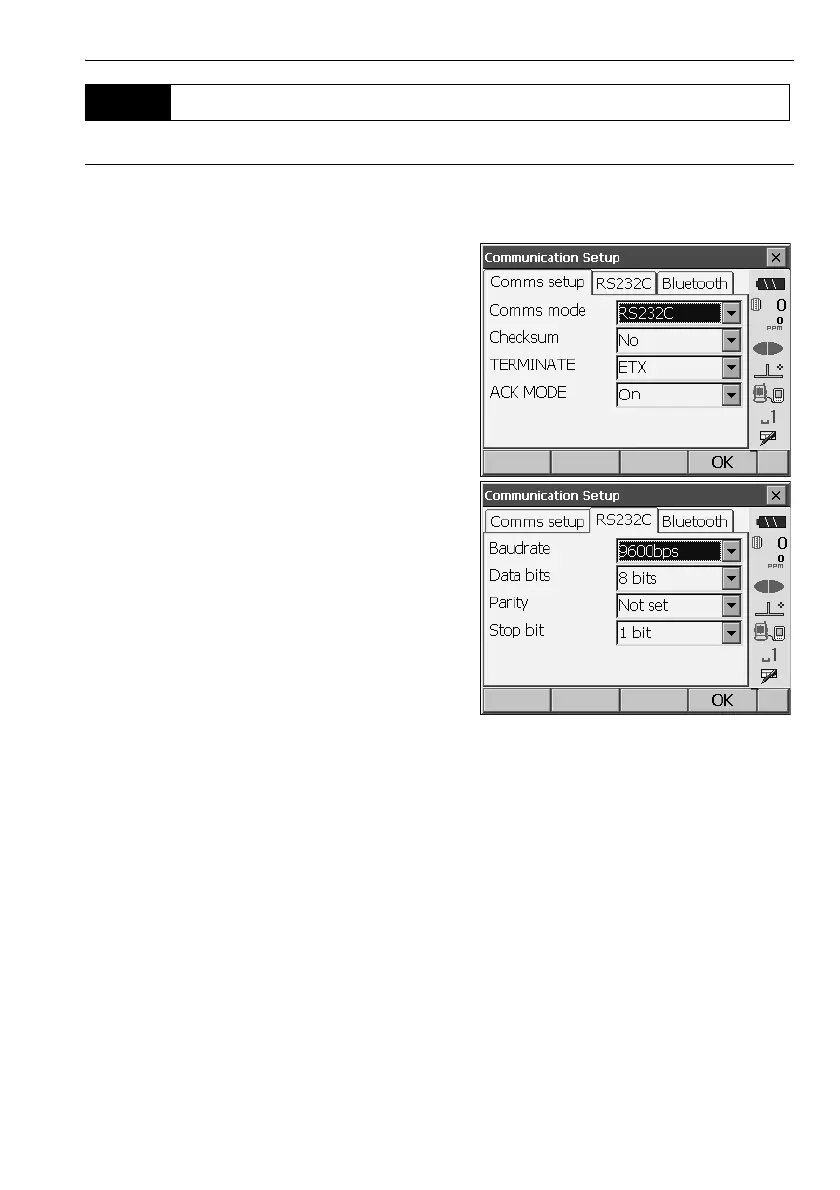

Set communication conditions in the "Comms
setup" tab. Set "Comms mode" to "RS232C".
3. Set options in the "RS232C" tab according to the
selection made in the "Comms setup" tab.
*: factory settings
Baud rate: 1200/2400/4800/
9600*/19200/
38400bps
Data bits: 7/8* bits
Parity: Not set*/Odd/Even
Stop bit: 1*/ 2 bits
10.4 Connection via RS232C cable
