13. DISTANCE MEASUREMENT
58
An angle can be measured at the same time as distance.
PROCEDURE
1. Face the OS in the direction of the target
Use the sighting collimator to aim the OS and
telescope toward the target.
"11. FOCUSSING AND TARGET SIGHTING"
2. Start measurement.
Press [MEAS] in the first page of Observation
mode to start measurement.

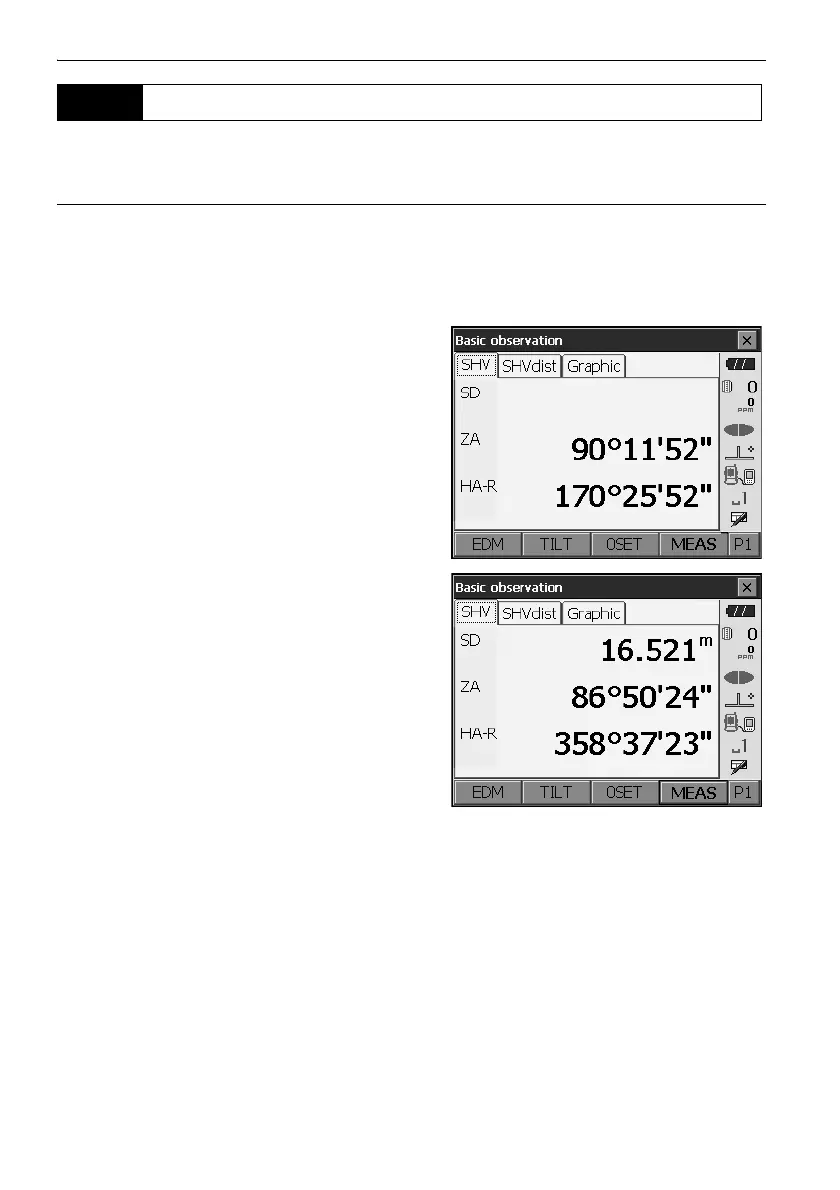

The measured distance data (SD), vertical angle
(ZA), and horizontal angle (HA-R) are displayed.
3. Press [STOP] to quit distance measurement.
If the single measurement mode is selected, measurement automatically stops after a single
measurement.
During fine average measurement, the distance data is displayed as SD1, SD2,... to SD9. When the
designated number of measurements has been completed, the average value of the distance is
displayed in the "SDA" line.
If the tracking measurement is conducted with the target type "N-Prism", the measured data for a
distance exceeding 250m is not displayed.
The distance and angle that are most recently measured remain stored in the memory until the
power is off and can be displayed at any time by pressing [CALL].
Allocating [CALL]: "20.6 Allocating Key Functions"
13.2 Distance and Angle Measurement
