19. SURFACE AREA CALCULATION

104

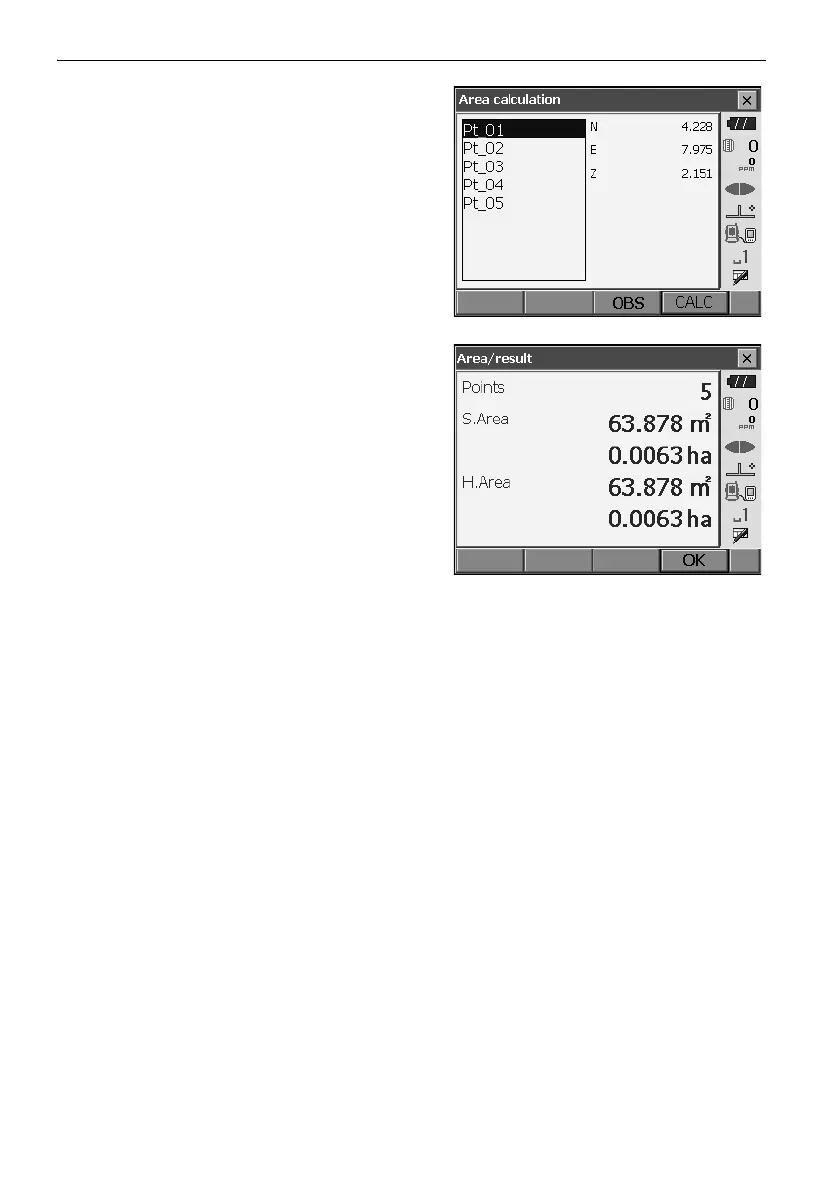

5. Press [CALC] to display the calculated area.

6. Press [OK] to return to <Area/key in coord.>.
