5. BASIC OPERATION
22
Displaying and operating screens
• To close a screen, tap the cross in the top right corner, or press {ESC}.
• Tabs, softkey allocations, displayed tab items, and character sizes can all be changed in accordance
with user preferences.
"20. CHANGING THE SETTINGS"

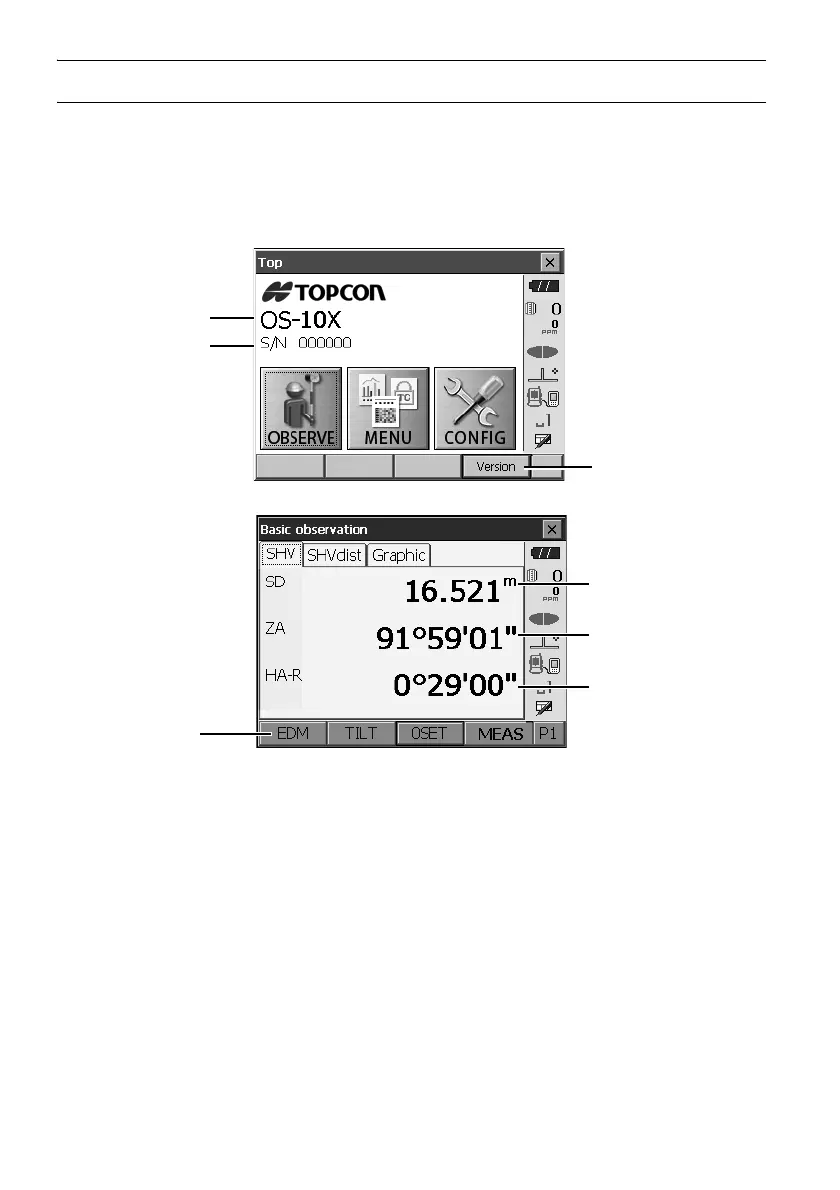

Top menu
Observation mode screen SHV tab
(1) Distance
Display status can be switched between SD (slope distance)/HD (horizontal distance)/VD
(vertical distance).
"20.1 Observation Conditions"
(2) Vertical angle
The Vertical angle display can be switched between Zenith (Z=0°)/Horiz (H=0°)/Horiz (H=±90°)
To switch vertical angle/slope in %, press [ZA/%] when allocated to the Observation mode screen.
"20.1 Observation Conditions"
The capitalized letter in the softkey indicates the currently selected mode.
Allocating [ZA/%]: "20.6 Allocating Key Functions"
Instrument name
Serial Number
Application software
version
(1) Distance
(2) Vertical angle
(3) Horizontal angle
Softkey
To Next Page
