5. BASIC OPERATION
24
The "Graphic" tab display can be modified using the softkeys in the second page.
[CNFG]: In <Graphic configuration> the user can specify the orientation of the "graphic" tab
display and which point, target or station, to set at the center of the display.
[DEF.]: Returns to the original orientation display.
[ZoomIn]: Zooms in.
[ZoomOut]:Zooms out.
 Selecting menus

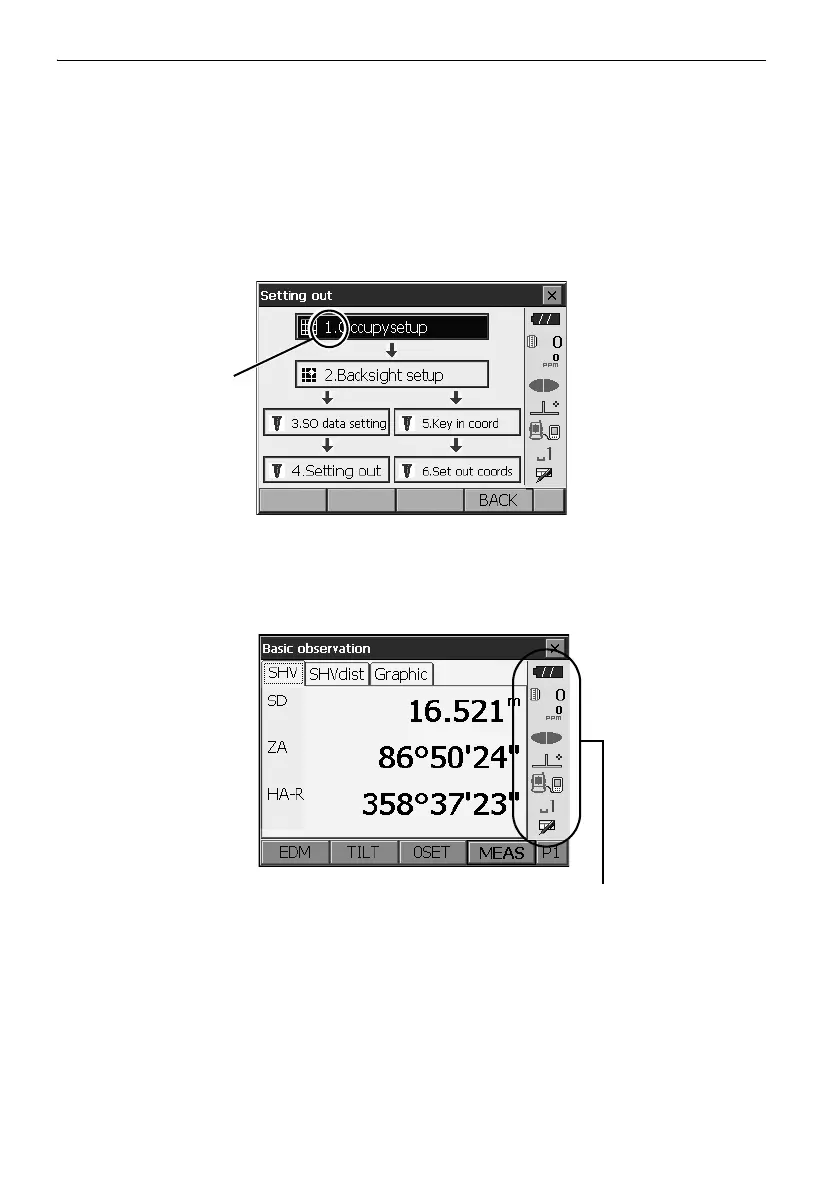

To select a menu, tap the touch panel or press the relevant number key.
 Status bar
Indicates the current status of the instrument. Tapping icons will switch between the relevant
options for that item. Tapping and holding will display a list of all available options for that item and,
in certain cases, a link to the configuration screen for that item.
Allocation of the icons of the status bar corresponds with that of Starkey mode.
About icons: "5.4 Starkey Mode"
