5. BASIC OPERATION
28

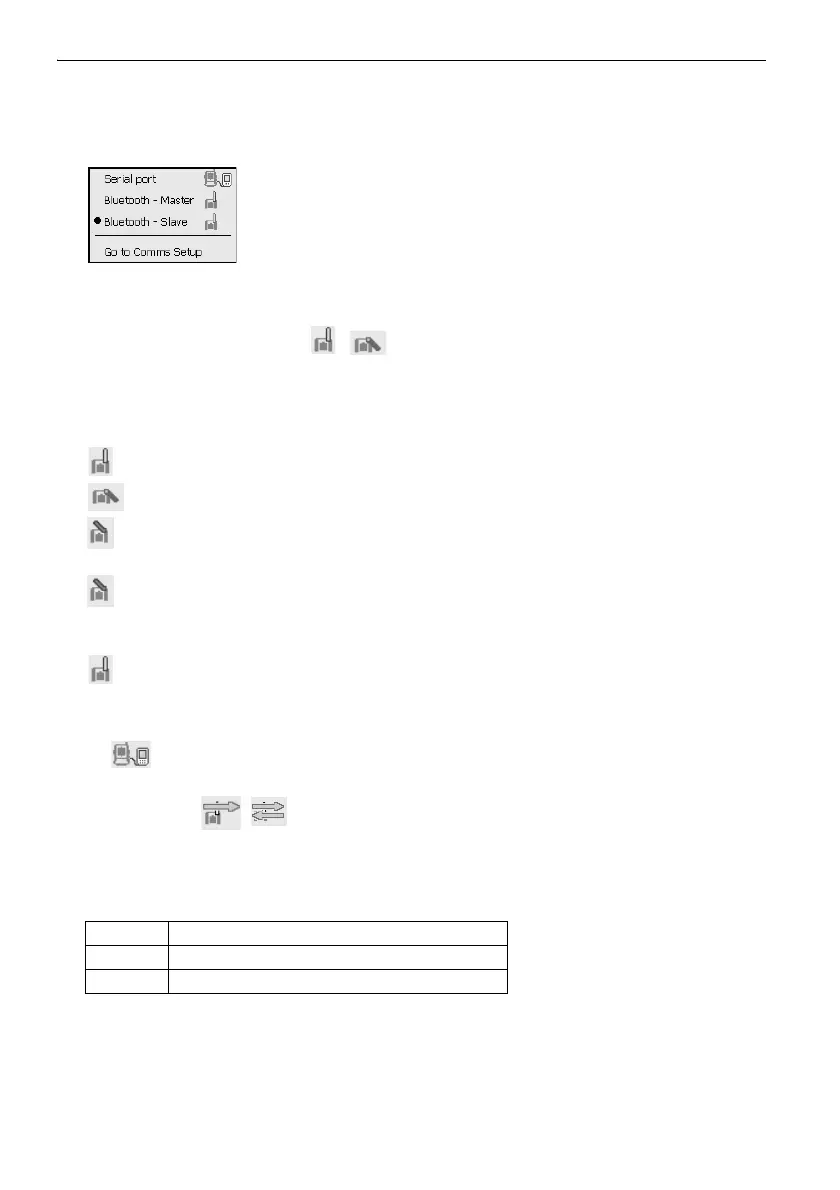

(6) Communication status with external devices icon
Selection and configuration of communication status with external devices. This icon is not
displayed in Program mode. Bluetooth settings can only be selected when using instruments
incorporating the Bluetooth module.
: Connection via RS232C cable
: Connection via Bluetooth wireless technology (OS set as "Master"
device) (blue antenna)
: Connection via Bluetooth wireless technology (OS set as "Slave" device)
(green antenna)
• When Bluetooth communication is selected (OS set as "Master" device) a connection can be
initiated/canceled by tapping / .
Connection status to external devices is displayed as follows.
i) Connection via Bluetooth wireless technology
When OS is set as the "Master" device the antenna icon is blue. When the OS is set as the
"Slave" device the antenna icon is green.
: Connecting
: Canceling connection
: (Antenna is purple - moving)
Inquiring about other Bluetooth devices
: (Antenna is purple - stationary)
Communication settings in progress/Preparing for communication (Instrument just
powered ON or just switched to "Slave")
: Connection error (icon flashes) (the color depends on the setting)
ii) : Connection via RS232C cable
• An arrow (e.g. / ) is displayed to indicate that data transmission is in progress. A red
arrow indicates that data transmission has failed and data needs to be sent again.
(7) Input mode icon
Selection of input mode
"5.3 Inputting Characters using the Input Panel Inputting letters/figures"
(8) Input panel icon
"5.3 Inputting Characters using the Input Panel"
_1 Inputting numbers and symbols
_a Inputting lower case alphabetic characters
_A Inputting upper case alphabetic characters
