16. SETTING-OUT MEASUREMENT
82
6. Position the target on the line of sight and press
[MEAS] to begin distance measurement.
The distance and direction to move the target until
the setting out point is located is displayed on the
OS. The sighting point measurement results
(currently installed position of the target) are
displayed.

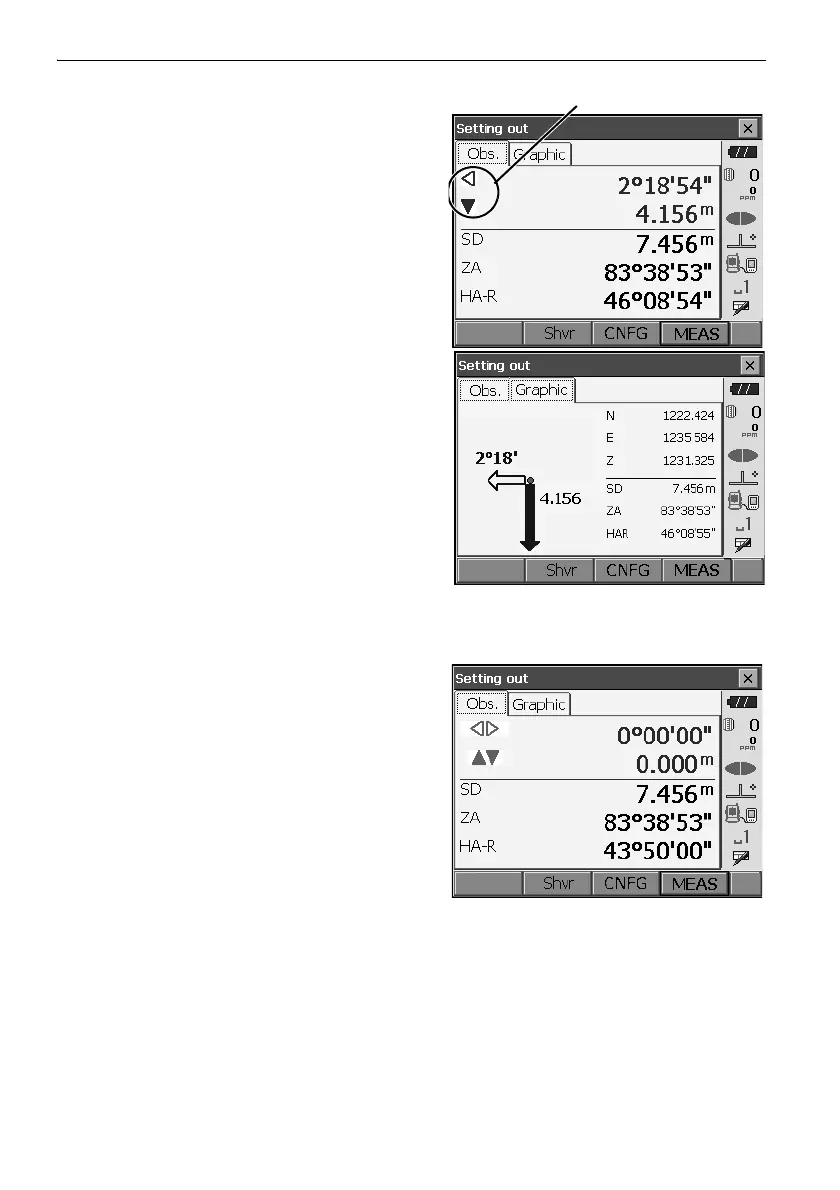

• Movement indicator (Red indicates that target
position is correct)
: (Viewed from OS) Move target to the left
: (Viewed from OS) Move target to the right
: Target position is correct
: (Viewed from OS) Move target closer
: (Viewed from OS) Move target away
: (Viewed from OS) Target position is correct
: Move target upward
: Move target downward
: Target position is correct
• Each time [Shvr] is pressed, the distance mode
changes from horizontal distance, height
difference, slope distance (REM), and (slope
distance).
• Press [CNFG] to set setting out accuracy. When
the position of the target is within this range both
arrows will be displayed to indicate that the
target position is correct.
7. Move the target until the distance to the setting-
out point reads 0m. When the target is moved
within the allowed range, all distance and position
arrows are displayed.
Arrows indicate direction to move
