Feedback Controlyzer DigiLock 110
Page 34
Status: 5.12.17
8.2.5.4 Display
On this tab the settings for displaying the data can be chosen.

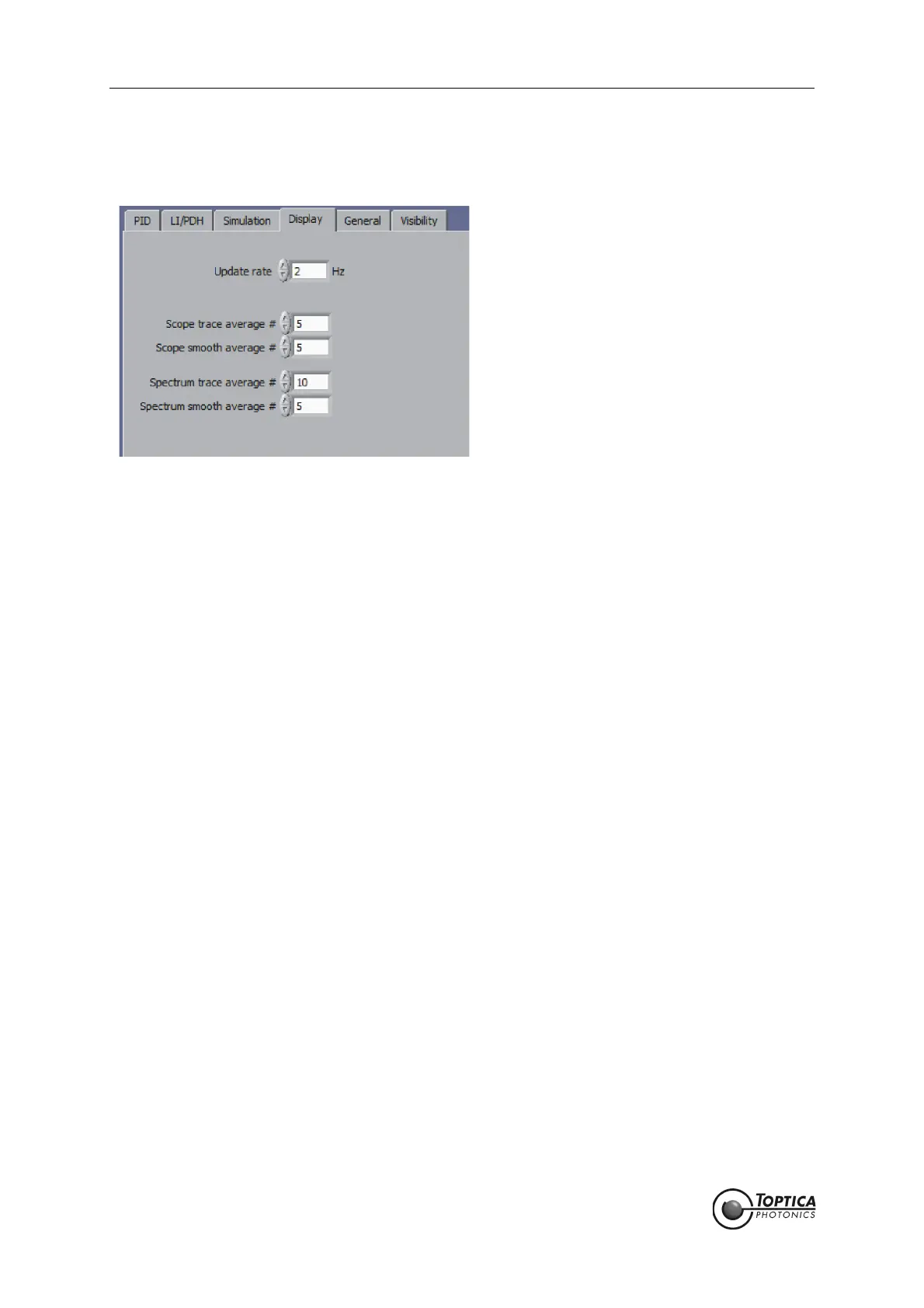

Figure 23 Display tab in the Settings function
Update rate: Rate at which new data sets are displayed in the various graphs.
Scope trace average #: Number of averaged data sets if the Avg-option is used in the Scope
display.
Scope smooth average #: Number of adjacent data points in one data set that are averaged if
the Sm-option is used in the Scope display.
Spectrum trace
average #: Number of averaged data sets if the Avg-option is used in the Spectrum
display.
Spectrum smooth
average #: Number of adjacent data points in one data set that are averaged if
the Sm-option is used in the Spectrum display.
