Tormach PCNC 1100 User Manual

Chapter 11
223
UM10349_PCNC1100_Manual_0916A
Diagrams and Parts List

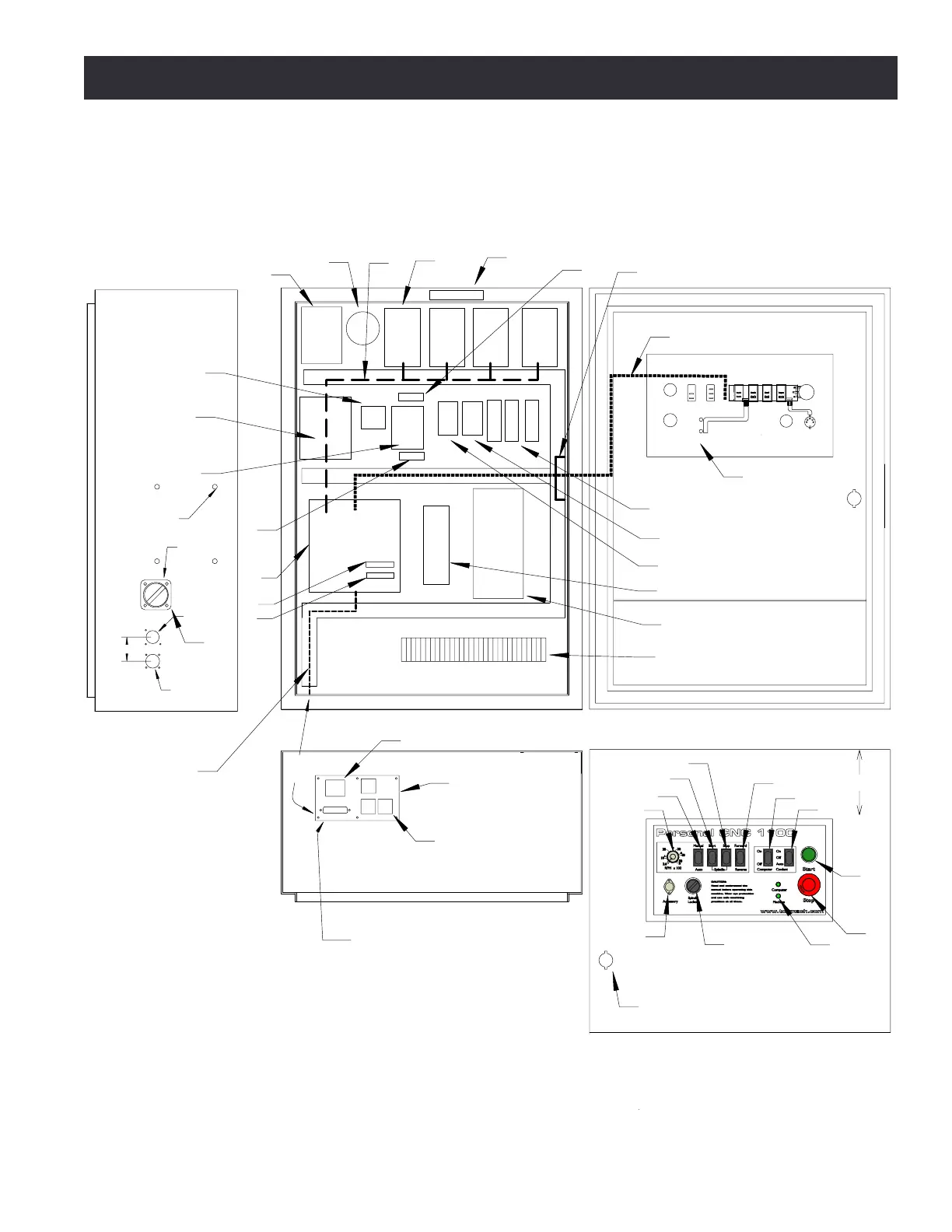

11.3 Electrical Cabinet
B
BOTTOM
XFM1
31097
CAP
filter
C2
C1
RIGHT SIDE
INSIDE BOX
INSIDE DOOR
OUTSIDE DOOR
TORMACH MACHINE
CONTROL BOARD
31045
DC BUS
BOARD
32005
XFM2
(30459)
10.5 CM
FAN
VFD
31036
30465
30465
STEPPER
DRIVER
32793
SEE MOUNTING
BOLT PATTERN
IN DETAIL
BELOW
20 in
Fuse FU7
fuse fuse fuse
Holes for arm mount
Main
Disconnect
4th Axis
E-stop Port
STEPPER
DRIVER
32000
STEPPER
DRIVER
32000
STEPPER
DRIVER
32000
15
22
32
31
6
16
5
2,3
12, 8
13, 8
21
33
34
35, 23
37
38
14
30
39
40
42
25
26
26
25
27
25
20
18,19
11
10
9
17
X AXIS
Y AXIS
Z AXIS
A AXIS
(OPTION)
Fuse FU3
1
4
BRAKING RESISTOR
31049
7
Fuse F1
Fuse F2
7A
7B
DIN CONNECTOR ASSY
31039
LED ASSY
P/N 31040
POT1
1
2
1
2
3
SW 1
Fwd/Rev
SW3
Start
SW4
Auto/Man
J11
J12
1
2
1
2
1
2
R W B G
SW2
Stop
R W B G
41
28
36

Tormach PCNC 1100 Specifications

General

Spindle Speed	100 - 5140 RPM
Spindle Taper	R8
Machine Type	CNC Mill
X Travel	18.0 in (457 mm)
Y Travel	9.5 inches
Z Travel	16.25 inches
Spindle Motor	1.5 hp
Voltage	220 VAC, Single Phase
Table Size	34.0 in x 9.5 in (864 mm x 241 mm)
