Tormach PCNC 1100 User Manual

Chapter 8
154
UM10349_PCNC1100_Manual_0916A
Accessories
8.9.3 Probe
Tormach’s two probe opons are used to:
• Digize a surface
• Probe a Z surface
• Probe X or Y surface
PN Description Polarity
31858 Digitizing Probe Active-High
32309 Passive Probe w/10 mm TTS Mount Passive-Low
In addion, automated probing funcons are available to:
• Find the center of a bore
• Find the center of a circular boss
• Find the corner of a vise
Probe/Tool Seer Polarity
Probe polarity must be set in the controller to match the polarity of the probing device being used.
Refer to the following table to determine the correct polarity for probe or tool seer.
PN Description Polarity
31875 Electronic Tool Setter (ETS) Active-High
31858 Digitizing Probe Active-High
32309 Passive Probe w/10 mm TTS Mount Passive-Low

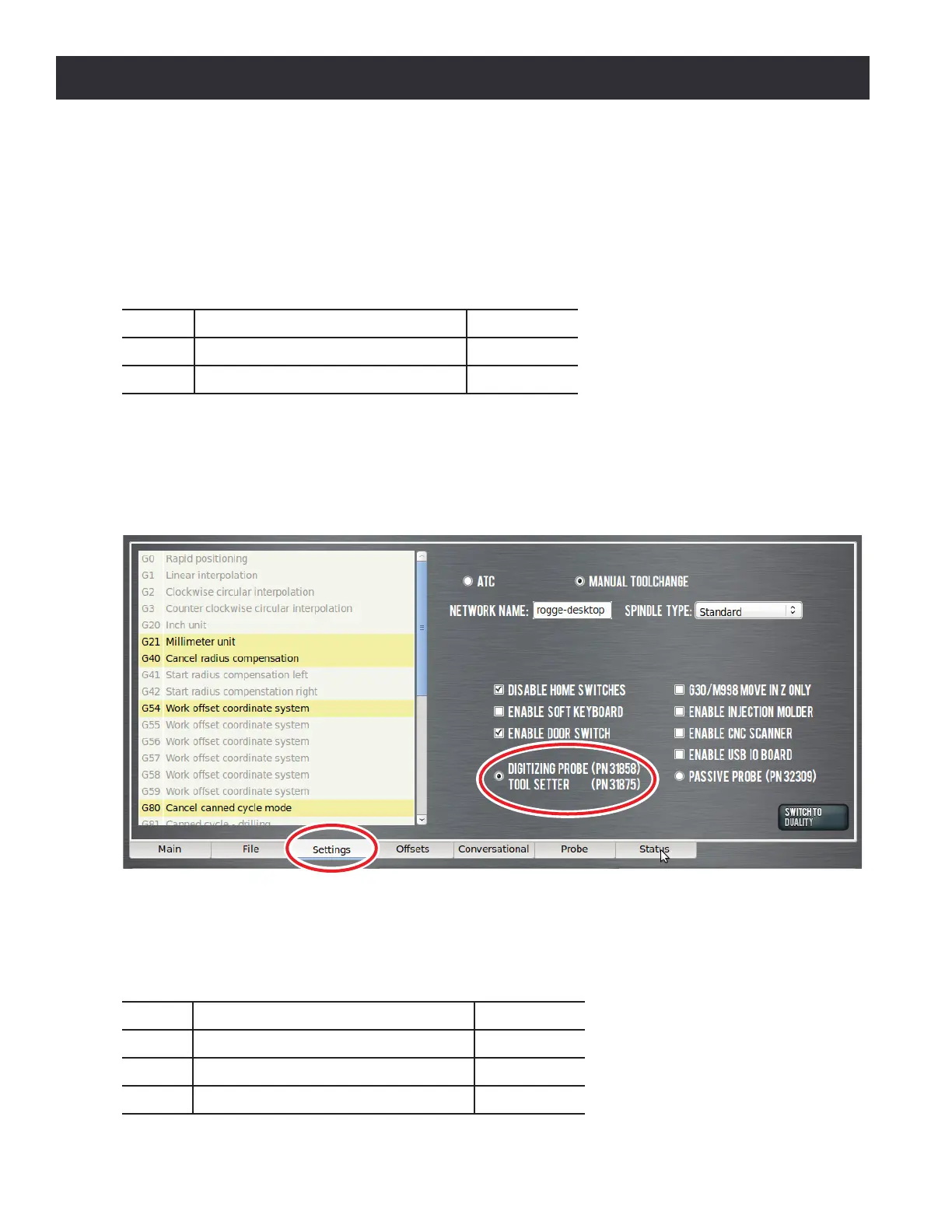

Figure 8.20

Tormach PCNC 1100 Specifications

General

Spindle Speed	100 - 5140 RPM
Spindle Taper	R8
Machine Type	CNC Mill
X Travel	18.0 in (457 mm)
Y Travel	9.5 inches
Z Travel	16.25 inches
Spindle Motor	1.5 hp
Voltage	220 VAC, Single Phase
Table Size	34.0 in x 9.5 in (864 mm x 241 mm)
