Tormach PCNC 1100 - Thread Mill Tab

Chapter 6
80
UM10349_PCNC1100_Manual_0916A
PathPilot Interface
Z Clear – This is the Z locaon the tool moves or retracts to at the start and end of a hole, as well as
moving between holes, so it must clear any obstrucons along the path between holes.

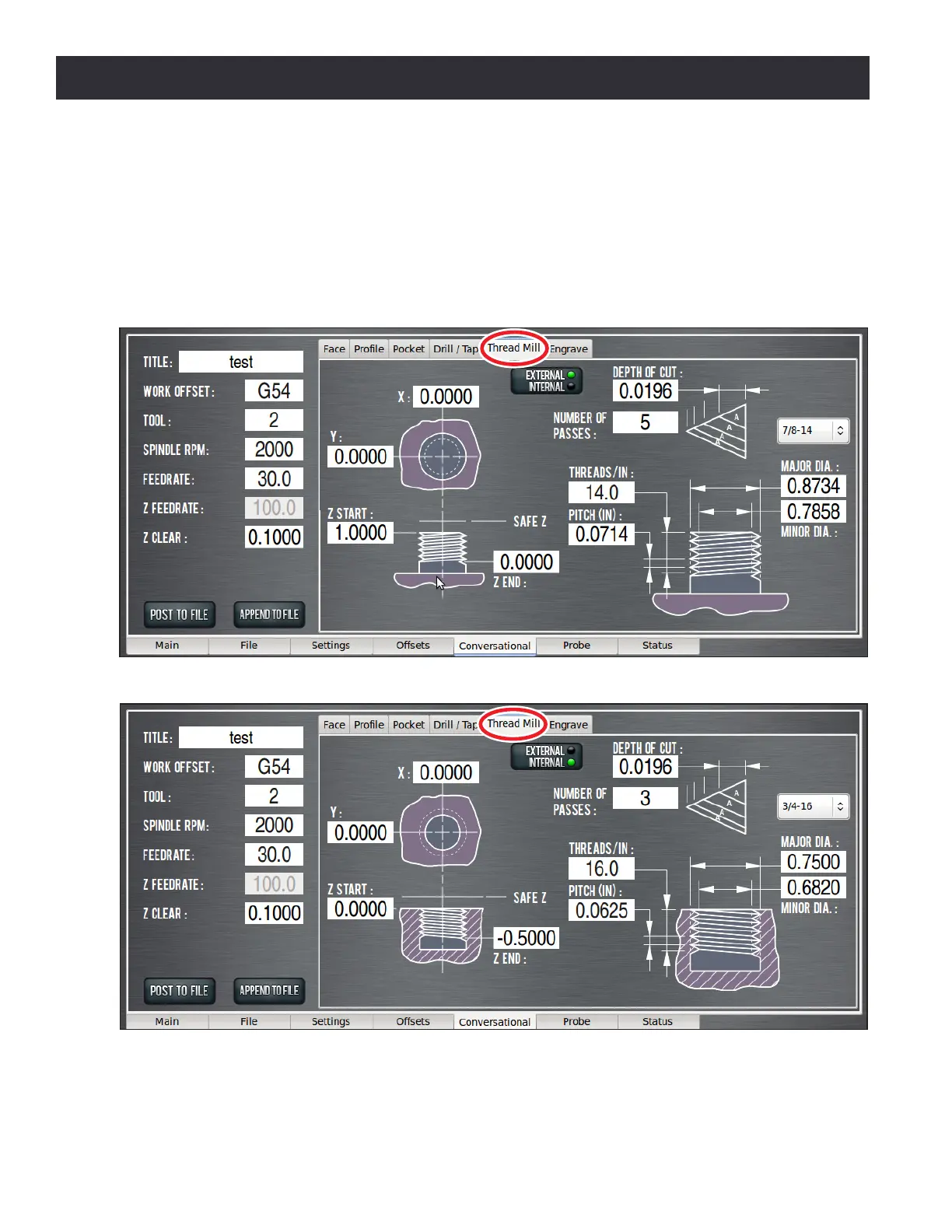

6.7.5 Thread Mill Tab
The thread milling roune produces helical tool paths needed for milling straight external or internal
right-handed threads based on pitch, diameter, and length (see Figures 6.28 and 6.29).
Figure 6.28
Figure 6.29
