Workman 1100/2100/2110Page 1 – 6Safety
Jacking and Other Instructions
Jack Vehicle
DANGER
POTENTIAL HAZARD
• A vehicle that is not properly supported
may become unstable.
WHAT CAN HAPPEN
• The vehicle may move or fall. Personal
injury or damage to the machine may result.
HOW TO AVOID THE HAZARD
• Make sure vehicle is parked on a solid level
surface, such as a concrete floor.
• Make sure engine is off and key is removed
from the ignition switch before getting off
the vehicle.
• Before raising the vehicle, remove any
attachments that may interfere with the safe
and proper raising of the vehicle.
• Always chock or block wheels to prevent
the vehicle from rolling.
• Do not start vehicle while it is on jack
stands or blocks without transaxle locked
in neutral.
• Make sure proper hoists, solid wooden
blocks, and jack stands are used to raise
and support the vehicle.

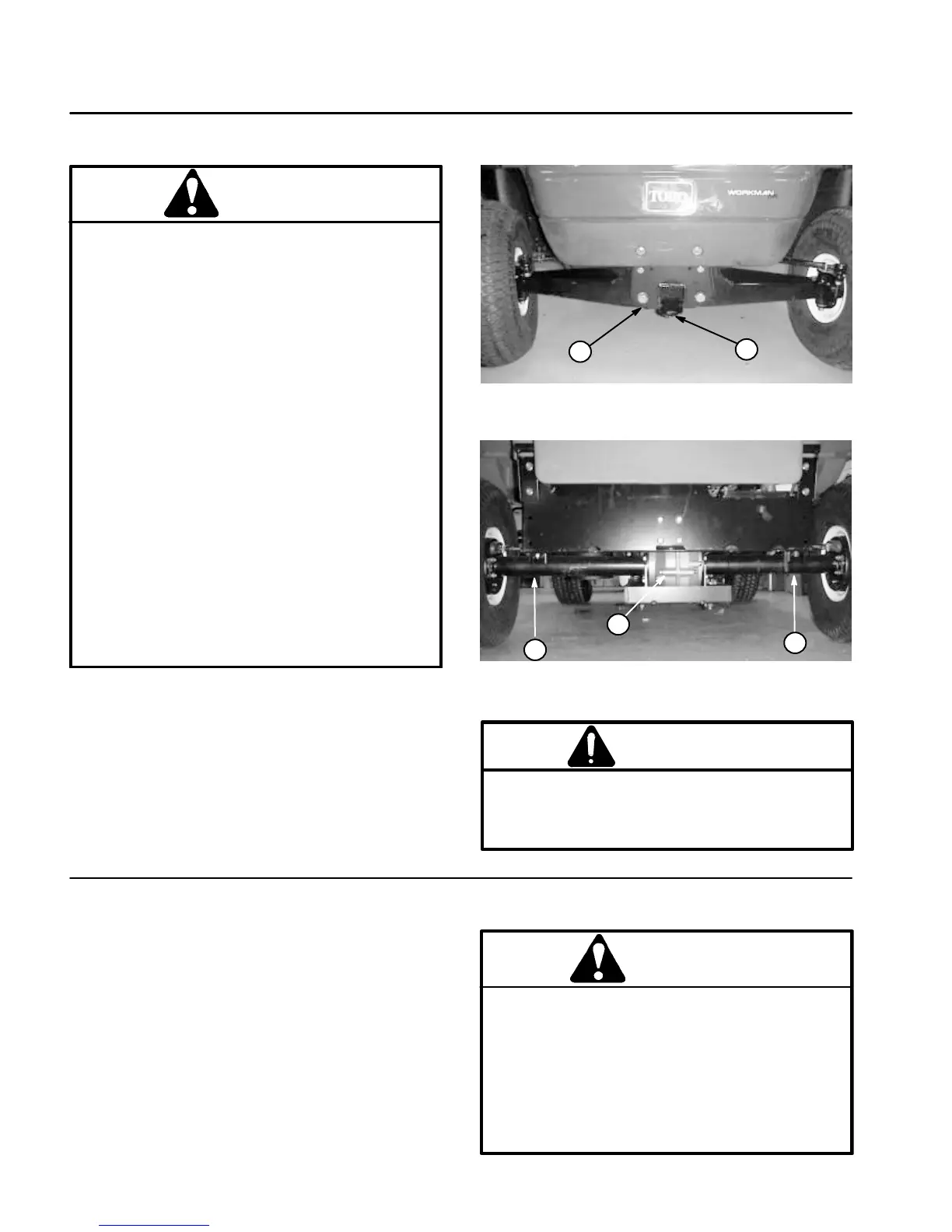

Locations
1. Jack front of the vehicle on the front of the frame and
behind the towing tongue (Fig. 1).
2. Jack rear of the vehicle under each rear axle tube. Do
not jack vehicle below the transaxle case (Fig. 2).
1. Front frame 2. Towing tongue
Figure 1
1
2
1. Axle tube 2. Transaxle case
Figure 2
2
1
1
WARNING
Whenever the engine is run for testing that re-
quires the rear wheels to spin, rear wheels
should be at least 1 inch (25 mm) off the ground
with the axle supported on jack stands.
Transport Vehicle
When moving the vehicle long distances, use a trailer or
flatbed truck. Make sure vehicle is secured to the trailer
properly.
1. Secure front of the vehicle to trailer at the towing
tongue (Fig. 1).
2. Secure rear of the vehicle to the trailer at each rear
axle tube (Fig. 2).
WARNING
POTENTIAL HAZARD
• Seats may become loose and fall off the
vehicle and trailer when transporting.
WHAT CAN HAPPEN
• Seats falling off the trailer may hit another
vehicle or become a road hazard.
HOW TO AVOID THE HAZARD
• Remove or secure seats with cord or strap.
