Workman 2100/2110Page 3 – 16Briggs & Stratton Gasoline Engine
Engine

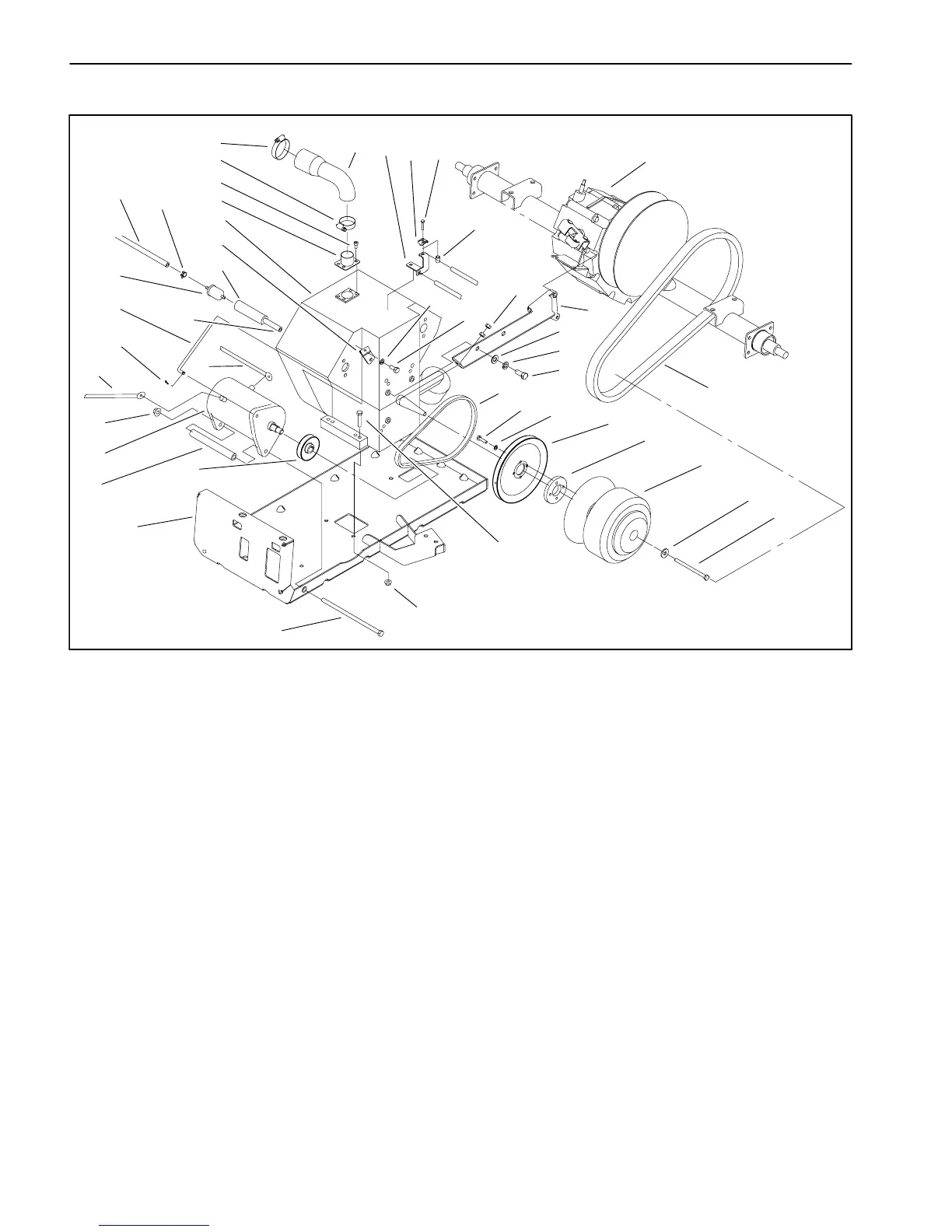

Figure 19
1. Hose clamp
2. Air intake hose
3. Cable bracket
4. Cable clamp
5. Cap screw
6. Threaded insert
7. Washer
8. Cap screw
9. Nut
10. Torque arm
11. Flat washer (2 used)
12. Lock washer (2 used)
13. Cap screw (2 used)
14. Starter V–belt
15. Cap screw (4 used)
16. Lock washer (4 used)
17. Engine pulley
18. Starter spacer
19. Drive belt
20. Drive clutch
21. Washer
22. Cap screw
23. Cap screw (4 used)
24. Flange lock nut (4 used)
25. Screw
26. Engine mount
27. Starter/generator pulley
28. Starter/generator pivot
29. Starter/generator
30. Flanged lock nut
31. Negative battery cable
32. Positive battery cable
33. Cotter pin
34. Starter rod
35. Fuel hose
36. Fuel filter
37. Fuel line clamp
38. Fuel line conduit
39. Briggs & Stratton engine
40. Intake bracket
41. Screw (4 used)
42. Hose clamp
43. Cable bracket
44. Transaxle with driven clutch
18
15
1
29
25
16
42
8
37
36
10
43
31
30
24
6
19
9
34
20
23
26
3
4
40
2
14
28
12
13
11
21
27
17
39
22
41
33
5
7
32
35
38
44
35
