Workman 1100/1110/2100/2110Page 7 – 30Chassis, Wheels, and Brakes (Rev. B)

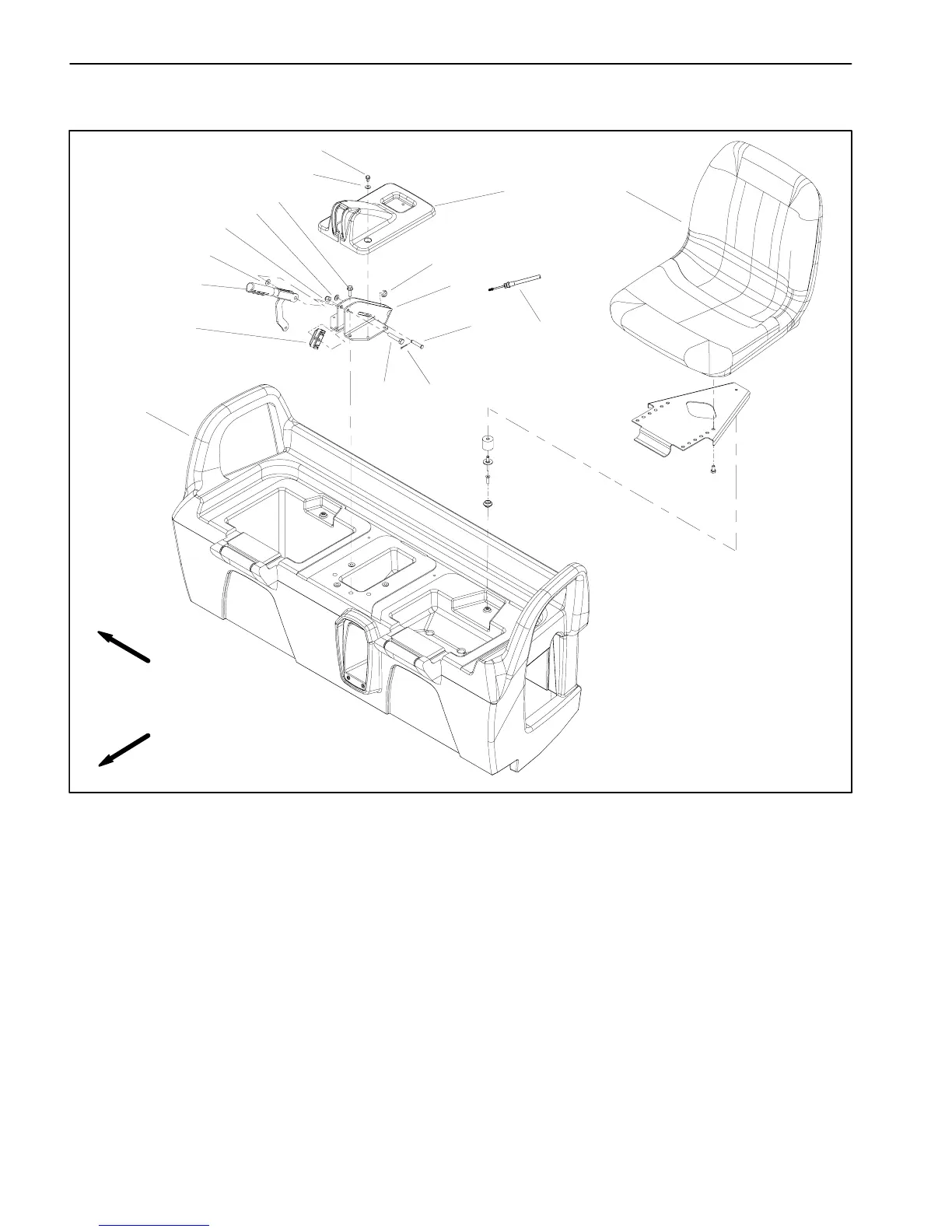

Parking Brake (Workman 1110 and 2110)
1. Parking brake cover
2. Operator seat
3. Seat base
4. Cable equalizer bracket
5. Parking brake lever
6. Curved washer
7. Lock nut
8. Flat washer
9. Flange head screw (4 used)
10. Flat washer (2 used)
11. Screw (2 used)
12. Cap screw
13. Cotter pin
14. Clevis pin
15. Parking brake cable (2 used)
16. Parking brake support
17. Cable retaining ring (2 used)
Figure 21
12
1
2
3
4
5
6
7
8
9
10
11
16
15
13
14
17
FRONT
RIGHT
