Toro 07253 Service Manual

Workman 1100/1110 Kohler Gasoline EnginePage 4 – 9
Service Drive Belt
Inspection
Note: Perform this maintenance procedure at the in-
terval specified in the Operator’s Manual or Chapter 2
– Product Records and Maintenance.
1. Park machine on a level surface, stop engine, en-
gage parking brake, and remove key from the ignition
switch.
2. Raise bed and secure with prop rod.
3. Put vehicle transmission in neutral (see Set Neutral
Lock Assembly in Chapter 1 – Safety).
4. Rotate and inspect belt for excessive wear or dam-
age. Replace as necessary.
Replacement
1. Rotate and route belt over the driven clutch.
2. Remove belt from the drive clutch.
3. Place new belt around drive clutch.
4. Rotate driven clutch while routing the belt on.

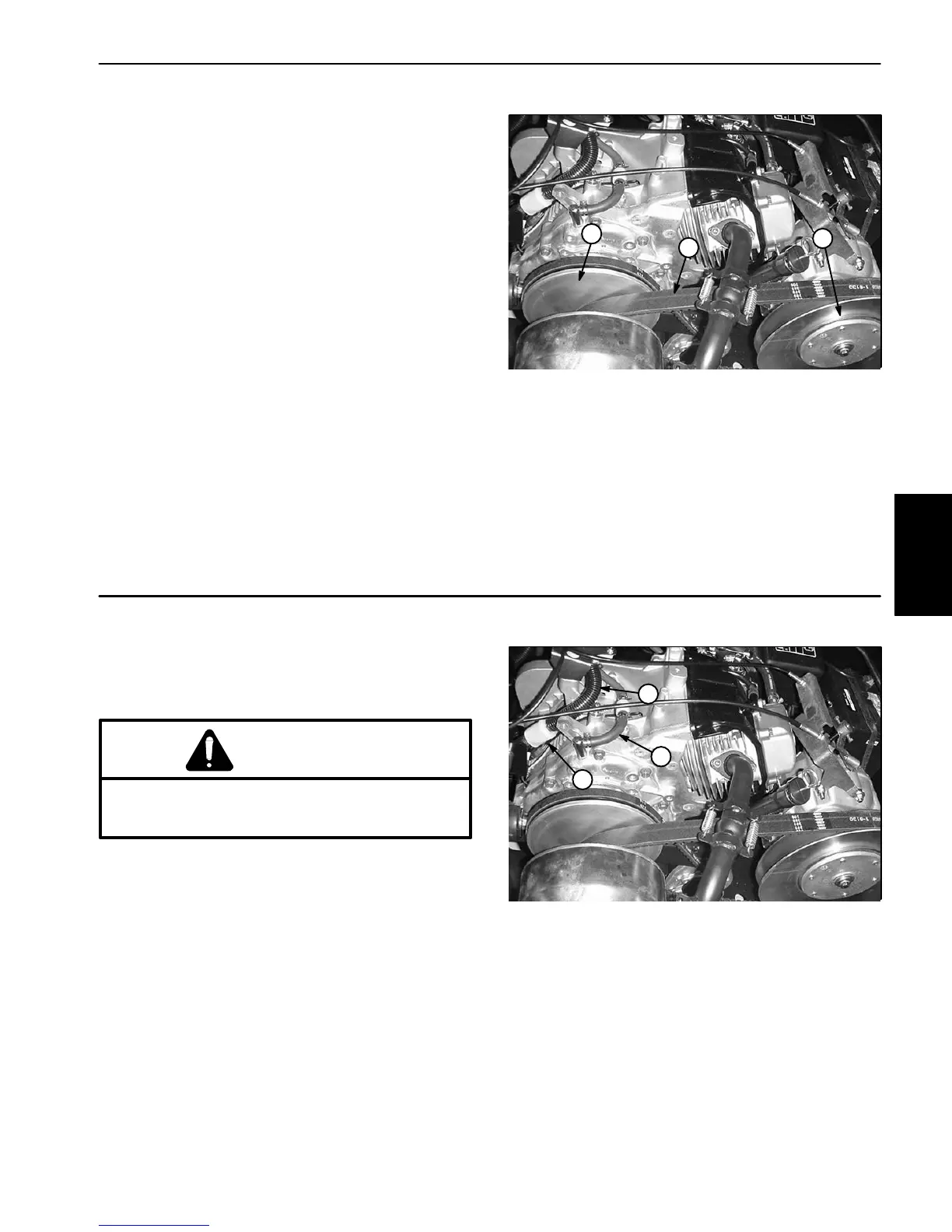

Figure 9
1. Drive clutch
2. Driven clutch
3. Drive belt
1
3
2
Replace Fuel Filter
Note: Perform this maintenance procedure at the in-
terval specified in the Operator’s Manual or Chapter 2
– Product Records and Maintenance.
WARNING
Use caution when working with fuel system com-
ponents (see Fill Fuel Tank and Fuel Safety Pre-
cautions).
1. Park machine on a level surface, stop engine, en-
gage parking brake, and remove key from the ignition
switch.
2. Raise bed and support with prop rod.
3. Place a clean container under fuel filter (Fig. 10).
4. Remove clamps securing fuel filter to fuel lines.
5. Remove fuel lines from fuel filter.
IMPORTANT: Mount filter so the arrow points in the di-
rection of fuel flow to the carburetor.
6. Install new fuel filter to fuel lines with clamps pre-
viously removed.
Figure 10
1. Fuel filter
2. Fuel line
3. Vacuum line
2
3
1
Kohler Gasoline
Engine
