Toro 07253 Service Manual

Workman 1100/1110/2100/2110 Page 7 – 45 Chassis, Wheels, and Brakes (Rev. B)

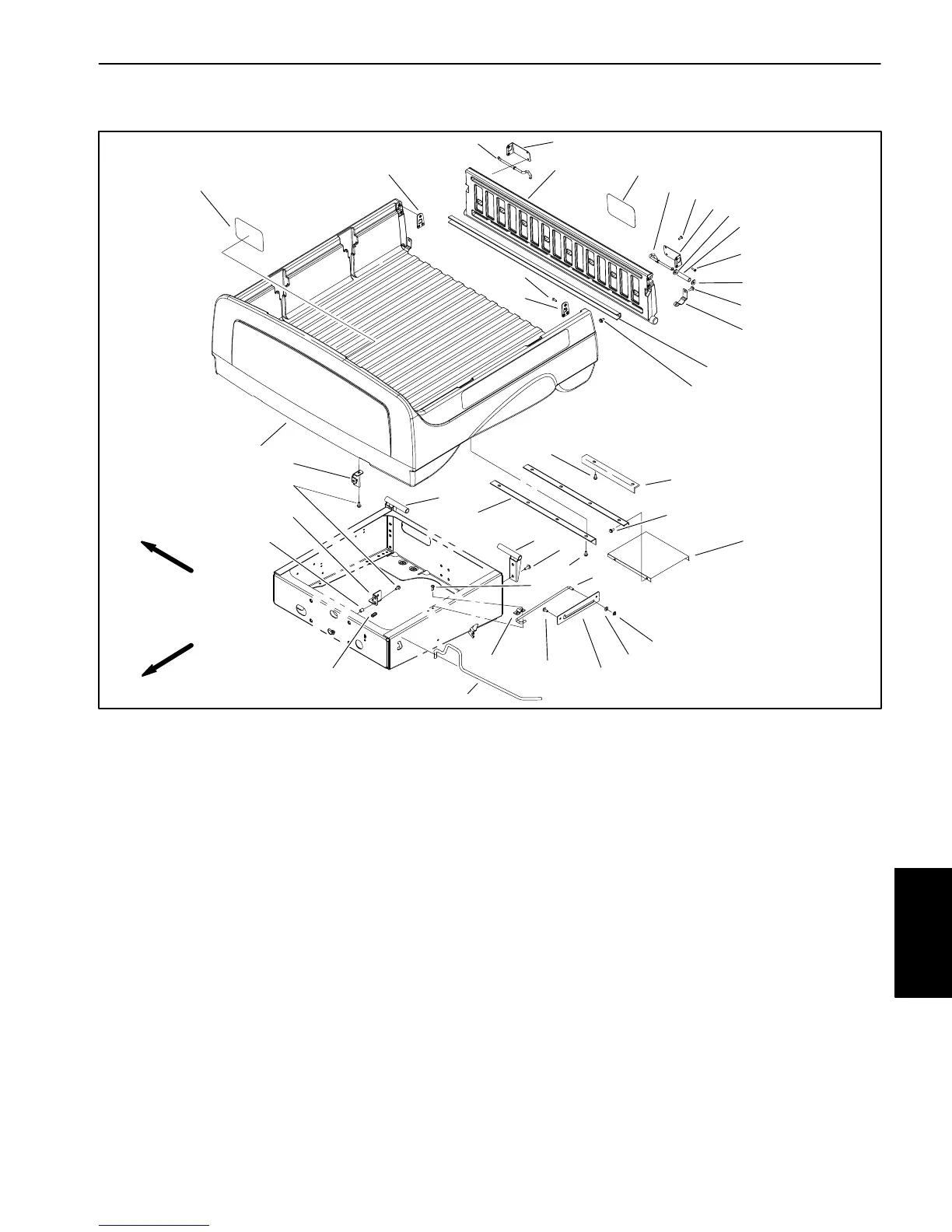

Cargo Bed and Tailgate
1. Tailgate rod (RH)
2. Tailgate latch bracket (RH)
3. Tailgate
4. Cap screw
5. Striker plate (LH)
6. Decal
7. Tailgate rod (LH)
8. Screw
9. Tailgate latch bracket (LH)
10. Latch washer
11. Spring
12. Tailgate pivot bracket
13. Tailgate channel
14. Hex flange head screw
15. Pivot bracket (RH)
16. Striker plate (RH)
17. Pivot bracket (LH)
18. Hex flange head screw
19. Box brace (short)
20. Box brace (long)
21. Heat shield
22. Screw
23. Decal
24. Prop rod
25. Prop rod bracket
26. Flat washer
27. Push on retainer
28. Cap screw
29. Prop rod clip
30. Latch rod
31. Spring
32. Insert nut
33. Latch bracket
34. Latch hook (RH)
35. Cargo bed
Figure 30
6
3
8
9
4
7
14
12
2
1
16
27
26
25
24
14
29
17
18
32
33
14
34
35
4
5
10
11
10
28
30
31
13
15
14
19
20
22
21
14
14
23
FRONT
RIGHT
Removal
1. Park machine on a level surface, stop engine, set
parking brake, and remove key from the ignition switch.
2. Remove hex flange head screws securing both pivot
brackets to the rear frame.
3. Release latch rod from the latch bracket. Remove
cargo bed from the frame. Disassemble cargo bed as
necessary using Figure 30 as a guide.
Installation
1. Reassemble cargo bed using Figure 30 as a guide.
2. Position cargo bed to the frame locking the latch rod
to the latch bracket.
3. Secure both pivot brackets to the rear frame with hex
flange head screws.
