Toro 07253 Service Manual

Workman 1100/1110/2100/2110Page 7 – 32Chassis, Wheels, and Brakes (Rev. B)

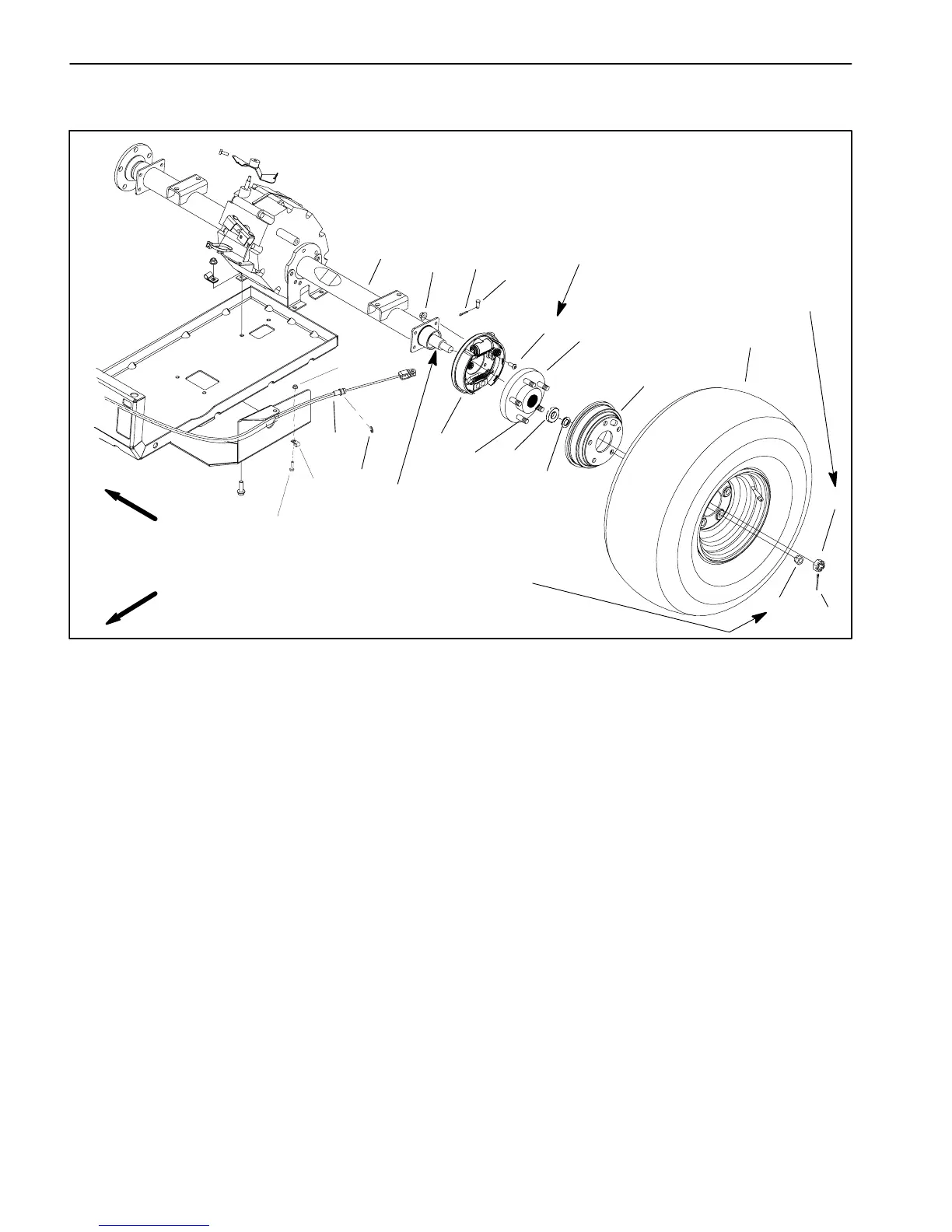

Rear Wheels and Brakes (Workman 1110 and 2110)
1. Wheel assembly
2. Lug nut
3. Castle nut
4. Brake drum
5. Socket head screw
6. Brake assembly (LH shown)
7. Clevis pin
8. Cotter pin
9. Cotter pin
10. Flange lock nut
11. Transaxle
12. Parking brake cable
13. Wheel hub
14. Washer
15. Spring washer
16. Wheel stud
17. Flange nut
18. Retaining ring
19. R–clamp
20. Cap screw
Figure 22
10
9
8
7
6
5
4
1
2
11
12
3
FRONT
RIGHT
45 to 65 ft–lb
(61 to 88 N–m)
120 to 200 ft–lb
(163 to 271 N–m)
13
14
15
20 ft–lb
(27 N–m)
Antiseize
Lubricant
16
17
18
19
20
