Workman 1100/1110Page 4 – 14Kohler Gasoline Engine
Engine

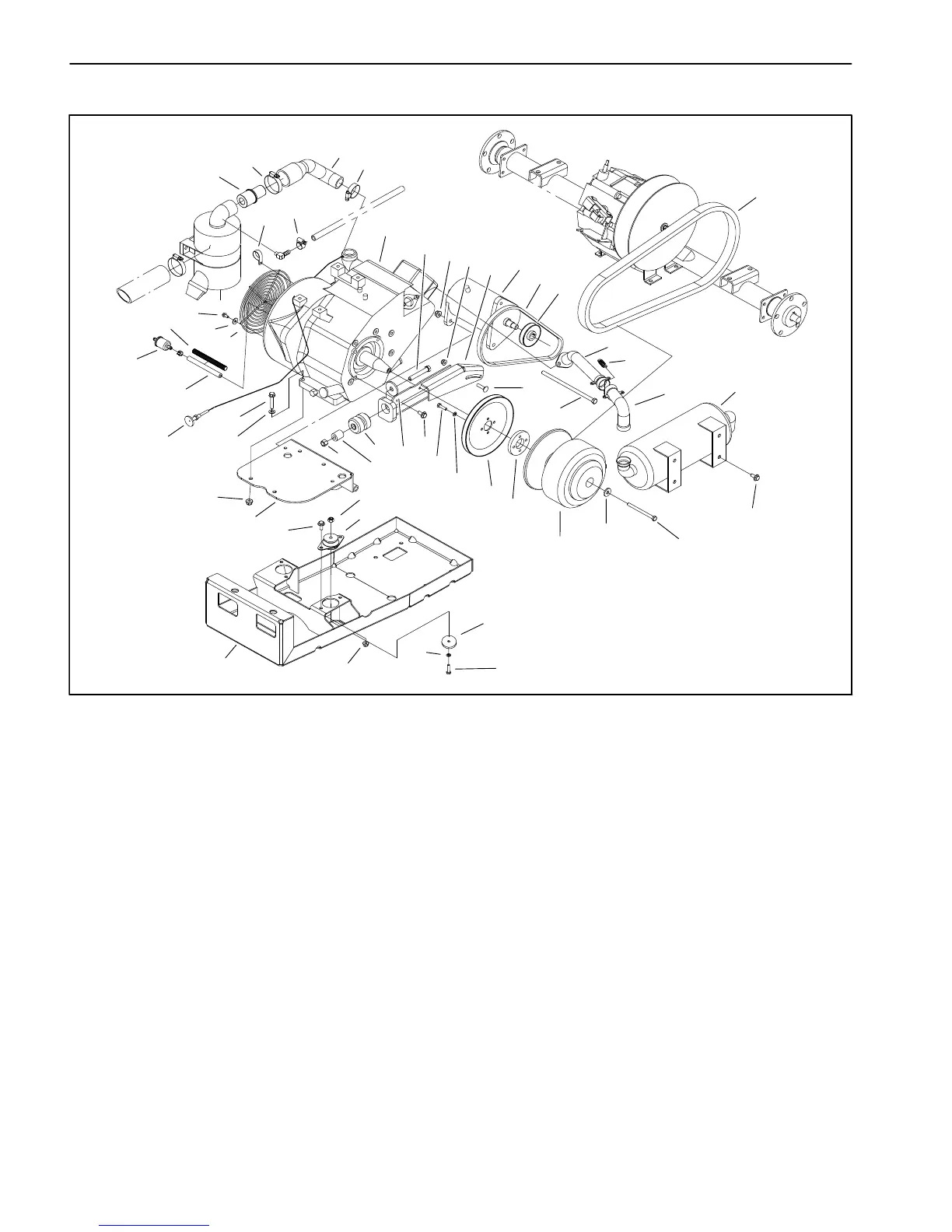

Figure 17
1. Kohler engine
2. Exhaust spring
3. Intake hose
4. Hose clamp
5. Hose clamp
6. Muffler
7. Exhaust manifold
8. Exhaust coupler
9. Cap screw
10. Lock washer
11. Washer
12. Drive clutch
13. Drive belt
14. Starter V–belt
15. Cap screw
16. Cap screw
17. Fuel filter
18. Engine pulley spacer
19. Starter/generator
20. Starter pulley
21. Engine pulley
22. Screw
23. Fuel hose
24. Fuel hose conduit
25. Engine mount assembly
26. Frame spacer
27. Lock nut
28. Cap screw
29. Flange head screw
30. Flat washer
31. Engine mount
32. Engine base
33. Iso mount
34. Choke cable
35. Starter bracket
36. Intake restrictor
37. Flange nut
38. Flange nut
39. Cap screw
40. Cap screw
41. Carriage bolt
42. Thrust washer
43. Cap screw
44. Hose clamp
45. Clamp
46. Flat washer
47. Rebound washer
48. Static debris screen
49. Screw
50. Washer
36
3
44
4
13
38
14
20
19
6
11
15
16
18
21
41
10
9
31
33
37
40
32
26
34
37
43
28
42
25
35
27
29
2
1
37
7
5
8
24
23
17
47
30
38
48
50
49
22
45
46
39
12
