Workman 1100/1110/2100/2110 Page 7 – 9 Chassis, Wheels, and Brakes (Rev. B)
Adjust Parking Brake (Workman 1110 and 2110)
1. Pry the rubber cover off of the parking brake.
2. Loosen the set screw securing the knob to the park-
ing brake lever (Fig. 3).
3. Rotate the knob until a force of 30–35 lb.
(133–156 N) is required to actuate the lever.
4. Tighten the set screw and install the rubber cover.

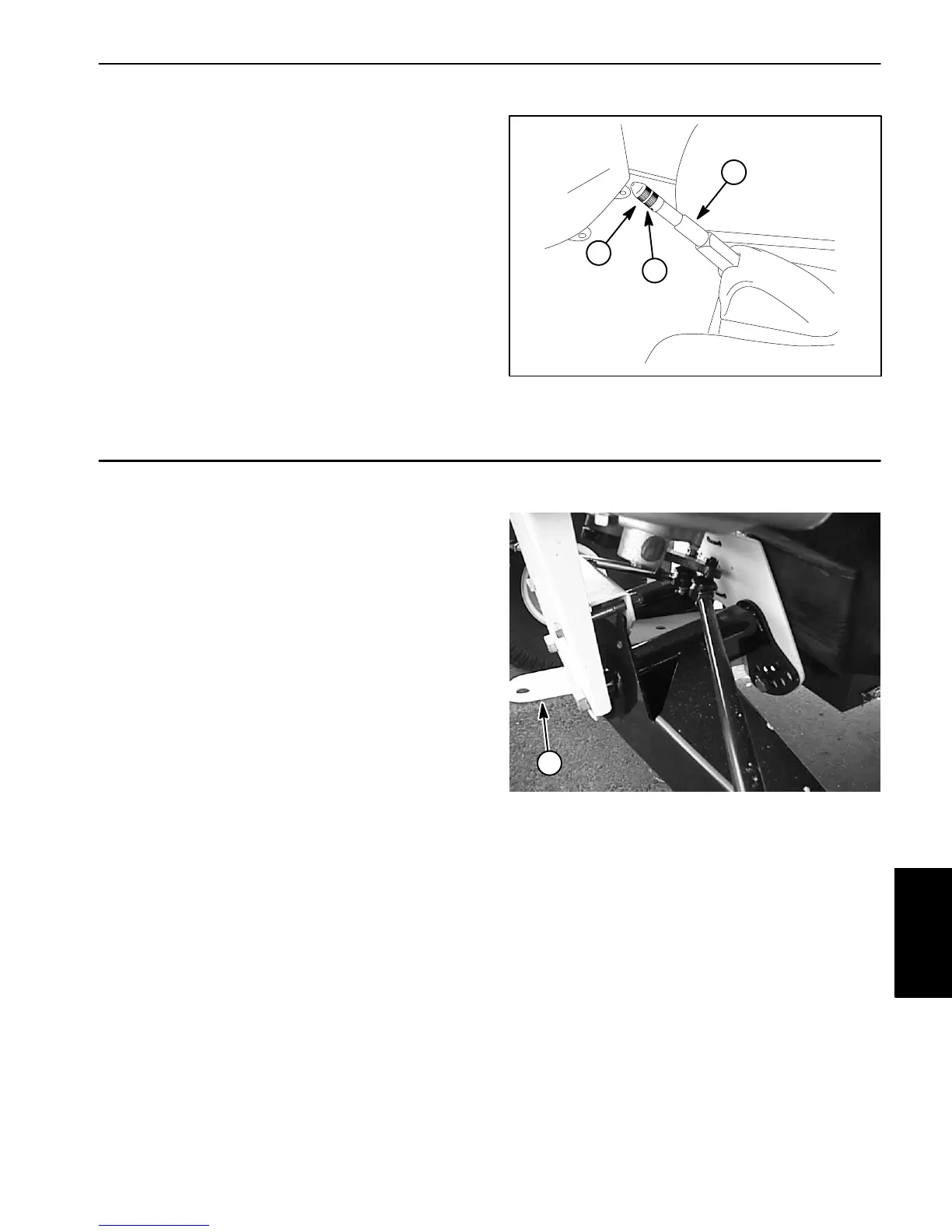

1. Parking brake lever
2. Brake knob
3. Set screw
Figure 3
3
2
1
Check Front Ride Height
1. Adjust tire pressures to 12 psi before checking front
ride height.
2. With a 175 to 225 lb (79 to 102 kg) operator in the
driver’s seat, drive vehicle back and forth a few times on
a level surface to relax suspension.
3. Stop vehicle. With operator still in driver’s seat and
wheels pointed straight ahead, measure the front ride
height. The front ride height is the distance from the bot-
tom of the front towing tongue to the ground. Front ride
height should be as follows:
A. For the Workman 1100, front ride height should
be from 7–1/2 to 8–1/4 inches (19.1 to 21 cm).
B. For the Workman 1110, 2100 and 2110, front ride
height should be from 8–3/4 to 9–1/2 inches (22.2 to
24.1 cm).
4. If the ride height is incorrect, adjustment needs to be
made (see Adjust Front Ride Height).
1. Front towing tongue
Figure 4
1
and Brakes
Chassis, Wheels,
