Toro 07253 Service Manual

Workman 1100/1110/2100/2110Page 6 – 18Electrical System

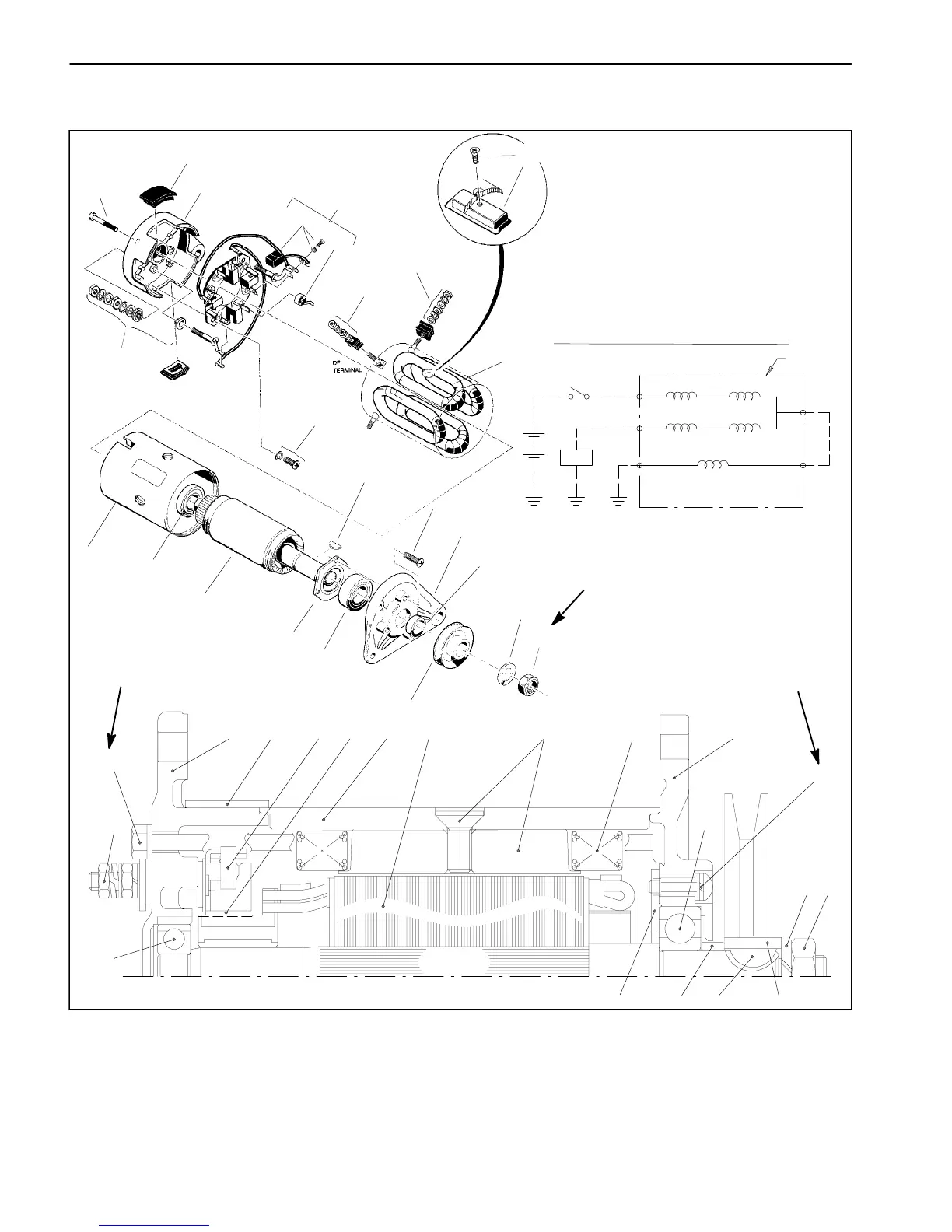

Starter/Generator Service
1. Yoke
2. Armature kit
3. Ball bearing
4. Bearing retainer
5. Ball bearing
6. Spacer
7. Through bolt & flat washer
8. Brush cover
9. Screw, lock washer, & flat washer
10. Spring washer
11. Hex nut
12. Woodruff key
13. Screw and washer
14. End cover (front)
15. Pulley
16. Pole piece and set screw
17. Field coil (stator) assembly
18. Screw and mold assembly
19. Screw set
20. Screw set
21. End cover (commutator)
22. Brush holder kit
23. Brush spring
24. Brush and screw set
Figure 22
2
3
4
5
6
7
10
16
17
19
20
22
23
24
18
11
13
14
1
7
27
23 248
3
14
26 2 16
5
12 15
10 11
6
15
12
1
8
9
17
9
4
21
FIELD(STATOR)
ARMATURE
(ROTOR)
REG.
DF
A2A1
F1
F2
WIRING DIAGRAM
MOTOR
95.5 to 104 in–lb
(10.8 to 11.8 N–m)
15 to 25 ft–lb
(20 to 34 N–m)
35 to 43 in–lb
(4.0 to 4.9 N–m)
