Workman 1100/1110/2100/2110Page 7 – 44Chassis, Wheels, and Brakes (Rev. B)
Front Hood
1. Decal
2. Power point
3. Cap
4. Ignition switch
5. Ignition key
6. Hole plug
7. Oil light
8. Light switch
9. Hourmeter
10. Decal
11. Hex flange head screw
12. Flange lock nut
13. Fender (LH) (shown)
14. Fender (RH) (not shown)
15. Self tapping screw
16. Flange lock nut
17. Decal
18. Reflector
19. Lock washer
20. Cap screw
21. Plastic bumper
22. Headlight
23. Headlight mount
24. Decal
25. Self tapping screw
26. Hood
27. Manuals tube
28. Hex flange head screw
29. R–clamp
30. Dash
31. Flat washer
32. Cap screw

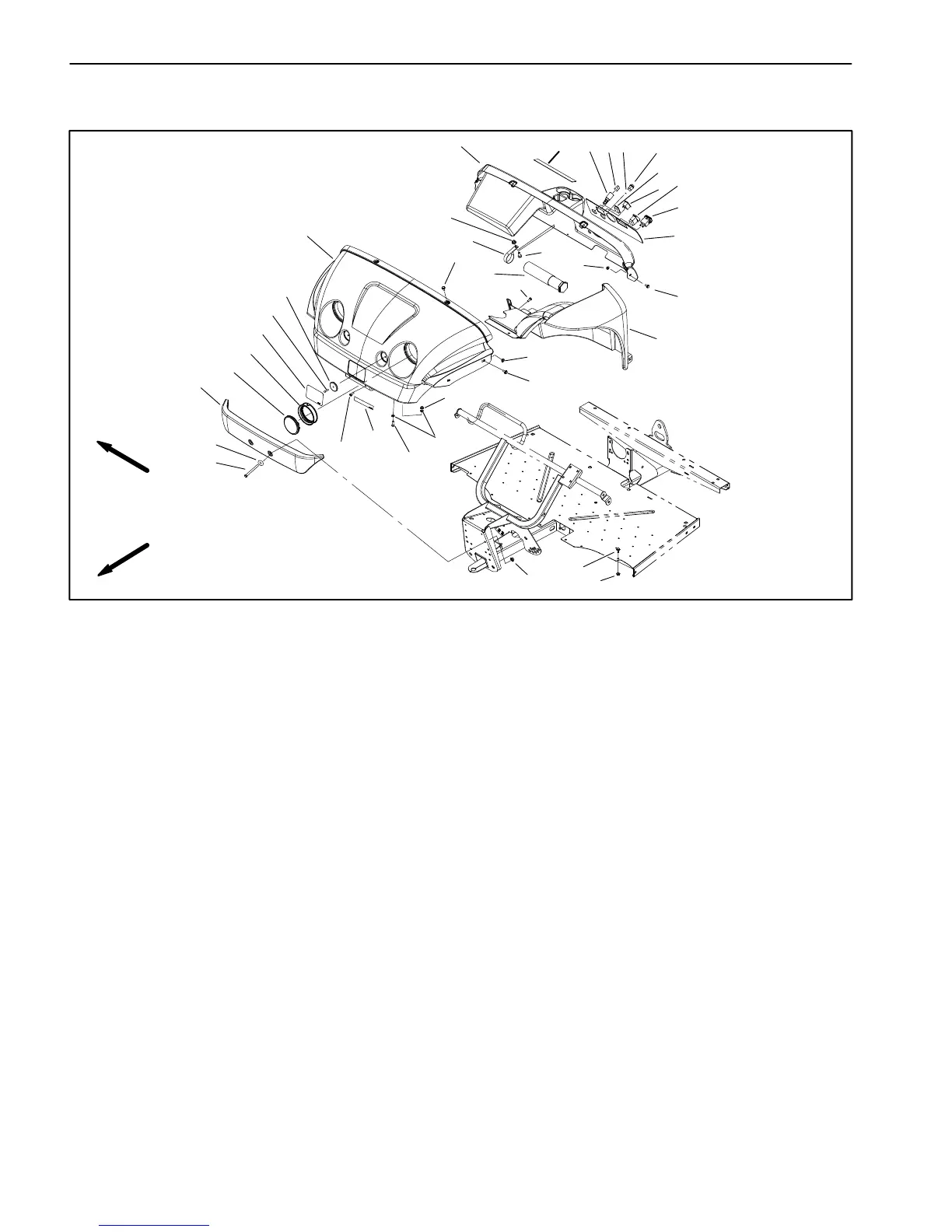

Figure 29
1
30
13
14
11
12
26
21
17
22
23
24
18
20
19
2
11
11
11
3
4
5
7
8
9
6
10
15
25
32
16
15
29
27
28
16
12
12
31
12
FRONT
RIGHT
Removal
1. Park machine on a level surface, stop engine, set
parking brake, and remove key from the ignition.
2. Remove screws attaching the wire harness to each
head light.
3. Remove both self tapping screws (15) securing the
center–lower hood to the front frame support.
4. Remove flange lock nut (12), both flat washers (31),
and cap screw (32) securing the hood to each fender
front.
5. Remove both flange lock nuts (12) and hex flange
head screws (11) securing the hood to the top of each
fender.
6. Remove both hex flange head screws (11) securing
the hood to the dash. Remove hood from the vehicle.
Installation
NOTE: Do not tighten fasteners securing the hood until
all fasteners are in place.
1. Position hood to the machine. Secure hood to the
dash with both hex flange head screws (11).
2. Secure hood to the top of each fender with two hex
flange head screws (11) and flange lock nuts (12).
3. Secure hood to each fender front with cap screw
(32), two flat washers (31), and flange lock nut (12).
4. Secure center–lower hood to the front frame support
with two self tapping screws (15).
5. Connect each headlight to the wire harness with
screws. Tighten all fasteners securing the hood.
