Rev. D
Workman 1100/1110/2100/2110Page 7 – 28Chassis, Wheels, and Brakes (Rev. B)

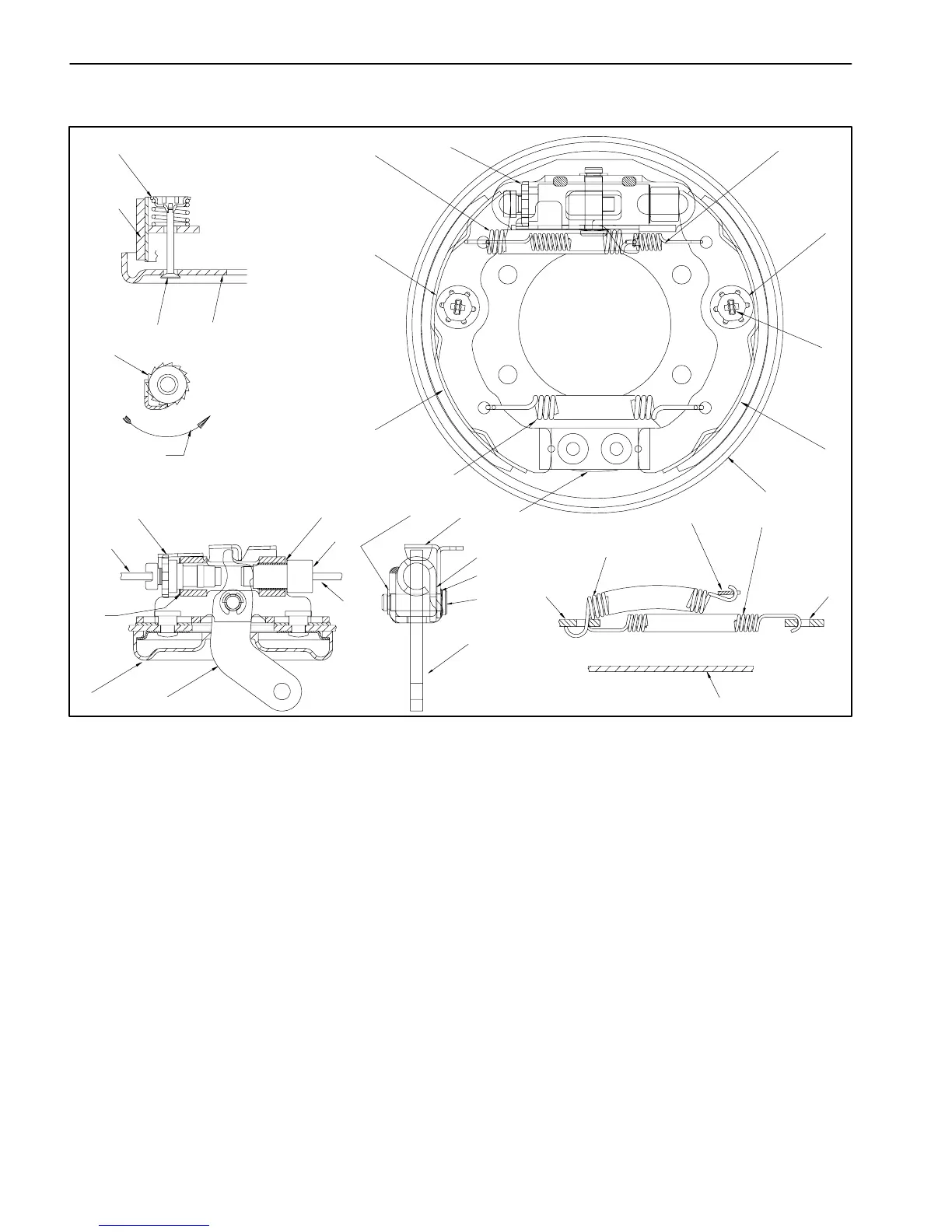

Rear Brake Service (Workman 1100 and 2100)
Figure 20
1. Backing plate
2. Hold down pin
3. Top shoe–to–shoe spring
4. Bottom shoe–to–shoe spring
5. Auto adjust spring
6. Shoe cup (spring loaded)
7. Brake shoe
8. Actuator lever
9. Adjusting screw
10. PTFE coated washer
11. Push rod
12. Shim washer
13. Protective boot
14. Pivot pin
15. Wave washer
16. Washer
17. Adjusting lever
18. Retaining clip
19. Anchor abutment
ROTATION TO
EXPAND BRAKE SHOES
9
4
7
6
5
2
1
7
6
3
9
9
7
10
13
8
12
11
7
18
17
16
15
14
8
5
3
1
7
7
17
1
2
7
6
19
