Workman 1100/1110/2100/2110Page 7 -- 14Chassis, Wheels, and Brakes (Rev. B)

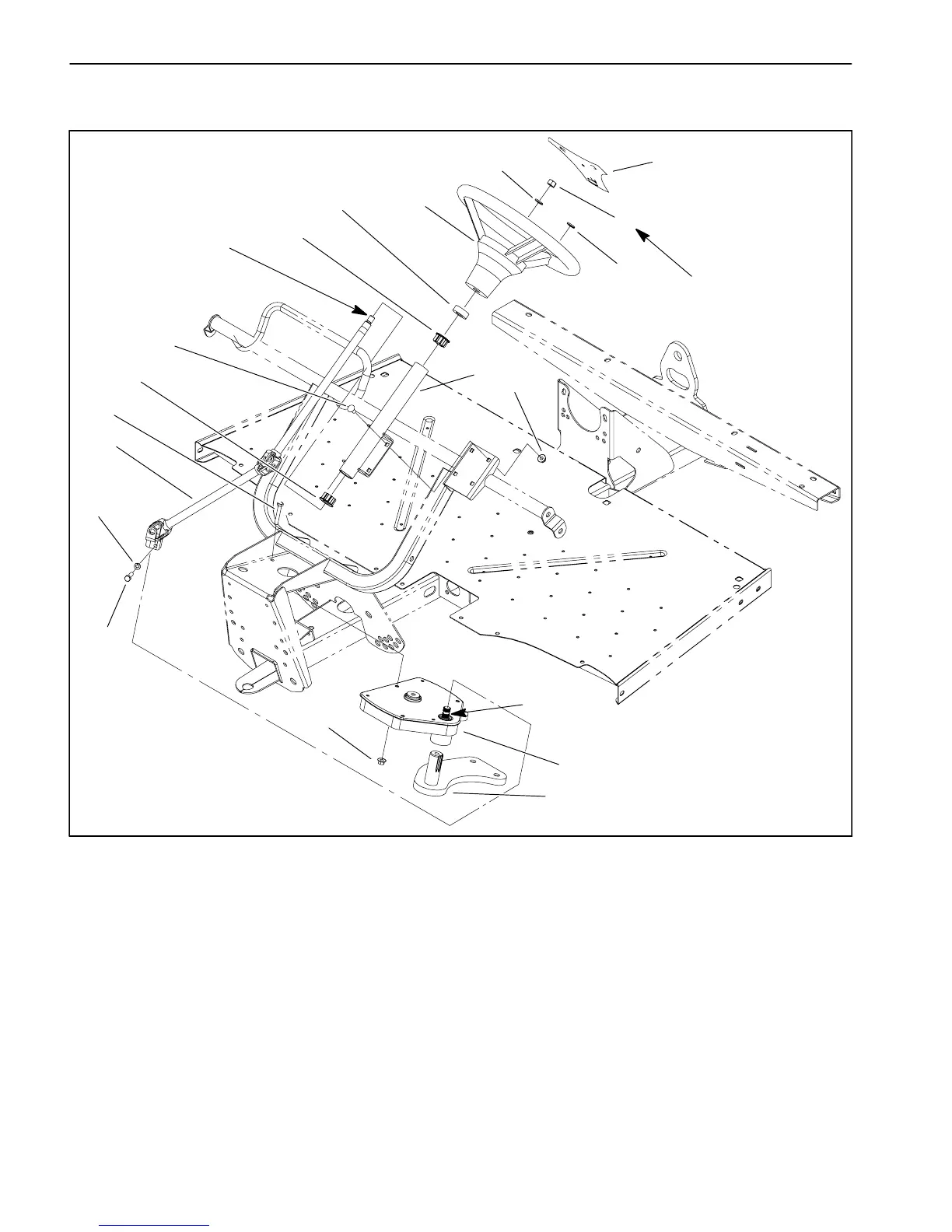

Upper Steering
1. Nut
2. Lock washer
3. Steering wheel
4. Flanged lock nut
5. Steering gearbox
6. Cap screw
7. Washer
8. Steering shaft
9. Cap screw
10. Upper steering bushing
11. Carriage screw
12. Steering column
13. Dust cover
14. Steering wheel cover
15. Decal
16. Pitman arm
Figure 10
13
6
2
10
3
8
4
9
5
12
1
11
7
10
4
15
14
16
Antiseize
lubricant
Antiseize
lubricant
13 to 17 ft--lb
(18to23N--m)
Removal
1. Park machine on a level surface, stop engine, set
parking brake, and remove key from the ignition switch.
2. Remove front hood to gain access to the steering
mechanism (see Front Hood Removal).
3. Remove steering wheel cover carefully from the
steering wheel. R emove nut and lock washer securing
the steering wheel to the steering shaft. Pull wheel from
the shaft.
4. Remove cap screw and lock washer securing the
lower steering shaft knuckle to the steering gearbox
shaft. Pull knuckle from the gearbox shaft.
Rev. C
