Workman 1100/1110/2100/2110Page 6 – 8Electrical System
Hour Meter
IMPORTANT: Make sure to observe polarity on the
hour meter terminals when testing. Damage to the
meter may result from an improper connection.
1. Isolate hour meter from the circuit.
2. Connect positive (+) terminal of a 12 VDC source to
the positive terminal of the hour meter.
3. Connect negative (–) terminal of the voltage source
to the other terminal of the hour meter.
4. The hour meter should move 1/10 of an hour in six
minutes.
5. Disconnect voltage source from the hour meter. Re-
connect hour meter to the circuit.

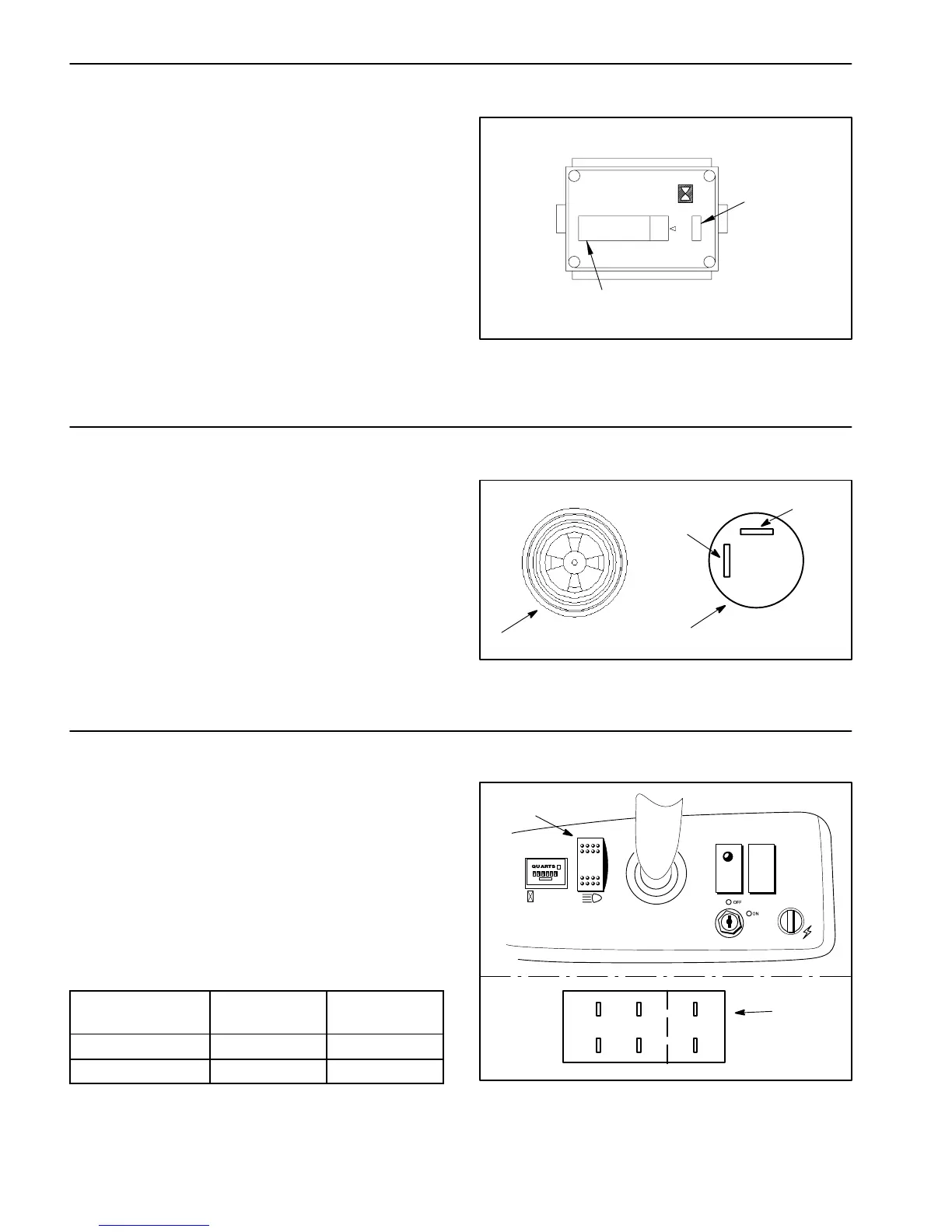

Figure 5
RUNNING: INDICATOR
WINDOW
1/10 WHEEL: WHITE W/BLACK NUMBERS
HOUR WHEELS: BLACK W/WHITE NUMBERS
1
–
10
HOURS
0 0 0 0 0
QUARTZ
Audio Alarm (Reverse)
IMPORTANT: Make sure to observe polarity on the
alarm terminals when testing. Damage to the alarm
may result from an improper connection.
1. Isolate alarm from the circuit. Correctly connect
12VDC source to the terminals (Fig. 6).
2. Alarm should sound. Remove voltage source from
the alarm. Reconnect alarm to the circuit or replace as
needed.
1. Top view
2. Bottom view
3. Positive (+) terminal
4. Negative (–) terminal
Figure 6
1
2
3
4
Headlight Switch
The headlight switch is located on the control panel (Fig.
7). This rocker switch allows the headlights to be turned
on and off.
The switch terminals are marked as shown in Figure 7.
The circuitry of the headlight switch is shown in the chart
below. With the use of a multimeter (ohms setting), the
switch functions may be tested to determine whether
continuity exists between the various terminals for each
position. Verify continuity between switch terminals.
SWITCH
POSITION
NORMAL
CIRCUITS
OTHER
CIRCUITS
ON 2 + 3 5 + 6
OFF 1 + 2 4 + 5
1. Headlight switch 2. Back of switch
Figure 7
132
45 6
1
2
