Workman 1100/2100/2110 Drive TrainPage 5 – 25

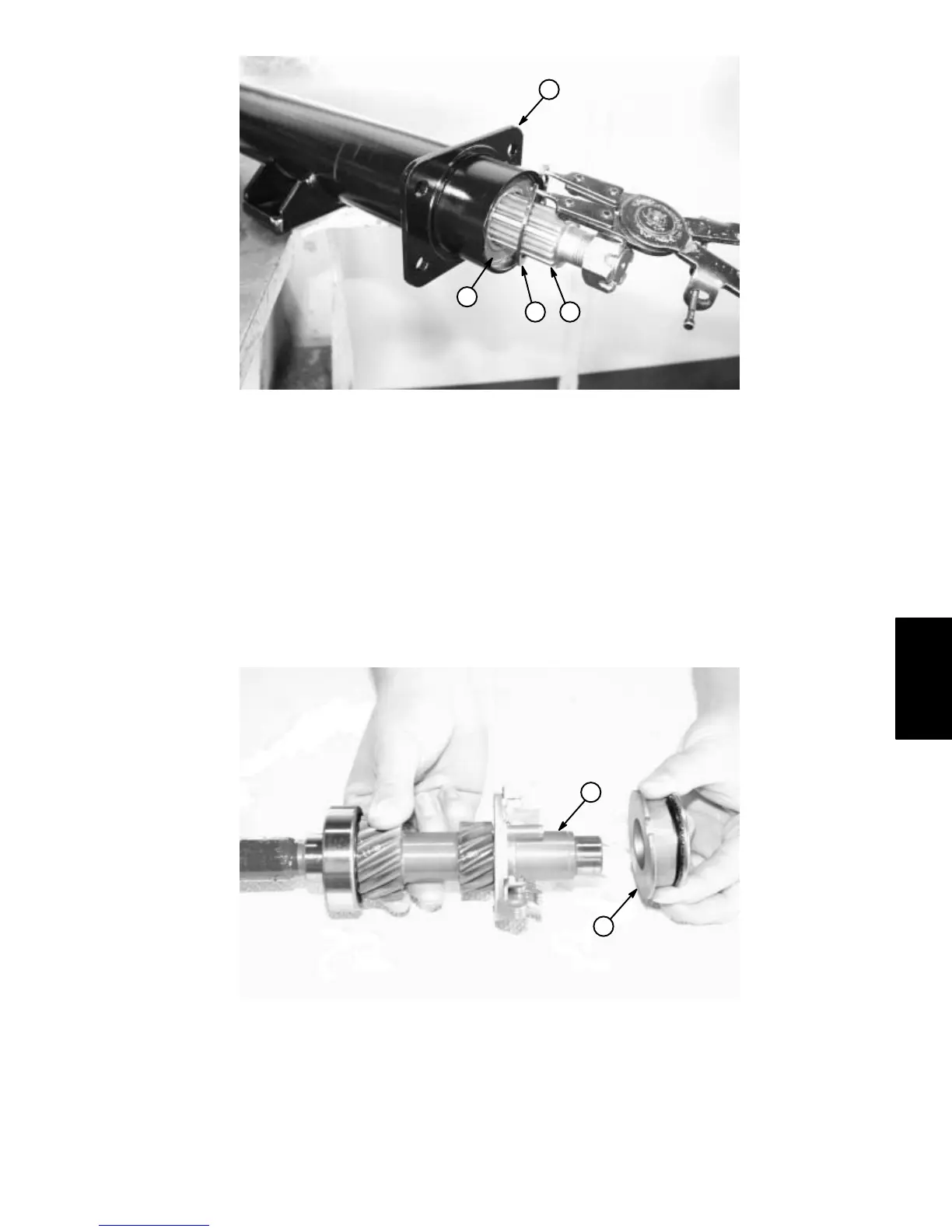

1. Snap ring
2. Axle case
3. Axle shaft
4. Ball bearing
Figure 38
2
31
4
IMPORTANT: Do not reuse snap ring. Discard and
replace ring with new one.
B. Remove snap ring from the axle case. Remove
axle shaft from case.
IMPORTANT: When replacing ball bearings, both
ball bearings must be replaced as a set.
C. Ball bearing roller balls must be free of deforma-
tion and scoring. Ball bearing must spin freely and
have minimum axial play. Replace ball bearing as
necessary.
4. Disassemble input shaft assembly.
1. Input shaft 2. Governor sleeve
Figure 39
1
2
A. Remove governor sleeve from the input shaft.
Drive
Train
