Workman 1100/2100/2110
Drive Train
Page 5 – 38

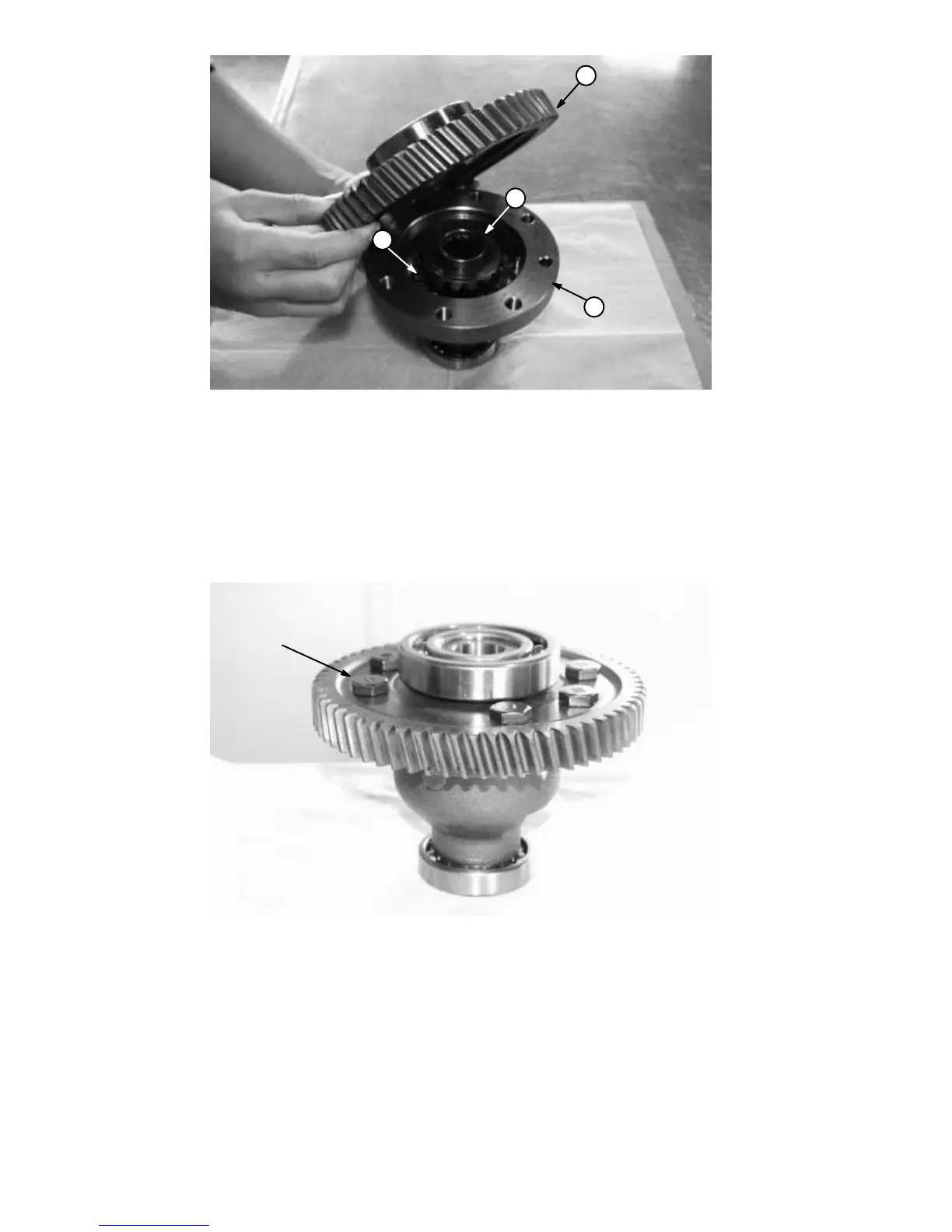

1. Side gear
2. Pinion gear
3. Gear 62
4. Differential case
Figure 61
4
3
1
2
D. Install remaining side gear to the pinion gears.
E. Secure gear 62 to the differential case with bolts.
Torque bolts from 40 to 45 ft–lb (54 to 61 N–m) in a
criss–cross pattern.
Figure 62
40 to 45 ft–lb
(54 to 61 N–m)
IMPORTANT: The length from the outer most side of
each ball bearing must be from 123.3 to 124.0 mm
(Fig. 58).
F. If ball bearings were removed, press new ball
bearings onto differential case and gear 62.
G. The differential assembly should appear as
above when assembled.
