Toro 07253 Service Manual

Workman 1100/2100/2110
Drive Train
Page 5 – 42

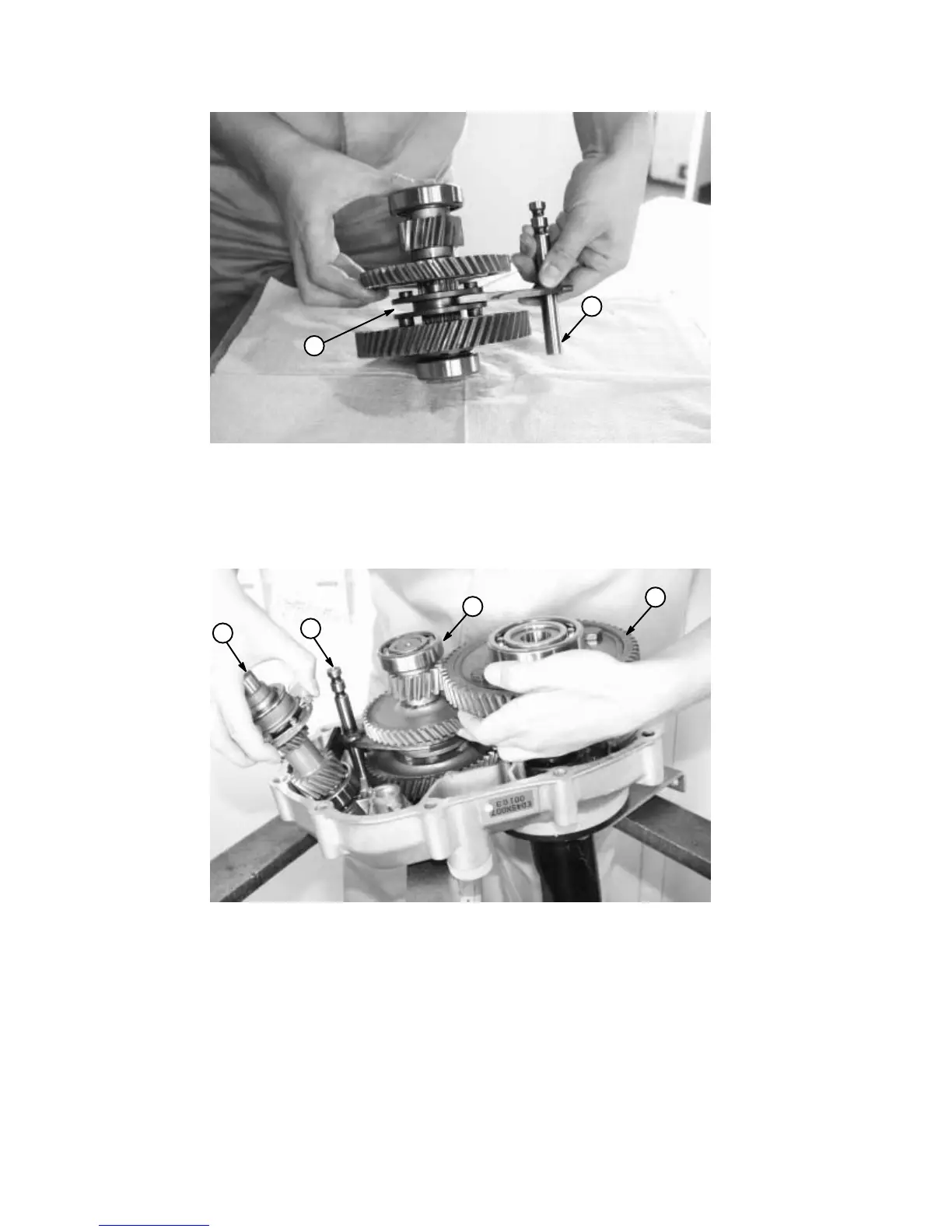

6. Install input shaft, center shaft, and differential as-
semblies to the case.
1. Shift shaft 2. Clutch groove
Figure 69
1
2
A. Insert fork of the shift shaft to the clutch groove of
the center shaft assembly.
1. Center shaft assembly
2. Shift shaft
3. Input shaft
4. Differential assembly
Figure 70
3
2
1
4
B. Replace oil seals for the input and selector shafts
on the case (LH) if cracked, nicked, or distorted such
that they would not hold a proper seal.
IMPORTANT: Make sure not to damage the oil seal
when installing the input shaft.
C. Install center shaft assembly with shift shaft and
differential assembly. Then, install input shaft as-
sembly. Lower differential assembly, center shaft as-
sembly, and input shaft assembly into the case at the
same time.
