Toro EVOLUTION Series User Manual

7
Zone Expansion Module Installation
e EVOLUTION
TM
controller can be expanded using the optional 4-zone (EMOD-4) or 12-zone (EMOD-12) modules to add more
zones to the system.
.PEVMF*OTUBMMBUJPO
A
A
B
B

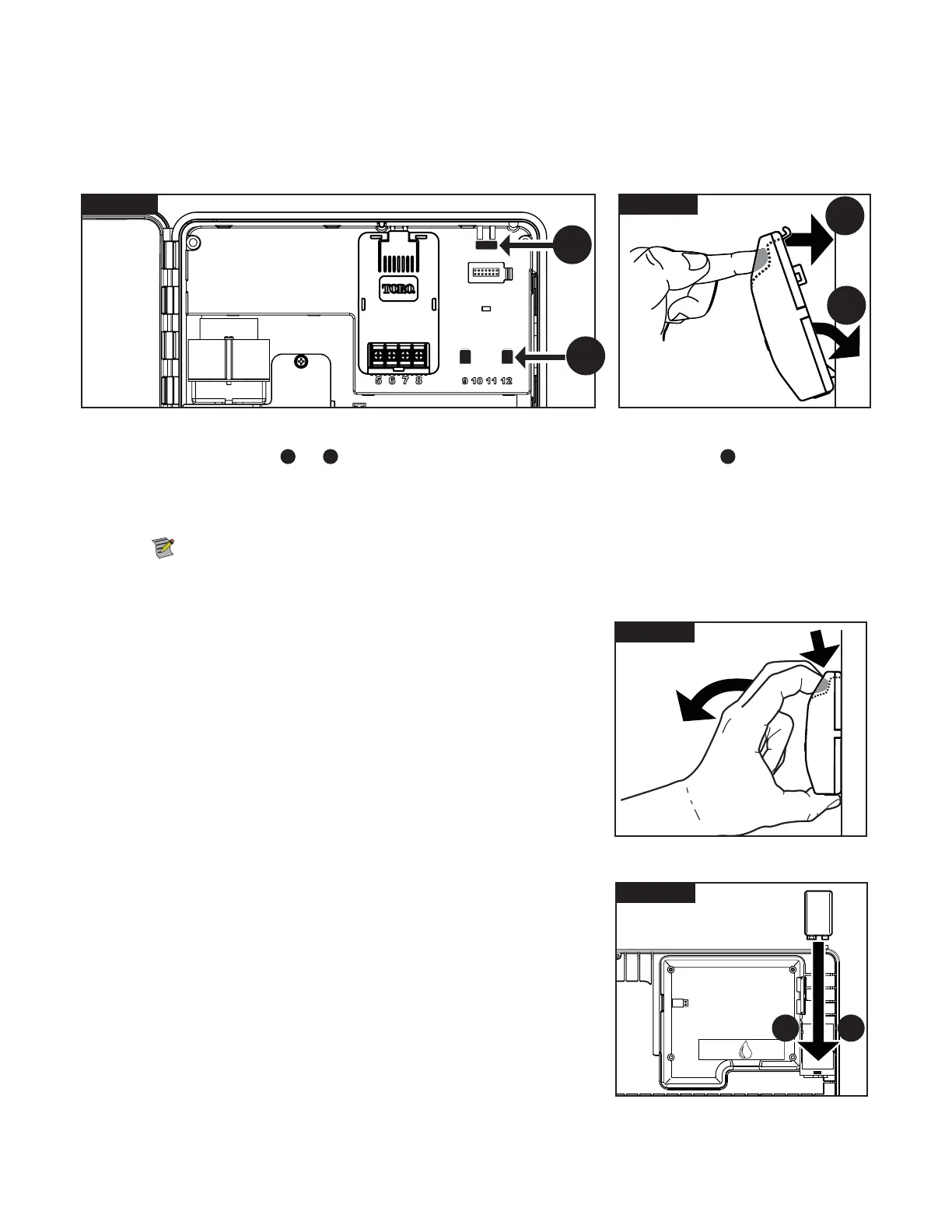

Figure 9 Figure 10
Step 1 – Open the EVOLUTION
TM
controller door and control panel to access the internal components.
Step 2 – Locate the module slot
A
and
B
. Install the module by placing the bottom hooked standos into slot
A
and push the module
tab towards the cabinet until a positive click is achieved. e click indicates that the module’s retaining tab is fully engaged.
Once installed, the EVOLUTION
TM
controller will be able to read the additional zones and will make them available for
scheduling.
Note: If installing only one four-station module (EMOD-4), it must be installed in the zone 5-8 module slot.
.PEVMF3FNPWBM
Step 1 – Open the EVOLUTION
TM
controller door and control panel to access the
Figure 11
internal componenents.
Step 2 – Hold the module as shown in 'JHVSF. Press the retaining tab while
pulling the module away from the cabinet.
Battery Installation
Figure 12
e EVOLUTION
TM
controller uses a 9-VDC battery to retain schedule parameters during
an extended period of power outages.
Step 1 – Open the EVOLUTION
TM
controller door and control panel to access the
internal components.
Step 2 – Locate the battery compartment at the back of the control panel.
Step 3 – Align the polarity (– and +) of the battery then slide it into the battery
compartment as shown in 'JHVSF.
+–

Toro EVOLUTION Series Specifications

General

Weather Sensor Compatibility	Yes
Output Voltage	24 VAC
Display	LCD
Wi-Fi Connectivity	Yes (with optional Wi-Fi module)
Mounting	Indoor/Outdoor
Maximum Load Current	0.5 amps per station
Operating Temperature	-40°C to 60°C
Enclosure Rating	NEMA 3R
Weight	Varies by model
Zones	4 to 16 (in modules of 4)
